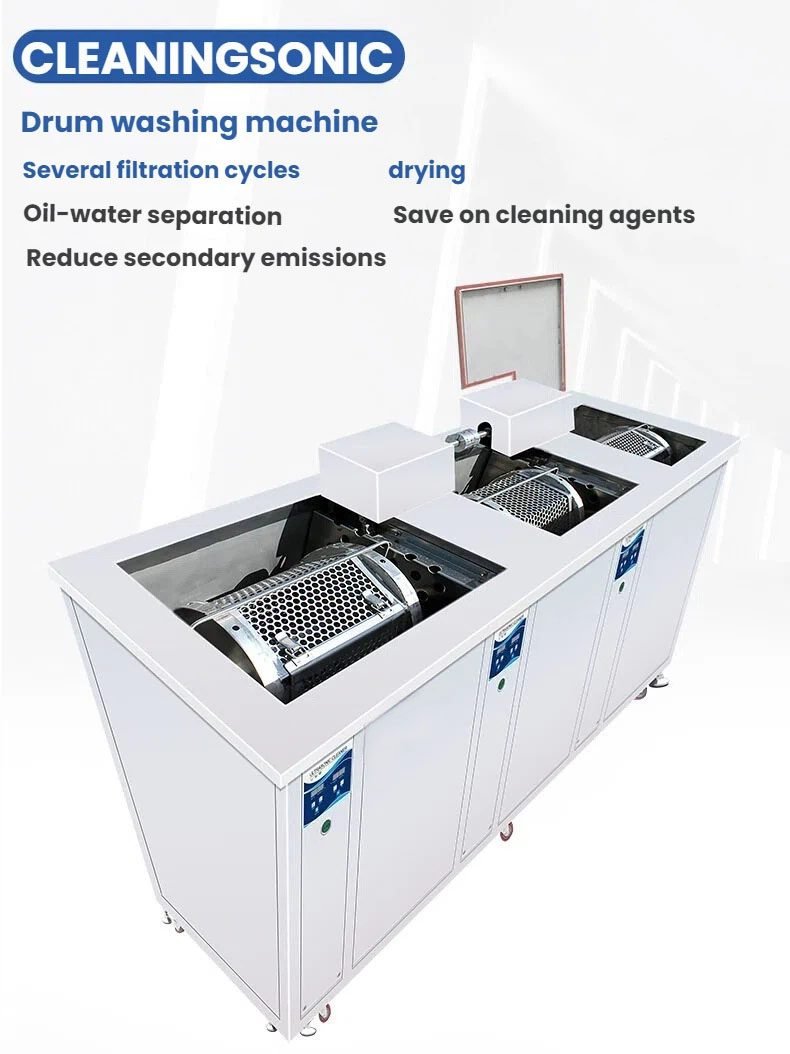

Rotary Drum Washing Machine – Integrated Filtration Circulation System, Forced-Air Drying, and Oil-Water Separation for Industrial Component Cleaning
Multi-Stage Rotary Drum Parts Washer · Several Filtration Cycles · Integrated Drying Chamber · Oil-Water Separation Technology · Saves Cleaning Agents · Reduces Secondary Emissions

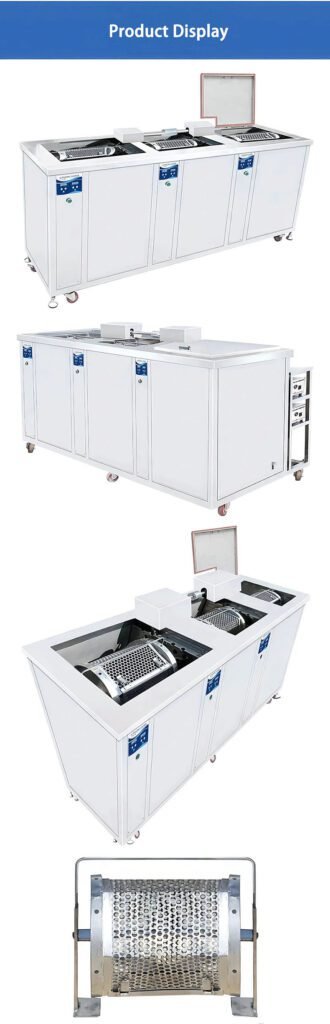

Product Overview – Advanced Rotary Drum Cleaning System
The rotary drum washing machine from CLEANINGSONIC is an industrial-grade cylindrical parts washer designed for high-throughput cleaning of bulk components, small-to-medium parts, and complex geometries. Unlike conventional ultrasonic tanks that require basket loading, this drum-type cleaning system uses a rotating drum mechanism to continuously tumble parts through cleaning, rinsing, and drying stages.
This multi-stage filtration circulation drum cleaner integrates three essential functions in one compact system:
Function
Benefit
Several filtration cycles
Continuously removes floating oil, suspended solids, and microscopic particles – extends cleaning solution life significantly
Integrated drying chamber
Forced-air drying – parts emerge completely dry, ready for assembly or packaging
Oil-water separation technology
Separates hydrocarbon contaminants from cleaning solution – reduces waste disposal costs and environmental impact
Why choose this rotary drum industrial parts washing system:
✅ Saves cleaning agents – Filtration circulation and oil-water separation extend solution life 3-5x longer than conventional systems
✅ Reduces secondary emissions – Less contaminated solution discharge means lower environmental compliance costs
✅ Several filtration cycles – Multi-pass filtration ensures consistently clean solution throughout the operating shift
✅ Integrated drying – No need for separate drying equipment or manual air blowing
✅ Heavy soil capability – Designed for heavy oil removal, heavy rust removal, wax removal, and rosin removal
✅ High-throughput design – Rotary drum action processes bulk parts faster than basket-style cleaners
✅ Customizable configuration – Tank size, frequency options, power ratings, voltage, and plug types all available
Why Choose CLEANINGSONIC – Manufacturer of Rotary Drum Cleaning Systems
We are the manufacturer. Not a trading company. Every rotary drum industrial cleaner is designed, engineered, and built in our Shenzhen factory.
Advantage
Value to You
15+ years R&D experience
Deep engineering expertise in rotary drum cleaning technology
1-year warranty
Full parts and technical support on your drum washing system
Lifetime maintenance
Ongoing factory support for the service life of your equipment
Factory direct sales
No middleman markup – best pricing on rotary drum parts washers
Independently developed circuit boards
Proprietary generator design for reliable, consistent ultrasonic output (where applicable)
Precision manufacturing
Thickened SUS304/316 tanks, durable drum mechanism
Excellent word-of-mouth
Trusted by customers worldwide for heavy oil removal, rust removal, wax removal
Delivery time: 2-7 days for standard customizations of rotary drum cleaning equipment.
Professional Technical R&D Team – Free Design Solutions
CLEANINGSONIC maintains a dedicated R&D team with deep expertise in rotary drum filtration and drying systems. Every machine is backed by:
Free design solutions – Our engineers will propose the optimal configuration for your specific parts and contaminants (heavy oil removal, heavy rust removal, wax removal, rosin removal)
OEM / ODM capabilities – We build drum-type cleaning equipment for your brand, under your specifications
Flexible configuration – Mix and match filtration cycles, drying, oil-water separation, spraying, bubbling, lifting, agitation, condensation, slow pull, and PLC control
Flexible configuration options for your rotary drum parts cleaning system:
Optional Function
Description
Spray
1
Filtering cycle
Several filtration cycles for continuous particle removal (standard)
Drying
Forced-air drying chamber (standard)
Toss / Agitation
Enhanced mechanical action within the rotating drum
Bubbling
Air injection for gentle agitation of delicate parts
Lifting
Motorized hoist for loading/unloading heavy drum loads
Condensation
Vapor recovery for solvent-based cleaning applications
Slow pull
Controlled basket withdrawal for precision drying
PLC control system
Fully programmable cycles with touchscreen HMI
Customizable parameters for your drum washing system:
Parameter
Available Options
Inner tank size
Customizable based on your part dimensions and batch volume
Ultrasonic power
300W to 10,000W+ (where ultrasonic option is selected)
Ultrasonic frequency
20 / 25 / 28 / 40 / 68 / 80 / 168 / 180 / 200 kHz optional
Voltage
Single-phase 110V/220V or three-phase 380V
Tank material
SUS304 or SUS316 stainless steel

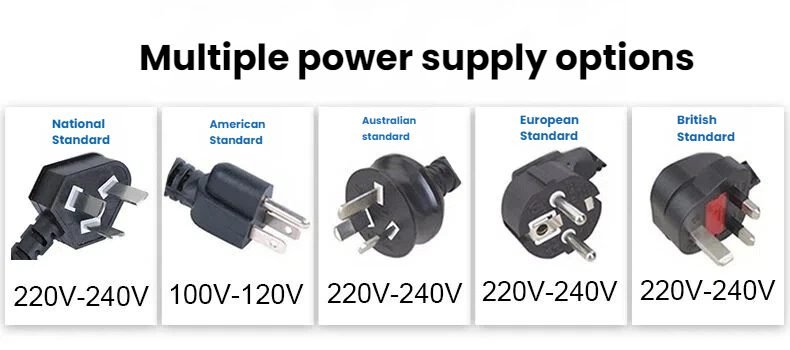

Plug type
Chinese, American, Australian, European, British standards
Other functions available: filtration, spraying, bubbling, drying, lifting, agitation, condensation, slow pull, PLC control system.
Filtration Cycles and Oil-Water Separation – Core Technology
Several Filtration Cycles – Continuous Solution Cleaning
The rotary drum industrial washing machine incorporates several filtration cycles that continuously clean the cleaning solution during operation:
Filtration Component
Function
Primary particulate filter
Captures suspended solids, metal fines, and debris down to 10-20 microns
Oil skimmer / separator
Removes floating hydrocarbon films and tramp oil from solution surface
Circulation pump
Continuously moves solution through the filtration loop
Return line
Returns filtered, clean solution to the drum tank
Benefits of several filtration cycles on your drum parts cleaner:
Benefit
Impact on Your Operation
Saves cleaning agents
Cleaning chemistry remains effective 3-5x longer than unfiltered systems
Reduces secondary emissions
Less contaminated solution discharge – lower environmental compliance costs
Consistent cleaning quality
Parts are not recontaminated by dirty solution
Less downtime
Fewer interruptions for draining and refilling tanks
Oil-Water Separation Technology
The integrated oil-water separation system is a key feature of this cylindrical industrial degreaser:
Function
Description
Separation chamber
Allows oil to rise and water to settle based on density differential
Oil discharge port
Captured oil can be drained separately for proper disposal
Clean water return
Reusable water-based solution returned to the cleaning tank
Environmental and cost benefits of oil-water separation:
Reduces secondary emissions – Less oily wastewater discharged to drains or treatment facilities
Saves cleaning agents – Water-based detergent remains usable for longer periods
Regulatory compliance – Helps meet stricter industrial wastewater discharge limits
Lower disposal costs – Separate oil waste is often less expensive to dispose of than mixed oily water
Section 6: Integrated Drying Chamber – Complete Wash-Dry Solution
The rotary drum washing system includes an integrated forced-air drying chamber as a standard feature:
Drying Parameter
Specification
Drying method
Forced hot air circulation with blower
Temperature
adjustable
Timer
adjustable
Completion alarm
Automatic audible alarm when drying cycle finishes
Benefits of integrated drying in your drum-type parts cleaning equipment:
Benefit
Explanation
Parts emerge dry
Ready for assembly, packaging, or coating immediately after cycle completion
Oxidation prevention
Immediate drying prevents flash rusting on ferrous components
No secondary handling
No need to transfer wet parts to separate drying equipment
Labor savings
Eliminates manual drying step (compressed air or towels)
Cleaning Performance – Heavy Soil Removal Capabilities
The rotary drum industrial cleaner is specifically designed for heavy oil removal, heavy rust removal, wax removal, rosin removal, and dust removal.
Contaminant Type
Removal Effectiveness
Typical Cycle Time
Notes
Heavy oil / grease
✅ Excellent
8-15 minutes
Cutting oils, drawing compounds, hydraulic fluids
Heavy rust / oxidation
✅ Very good
12-20 minutes
Surface rust, flash oxidation, scale (28kHz recommended)
Wax / buffing compound
✅ Good
8-12 minutes
Protective wax, polishing wax, mold release
Rosin / flux
✅ Good
5-10 minutes
Solder flux residue on electronic components
Dust / particulate
✅ Excellent
5-8 minutes
Metal fines, shop dust, polishing residue
Carbon deposits
✅ Very good
10-15 minutes
Engine carbon, combustion residue
Customer-reported results using this rotary drum parts cleaning system:
Result
Hardware parts
Heavy oil, dust
100% oil removal in 10 minutes
Auto parts
Heavy rust, grease
Complete rust elimination, dry finish
Motorcycle parts
Carbon, road grime
Clean metal, ready for reassembly
Filters
Sludge, trapped particles
Restored to like-new condition
Circuit boards
Rosin flux residue
Clean, conductive pads – no manual brushing
Medical tools
Protein residues, polishing compounds
Sterile-ready cleanliness
Laboratory supplies
Chemical residues, contamination
Clean, reusable condition

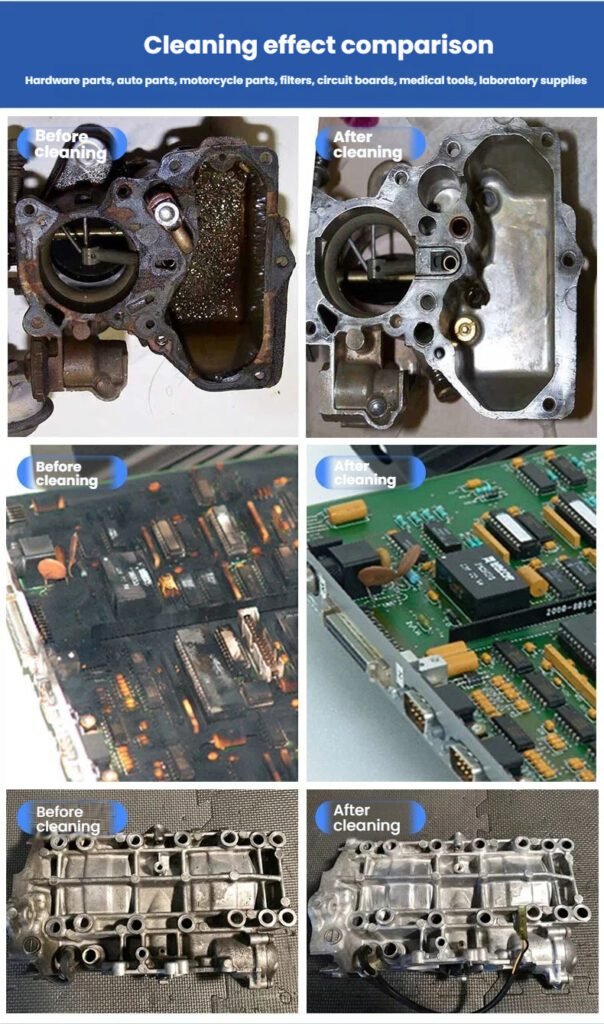

Cleaning Effect Comparison – Before and After
The rotary drum washing machine delivers exceptional cleaning results across a wide range of industrial components. Customer-submitted feedback images consistently show complete contaminant removal.
Before Cleaning
After Cleaning with Rotary Drum System
Heavy oil coating on hardware parts
Clean, oil-free surface
Visible rust on auto parts
Bare metal restored
Wax residue on polished components
Bright, residue-free finish
Rosin flux on circuit boards
Clean, conductive pads
Sludge and debris on filters
Restored, reusable condition
The rotary drum action combined with several filtration cycles and oil-water separation ensures:
Consistent results batch after batch
No recontamination from dirty solution
Dry parts ready for next process step
Reduced chemical consumption and waste disposal

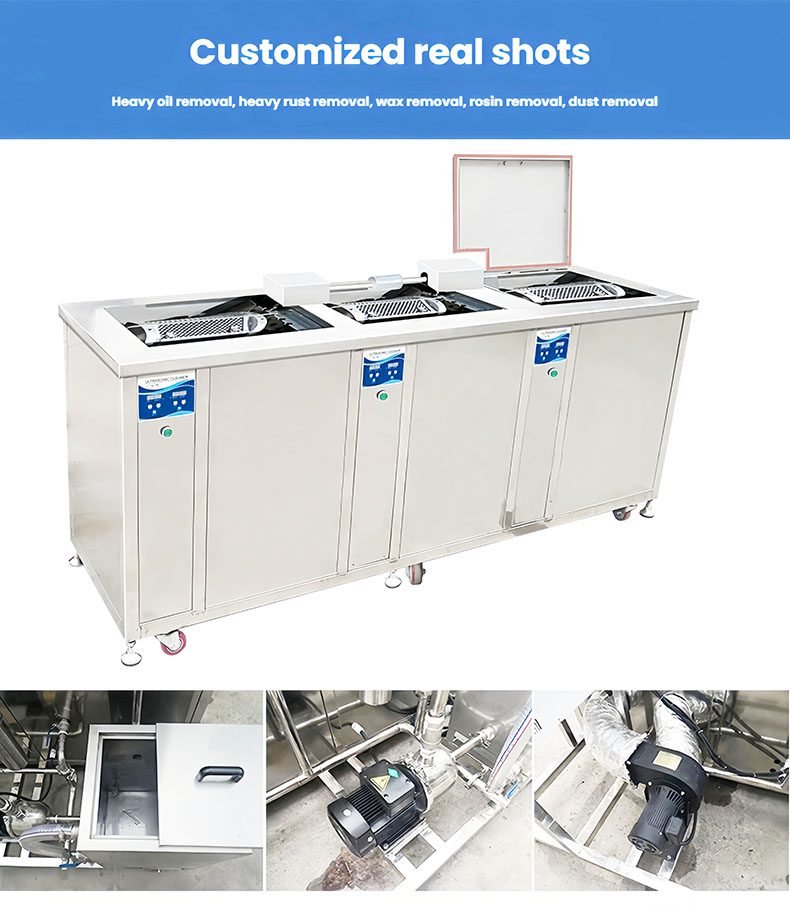

Customized Real Shots – Customer-Customized Models
CLEANINGSONIC has delivered customized rotary drum cleaning machines to customers across diverse industries. Examples include:
Industry
Customization
Application
Bowling equipment maintenance
Specialized drum geometry for bowling balls and pins
Wax and oil removal
Automotive parts remanufacturing
Extended drum length for engine components
Carbon and heavy oil removal
Electronics recycling
Rosin-optimized filtration cycles
Flux residue elimination
Precision machining
High-pressure spray integration
Cutting fluid removal from bulk parts
Delivery time: 2-7 days for standard customizations of three-tank industrial ultrasonic cleaning equipment.

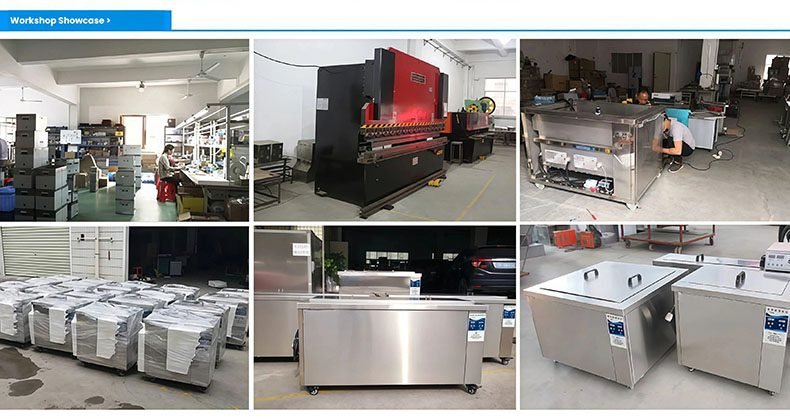

Workshop Showcase – Manufacturing Excellence
The rotary drum industrial parts washer is manufactured in CLEANINGSONIC’s Shenzhen production facility, where every drum-type cleaning system undergoes rigorous quality control:
Manufacturing Stage
Quality Validation Step
Raw material receiving
Verified SUS304/316 stainless steel
Precision fabrication
CNC cutting and forming – accurate drum and tank dimensions
Drum mechanism assembly
Rotating mechanism tested for smooth operation and balance
Filtration system integration
Pump and filter assembly tested for flow rate and particle capture
Generator assembly
Proprietary circuit board integration – functional performance validated
Comprehensive system testing
Filtration cycle test, oil-water separation test, drying test, timer verification
Final quality audit
Visual and operational inspection – before export packaging and shipment
Why Choose a Rotary Drum Washing Machine?
Feature
Benefit to Your Operation
Rotating drum action
Continuous tumbling – no parts remain stationary – all surfaces exposed to cleaning action
Several filtration cycles
Continuously clean solution – saves cleaning agents, reduces emissions
Oil-water separation
Extends solution life, lowers disposal costs, helps meet environmental regulations
Integrated drying
Parts emerge completely dry – no secondary handling
High-throughput design
Process bulk parts faster than basket-style cleaners
Heavy soil capability
Designed for heavy oil, heavy rust, wax, and rosin removal
Low operator attention
Load, set cycle, unload – minimal manual intervention
Customizable
Tank size, frequency, power, voltage, plug type – all tailored to your needs
Factory direct
No middleman markup – best value
Send Inquiry
Request Your Rotary Drum Washing Machine Quote
Request a Custom Quote – Rotary Drum Industrial Parts Washer (Filtration Cycles + Drying + Oil-Water Separation)
Share your cleaning requirements with our engineering team:
- What are the dimensions and materialof your components?
- What contaminantsneed to be removed? (heavy oil, heavy rust, wax, rosin, dust, or combination)
- What is your required throughput(kilograms or components per hour)?
- Do you need ultrasonic capabilityin the drum, or mechanical action only?
- Do you have any voltage or plug preference? (110V, 220V, 380V; any global plug standard)
Our engineering team will respond with:
Recommended configuration for your rotary drum cleaning system
Custom engineering drawing (if modifications are needed from standard designs)
Price quotation for the drum-type parts cleaning equipment
Delivery timeline (2-7 days for standard customizations)
Response time: Within 2 business hours
Hot Tags
#RotaryDrumWashingMachine #DrumTypePartsWasher #CylindricalIndustrialCleaner #IndustrialDrumWasher # rotarydrumwashingmachine #industrial-gradecylindricalpartswasher #drum-typecleaningsystem #multi-stagefiltrationcirculationdrumcleaner #rotarydrumindustrialpartswashingsystem #rotarydrumindustrialcleaner #drumwashingsystem #rotarydrumpartswashers #rotarydrumcleaningequipment #drum-typeindustrialpartswasher #rotarydrumindustrialcleaningsystems #rotarydrumindustrialwashingmachine #drumpartscleaner #cylindricalindustrialdegreaser #rotarydrumwashingsystem #integratedforced-airdryingchamber #drum-typepartscleaningequipment #rotarydrumindustrialcleaner #rotarydrumpartscleaningsystem #rotarydrumwashing machine #customizedrotarydrumcleaningmachine #rotarydrumsystem #rotarydrumindustrial partswashe #drum-typecleaningsystem #rotarydrumcleaningsystem #rotarydrumparts cleaningequipment #rotarydrumwashingmachine
