CSD Series Dual-Tank Ultrasonic Cleaner with Filtration & Drying | 28/40kHz | Industrial Parts Washer & Dryer
CSD Series dual-tank ultrasonic cleaner combines 28/40kHz ultrasonic cleaning, filter circulation, and hot air drying in one integrated system. 45L to 960L. Removes heavy oil, rust, wax, rosin. Continuous or 1-99 min operation. B2B factory direct.
CSD Series: Dual-Tank Ultrasonic Cleaner with Filtration & Drying – Integrated Cleaning, Filtration, and Drying in One Machine
28kHz Ultrasonic Cleaning System · 360° All-Around High-Efficiency Cleaning · Removes Stubborn Oil, Rust, and Wax · No Blind Spots
What Customers Gain from CSD Series (Value Proposition for B2B Buyers)
Reduce labor costs
One machine does cleaning + rinsing + drying. No manual transferring or air drying.
Increase throughput
Dual-tank design: clean in tank 1 while tank 2 dries the previous batch. Continuous workflow.
Eliminate rework
360° ultrasonic cavitation reaches blind holes, threads, and internal passages. No missed spots.
Extend tool/part life
Gentle but thorough cleaning removes corrosive contaminants without abrasive damage.
Lower chemical costs
Integrated filtration circulates and reuses cleaning solution – fewer bath changes.
Meet quality standards
Consistent, repeatable results. PLC-ready for ISO/audit traceability.
One supplier, one solution
No need to buy separate washers, rinsers, dryers. Fully integrated.
Factory-direct pricing
15+ years R&D manufacturer – no middleman markup.
Fast customization
2-7 day lead time for custom specs. Lifetime support.

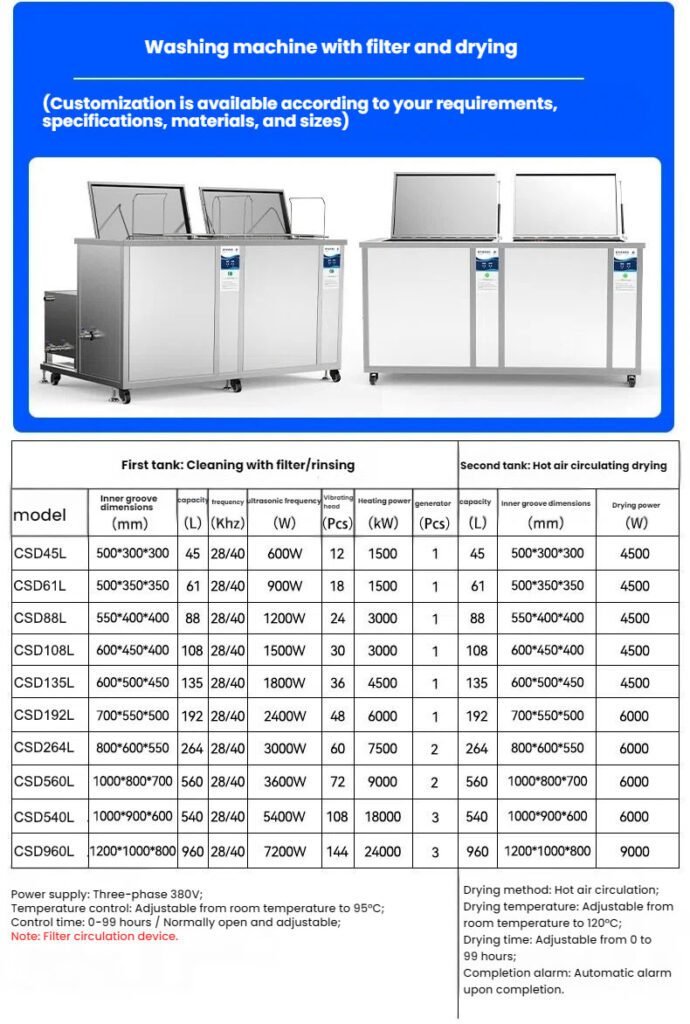

General specifications:
Power supply: Three-phase 380V (other voltages available on request)
Temperature control: Adjustable from room temperature to 95°C (cleaning tank)
Drying temperature: Adjustable from room temperature to 120°C
Time control: 0–99 hours or continuous operation (both tanks)
Completion alarm: Automatic audible alarm when cycle finishes
Filter circulation: Standard on cleaning tank
Drying method: Hot air circulation (even drying, no hotspots)
Product Overview – The Complete Cleaning + Drying Workstation
The CSD Series (Cleaning + Drying) is an integrated dual-tank industrial ultrasonic cleaner that combines:
Tank 1: Ultrasonic cleaning with filter circulation (continuous particle removal)
Tank 2: Hot air drying (adjustable up to 120°C)
This all-in-one design eliminates the need for separate rinsing stations, manual drying racks, or compressed air blow-off. Parts go in dirty – come out clean and dry – in a single automated workflow.
What makes the CSD series different from standard ultrasonic cleaners?
✅ Integrated drying – No waiting. No water spots. No secondary handling.
✅ Filter circulation – Cleaning solution stays clean longer. Less downtime for bath changes.
✅ Dual-tank efficiency – Load one batch while another cleans or dries.
✅ 28/40kHz dual frequency – Aggressive cleaning for heavy oil/rust, plus gentle option for precision parts.

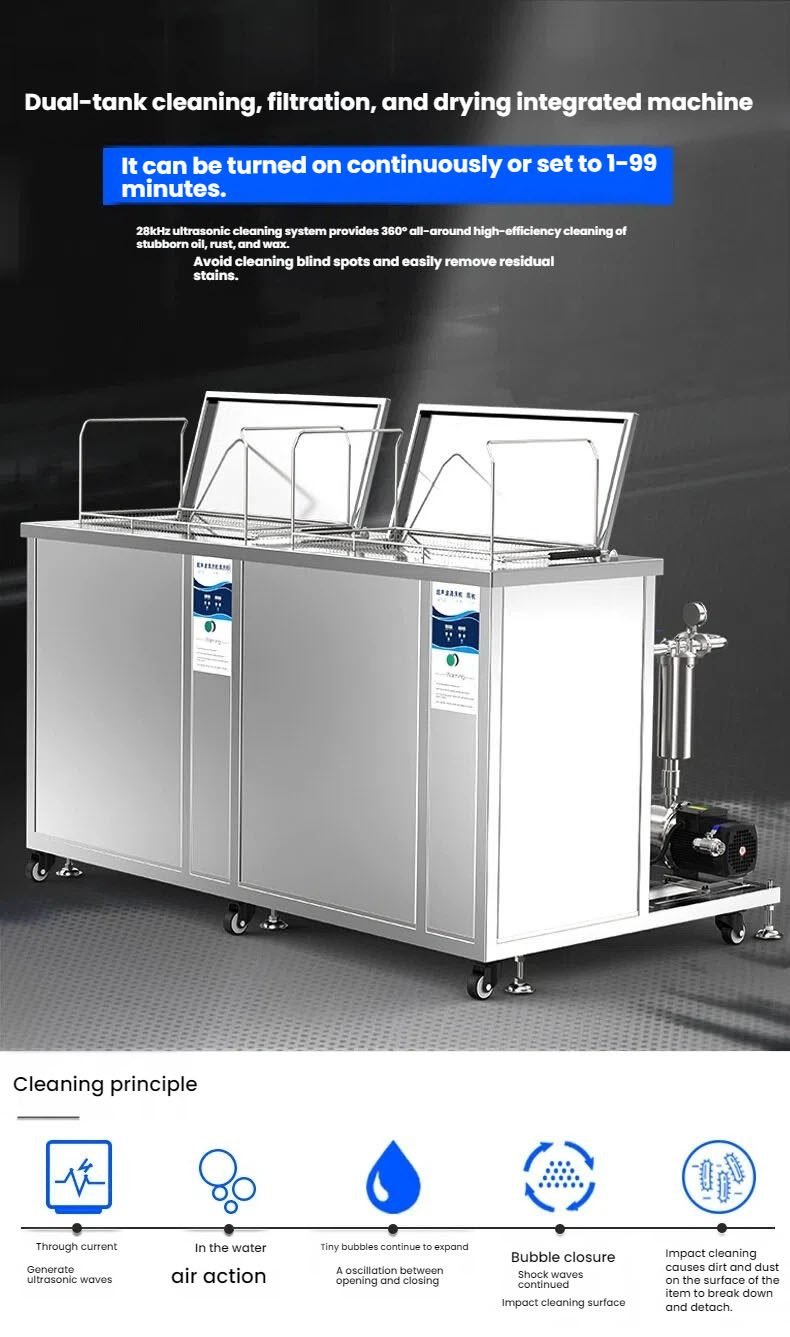

How the CSD Series Works – Cleaning Principle
The ultrasonic cleaning principle is simple yet powerful:
Electrical current passes through the ultrasonic generator
Generator produces high-frequency electrical signals (28kHz or 40kHz)
Signals are converted into mechanical vibrations by industrial transducers
Vibrations create millions of microscopic bubbles in the cleaning solution
Bubbles expand and implode violently (cavitation)
Each implosion generates shock waves that impact the cleaning surface
Shock waves break down and detach dirt, oil, rust, wax, and dust
Result: 360° all-around cleaning that reaches blind holes, internal passages, threads, and complex geometries – no cleaning blind spots.
Why 28kHz + 40kHz?
28kHz: Larger, more energetic bubbles – best for heavy oil, heavy rust, thick carbon, and large castings
40kHz: Smaller, gentler bubbles – best for precision parts, mixed loads, and general industrial cleaning

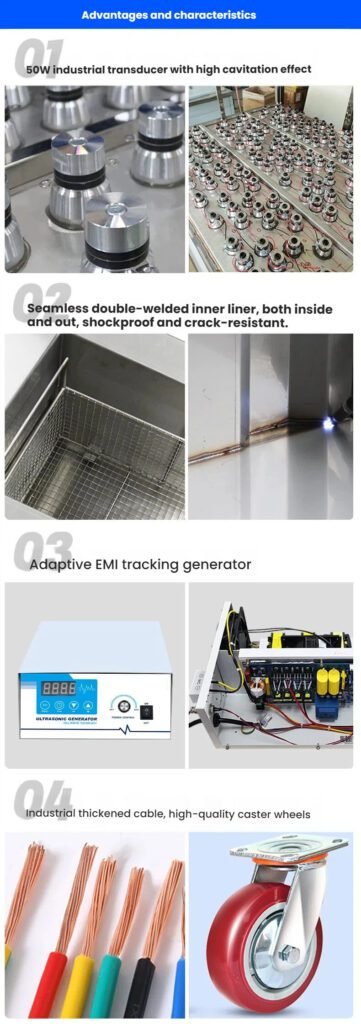

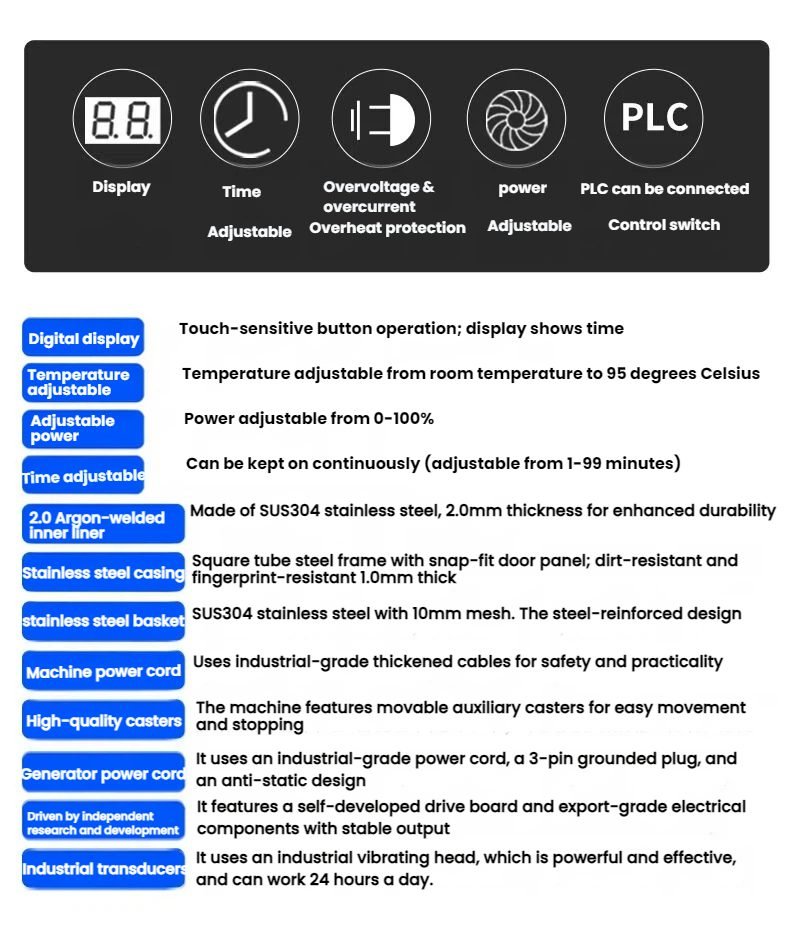

Key Advantages & Engineering Features
Industrial Transducers – 50W High Cavitation Effect
50W per transducer – powerful cavitation for heavy soils
Bonded with high-temperature epoxy – no debonding under continuous use
24/7 rated – designed for production environments
Seamless Double-Welded Inner Liner
Inside + outside welding – shockproof and crack-resistant
2.0mm thick SUS304 stainless steel – thicker than standard tanks (most are 1.5mm)
No hidden crevices for bacteria or contaminants
Adaptive EMI Tracking Generator
Automatically tracks frequency changes due to load, temperature, and solution variation
Maintains optimal cavitation efficiency at all times
Power adjustable 0-100% – fine-tune intensity for different parts

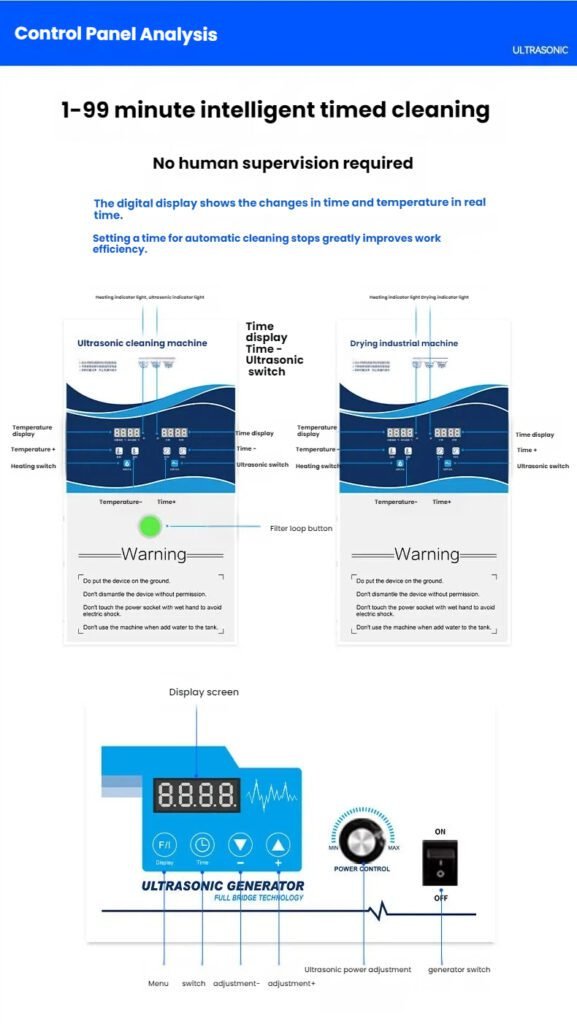

Digital Display with Touch-Sensitive Controls
Clear LED display – shows time, temperature, and status
Touch-sensitive buttons – easy to operate with gloves
Time setting: 1-99 minutes or continuous ON
Temperature setting: Ambient to 95°C
Power adjustment: 0-100% linear control
Safety & Protection Features
Overvoltage protection – protects generator from power surges
Overcurrent protection – prevents transducer damage
Overheat protection – automatic shutdown if temperature exceeds safe limits
PLC ready – can be integrated into automated production lines
Construction Quality
Component
Specification
Benefit
Inner liner
2.0mm SUS304, argon welded
2x thicker than standard tanks – longer life
Casing
1.0mm stainless steel, snap-fit panels
Dirt-resistant, fingerprint-resistant, easy maintenance
Basket
SUS304, 10mm mesh, reinforced frame
Holds heavy parts without bending
Machine power cord
Industrial-grade thickened cable
Safe for high current, abrasion resistant
Generator power cord
3-pin grounded plug, anti-static design
Safe for industrial environments
Casters
High-quality moving casters with brakes
Easy positioning, stable during operation
Frame
Square tube steel frame
Rigid, vibration-dampening
Drying System – Hot Air Circulation
The integrated drying tank uses forced hot air circulation for fast, even drying:
Parameter
Specification
Drying method
Hot air circulation (fan + heating element)
Temperature range
Ambient to 120°C (adjustable)
Time range
0-99 hours or continuous
Drying power
4500W – 9000W depending on model
Airflow
Even distribution – no hotspots
Completion alarm
Automatic buzzer when cycle ends
Why integrated drying matters for B2B customers:
❌ No more: Waiting for parts to air dry / Using compressed air (labor intensive) / Water spots causing rejections
✅ Instead: Load → clean → dry → unload. Ready for assembly or packaging immediately.
Filter Circulation System
The cleaning tank includes a filter circulation system that:
Continuously removes particles – suspended dirt, metal fines, and debris are filtered out
Extends solution life – cleaning chemistry stays effective 3-5x longer
Reduces chemical costs – fewer bath changes, less chemical purchases
Improves cleanliness – parts are not recontaminated by dirty solution
How it works:
Cleaning solution is pumped from the tank → passed through a replaceable filter cartridge → returned to the tank. Particles as small as 10-20 microns are captured.
Applications – What Can the CSD Series Clean?
Heavy Oil Removal
Cutting oil, drawing oil, tapping oil, stamping lubricants
Hydraulic oil, gear oil, motor oil
Wire EDM sludge
Heavy Rust Removal
Surface rust, corrosion, oxidation
Casting scale, heat treat scale
Wax Removal
Polishing wax, buffing compound
Mold release wax, protective wax coating
Rosin & Flux Removal
Solder flux, rosin residue (electronics)
Adhesive residue
Other Contaminants
Carbon deposits
Dust, fine particles
Coolant residue

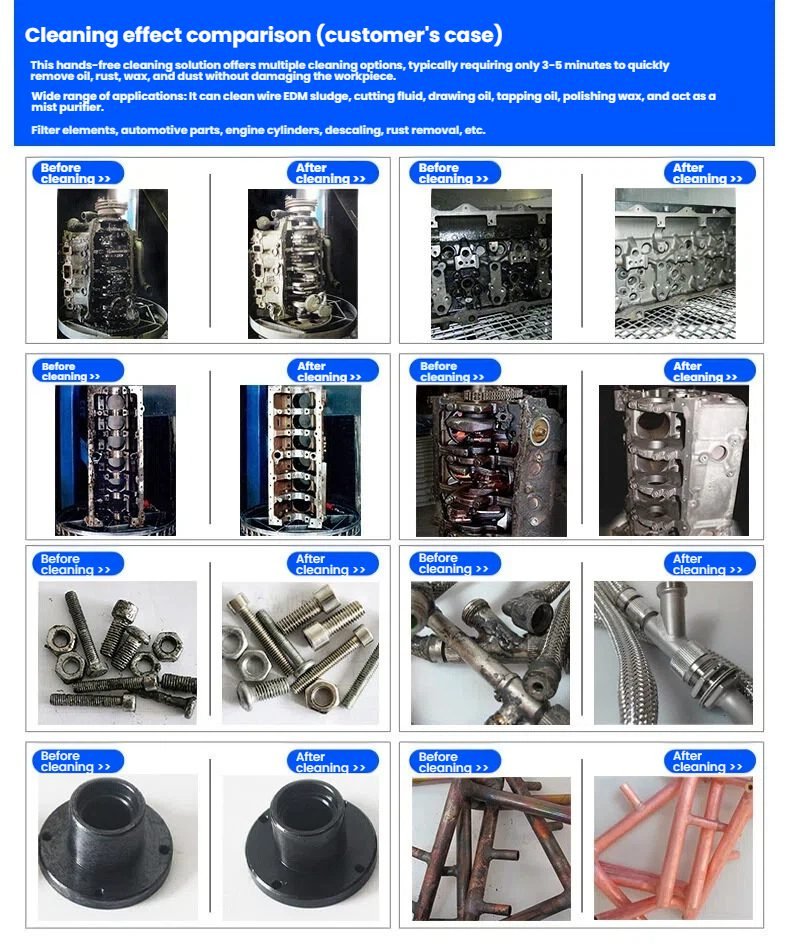

Specific Parts (Customer Case Examples)
Industry
Parts Cleaned
Contaminant
CSD Model Used
Automotive remanufacturing
Engine cylinders, cylinder heads
Carbon, oil, rust
CSD360L
Die casting
Molds, dies
Release agent, wax
CSD192L
Electronics assembly
PCBs, connectors
Rosin flux
CSD88L (with 40kHz)
Precision machining
Machined components
Cutting fluid, chips
CSD108L
Wire EDM
EDM parts
EDM sludge, dielectric residue
CSD45L
Maintenance & repair
Filter elements, hydraulic parts
Sludge, varnish
CSD264L
Metal finishing
Polished parts
Polishing wax, compound
CSD135L

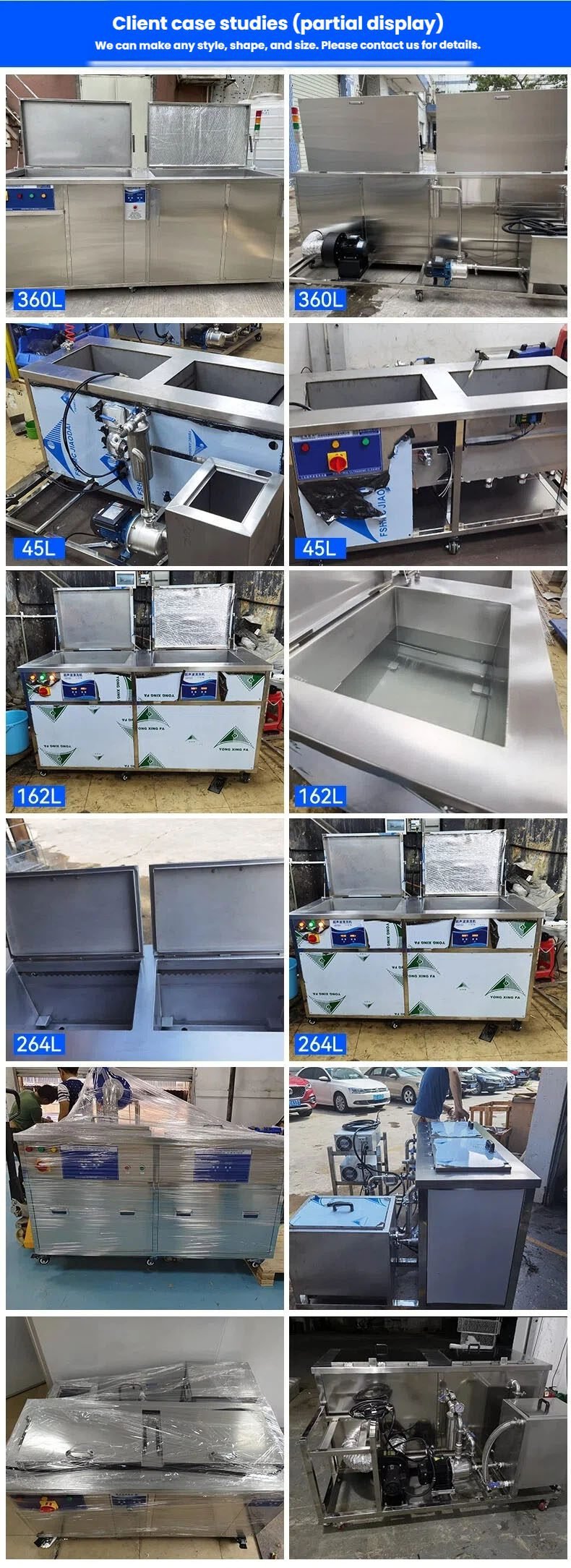

Client Case Studies (Partial Display)

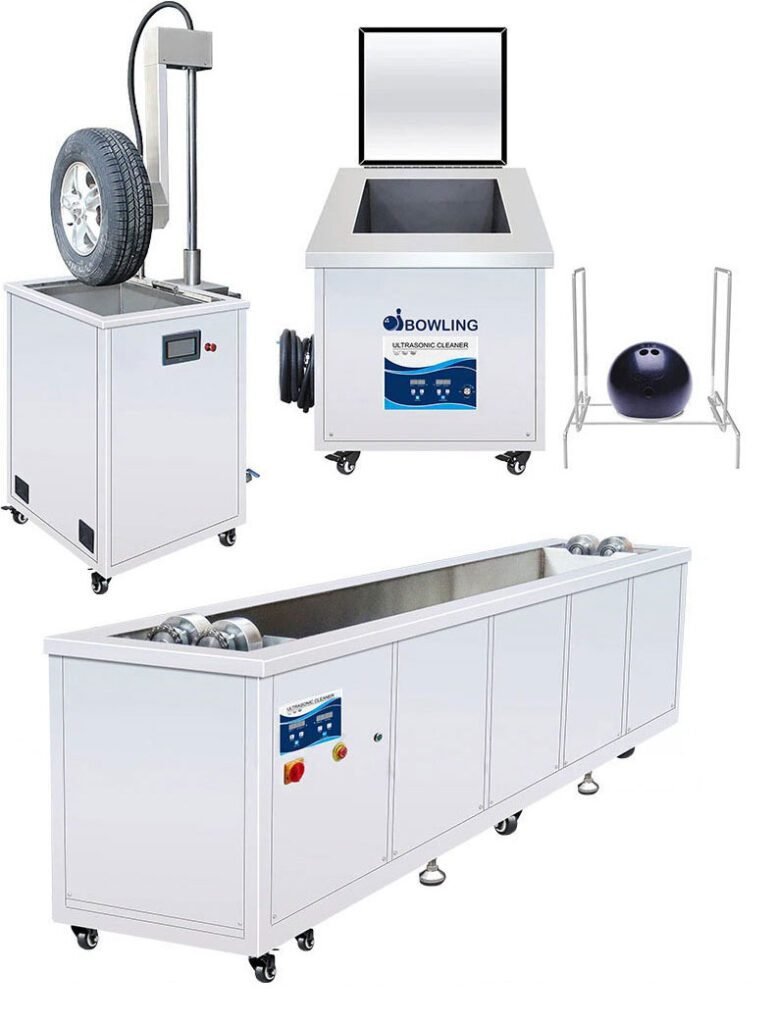

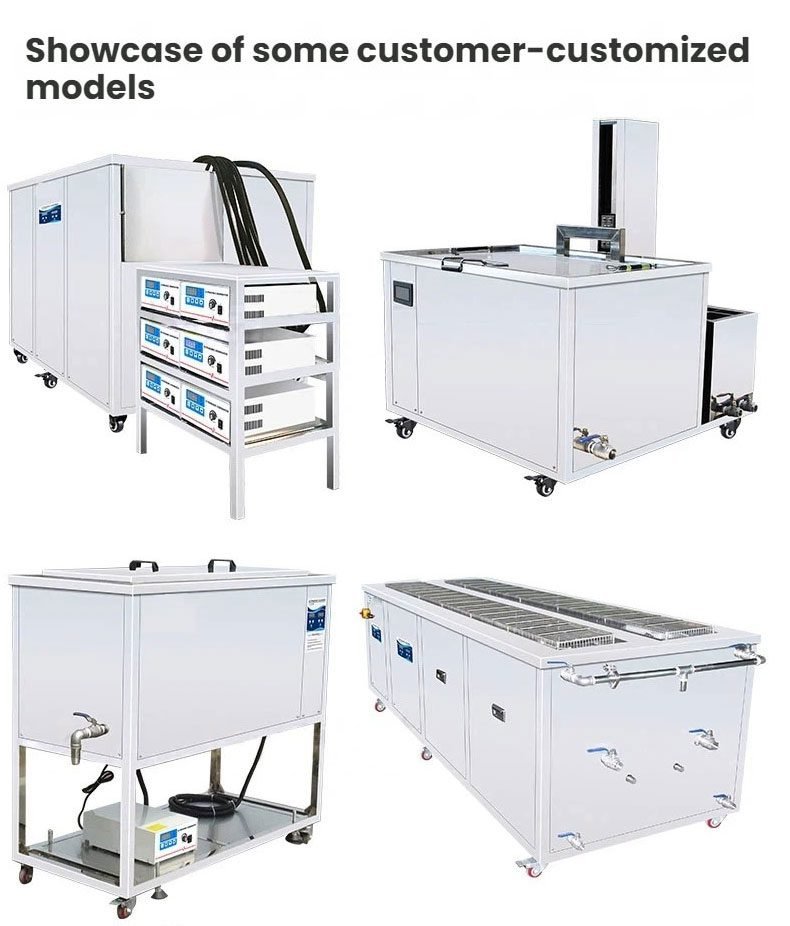

We can make any style, shape, and size. Contact us for custom dimensions, special frequencies, or multi-tank configurations (single-tank, dual-tank, triple-tank, or fully automatic multi-tank systems).

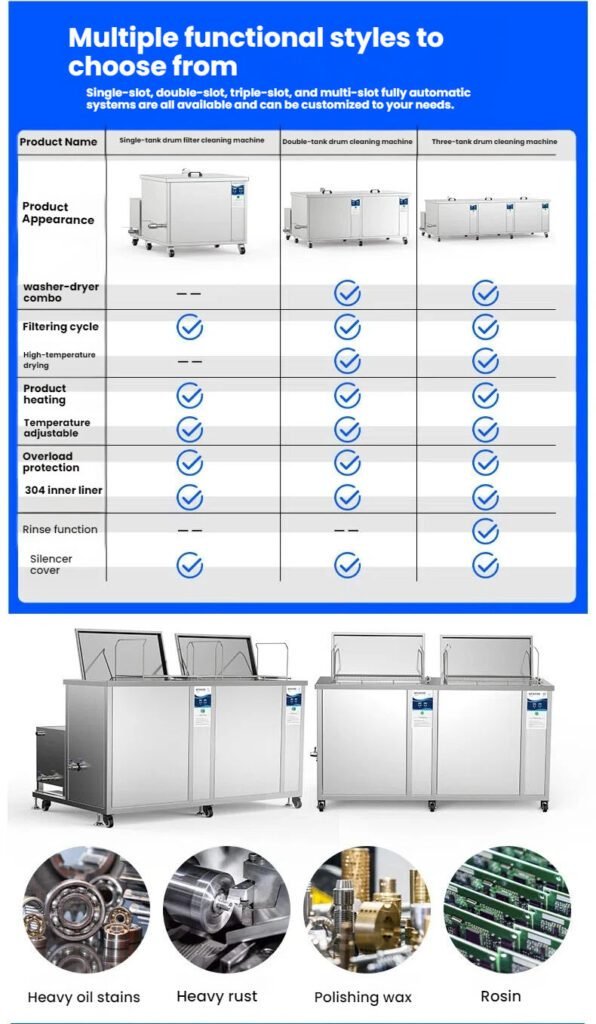

Multiple Functional Styles – Choose Your Configuration
CLEANINGSONIC offers multiple configurations beyond the CSD dual-tank series:
Product Type
Description
Best For
Single-tank drum filter cleaning machine
One tank with filtration only
Simple cleaning, no drying needed
Double-tank drum cleaning machine
Two tanks (wash + rinse or wash + dry)
Most manufacturing (CSD series)
Three-tank drum cleaning machine
Wash + rinse + dry
High-volume, critical cleanliness
Multi-tank fully automatic system
PLC-controlled, conveyor or lift transfer
Production lines, 24/7 operation
Optional add-on features for any configuration:
✅ Filtration circulation
✅ High-temperature drying
✅ Product heating (temperature adjustable)
✅ Overload protection
✅ 304 inner liner (standard)
✅ Rinse function (second tank)
✅ Silencer cover (noise reduction)

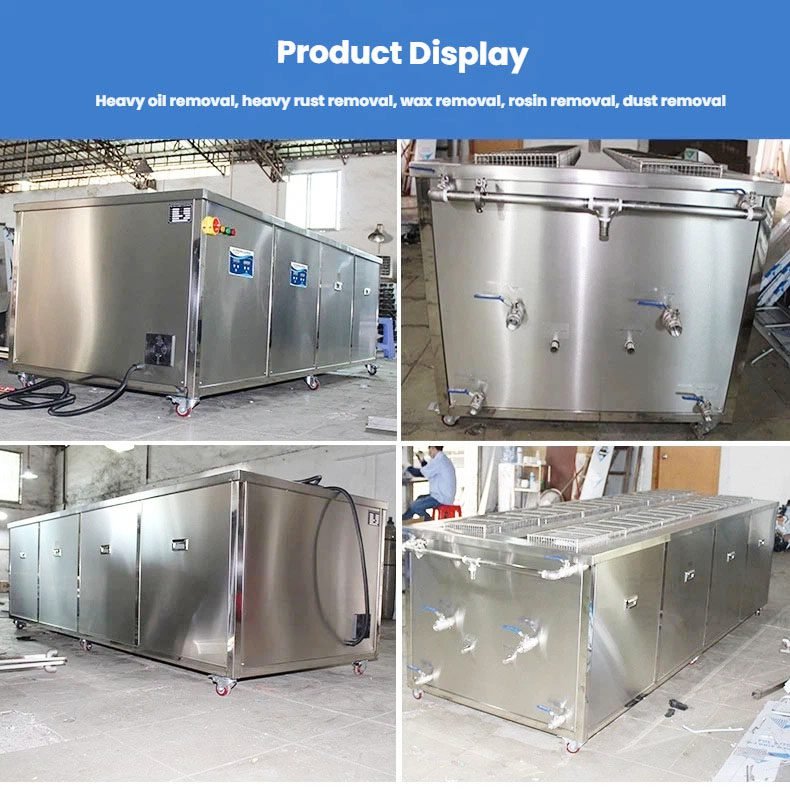

Contaminants handled across all configurations:
Heavy oil stains
Heavy rust
Polishing wax
Rosin (flux residue)
Dust and fine particles

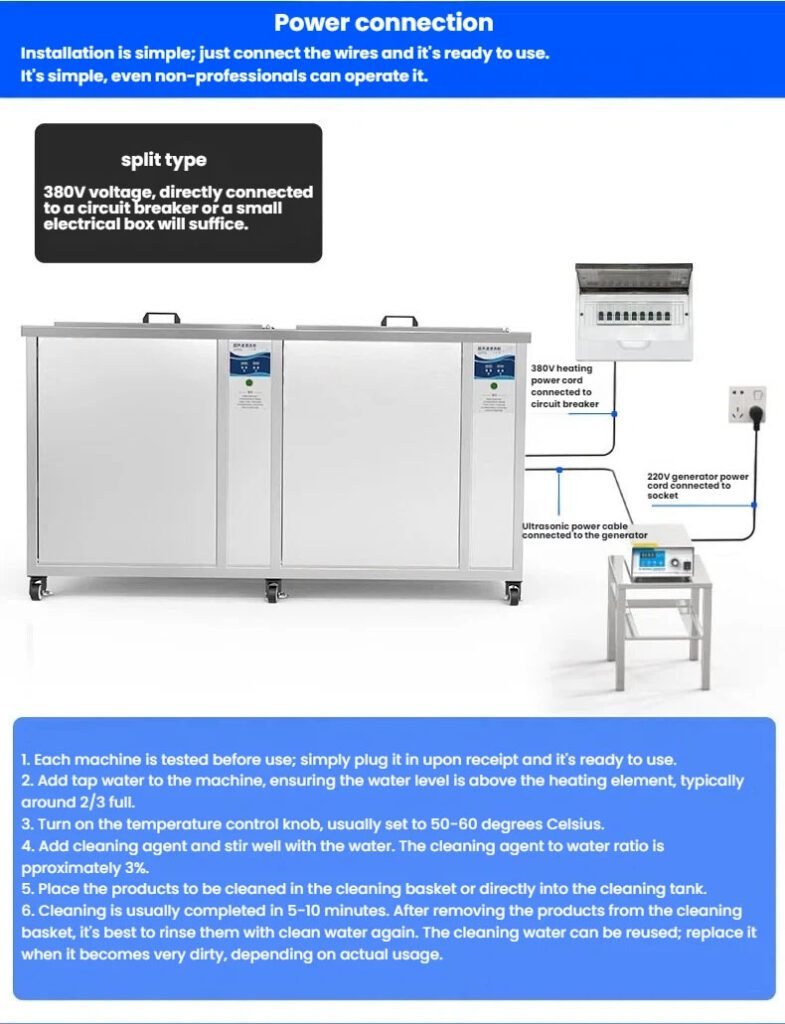

Power Connection & Electrical Requirements
Connection
Specification
Heating power connection
380V three-phase – connect directly to circuit breaker or electrical box
Generator power connection
220V single-phase – connect to standard socket
Ultrasonic power cable
Connect from generator to ultrasonic transducers
Simple wiring diagram:
380V heating power cord → circuit breaker
220V generator power cord → wall socket
Ultrasonic power cable → generator

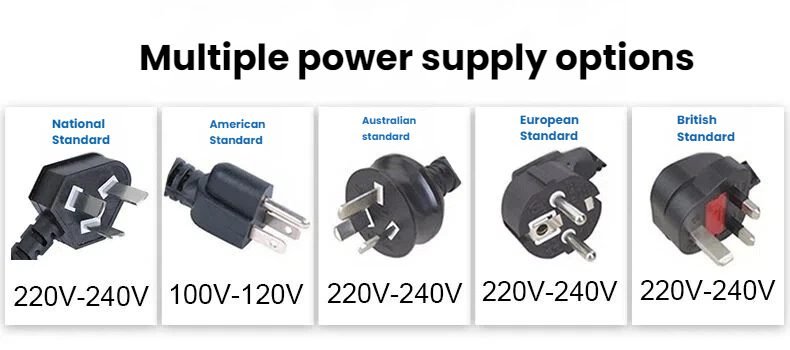

Note: For 110V or other voltage requirements, please specify at time of order.
Why Customers Choose CSD Series
Priority
How CSD Series Delivers
Quantifiable Benefit
Lower cost per part
Integrated cleaning + drying eliminates secondary handling
30-50% labor reduction
Higher throughput
Dual-tank: load one batch while another processes
2x parts per hour vs single tank
Zero rework
360° cavitation reaches all surfaces
<1% reject rate for contamination
Reduced chemical spend
Filter circulation extends solution life
40-60% less chemical purchases
Faster ROI
Factory direct + low operating costs
Typical payback: 6-12 months
Minimal downtime
Industrial transducers, thick tank, robust generator
>98% uptime
Future-proof
PLC-ready, modular design
Easy integration into automated lines
Why Choose CLEANINGSONIC? (Manufacturer Advantages)
Advantage
Details
15+ years R&D experience
Dedicated to ultrasonic cleaning equipment design and manufacturing
Factory direct
No middleman – better pricing, direct communication
Independently developed circuit boards
Custom generators optimized for our tanks
1-year warranty
Parts and labor
Lifetime maintenance
Ongoing factory support
Fast customization
2-7 day lead time for many custom orders
Global export experience
Shipped to North America, Europe, Asia, Middle East, South America
Send Inquiry
Request a Custom Quote for CSD Series – Dual-Tank Ultrasonic Cleaner with Filtration & Drying
Tell us your application:
Part size and weight
Contaminant type (heavy oil, rust, wax, rosin, etc.)
Desired throughput (parts per hour)
Any special requirements (voltage, automation, custom tank size)
Response time: Within 2 business hours
