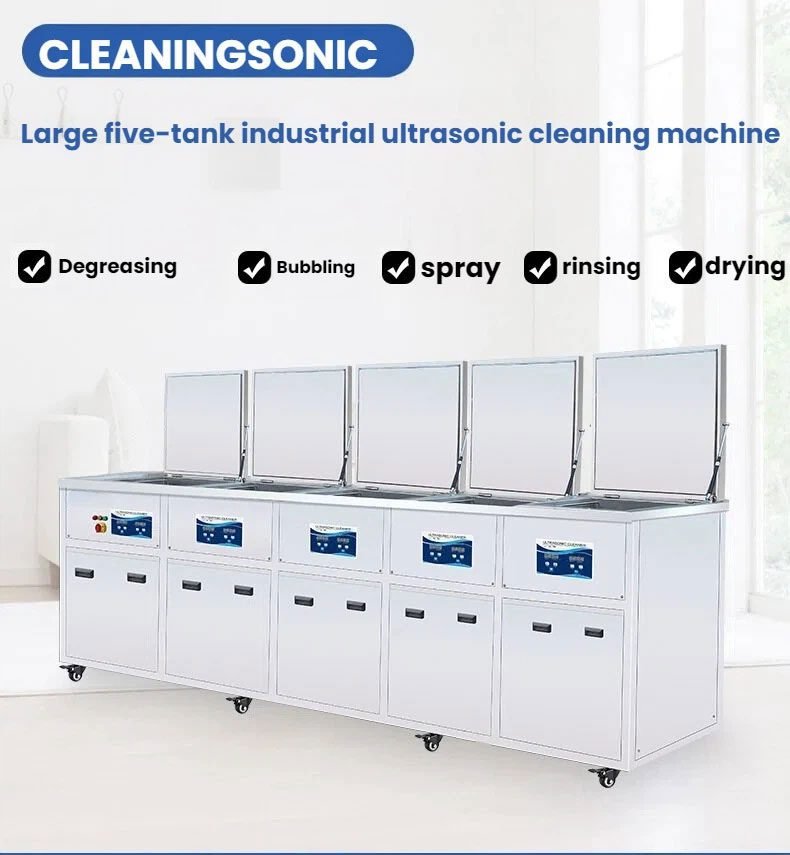

CS5F Series Five-Tank Industrial Ultrasonic Cleaning System | Degrease + Bubble + Spray + Rinse + Dry | 45L–960L
CS5F Series five-tank industrial ultrasonic cleaning system integrates degreasing, bubbling, spraying, rinsing, and drying in one complete line. 40kHz, 45L–960L capacities. Filtration, spray, bubbling, and drying on selectable stations. Fully customizable.
CS5F Series Five-Tank Industrial Ultrasonic Cleaning System – Complete Five-Station Processing Line for Degreasing, Bubbling, Spraying, Rinsing, and Drying
5-Stage Component Cleaning and Drying System · 40kHz Ultrasonic Frequency · 45L to 960L Capacities · Filtration Standard · Spray and Bubbling Integrated · Hot Air Drying Compartment · 1-99 Min / Continuous Timer · 20-95°C Temperature Range

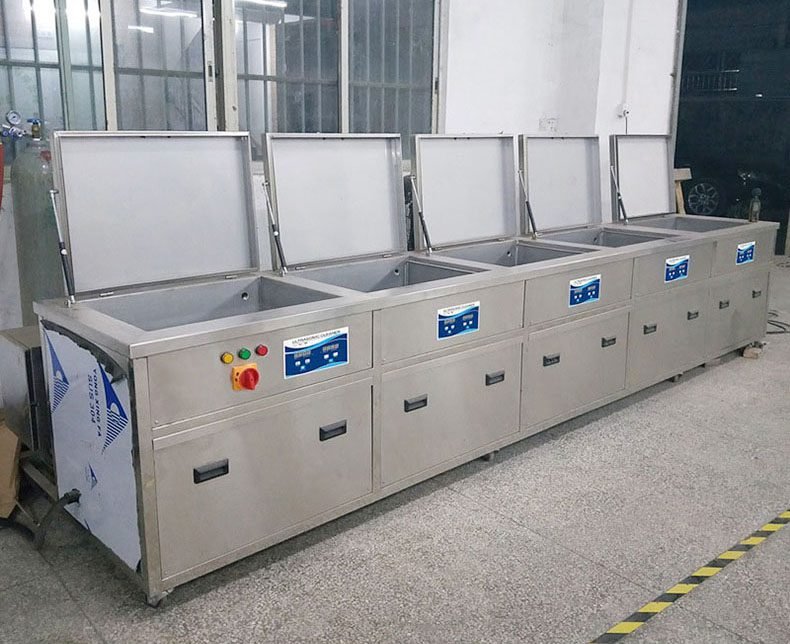

Product Overview – Complete Five-Station Cleaning Workstation
The CS5F Series five-tank industrial ultrasonic cleaning system from CLEANINGSONIC is a comprehensive multi-stage processing line designed for manufacturing environments requiring the highest level of cleaning completeness. This five-compartment industrial parts cleaning system integrates five distinct processing stations in one integrated footprint:
Station
Function
Key Feature
Tank One – Degreasing
Ultrasonic degreasing and soil removal
40kHz ultrasonic cavitation with heating and filtration – removes heavy oil, grease, and carbon
Tank Two – Bubbling
Gentle agitation cleaning
Air injection for delicate parts or secondary cleaning
Tank Three – Spraying
High-pressure spray rinsing
Forced spray removes loosened contaminants from complex geometries
Tank Four – Rinsing
Final immersion rinse
Heated rinse ensures complete detergent elimination
Tank Five – Drying
Hot air drying
Forced-air drying chamber – parts emerge completely dry
Why choose the CS5F Series five-stage industrial cleaning system:
✅ Complete five-stage processing – Degrease, bubble, spray, rinse, and dry in one integrated system
✅ 40kHz ultrasonic frequency – Optimized for industrial degreasing, rust removal, and particulate elimination
✅ Filtration circulation on degreasing tank – Removes floating oil and suspended solids – extends cleaning solution life
✅ Bubbling station – Gentle air agitation for delicate or sensitive components
✅ Spraying station – High-pressure forced spray for complex part geometries and blind holes
✅ Heated rinse station – Thorough detergent elimination for spot-free finishing
✅ Forced-air drying chamber – Rapid moisture removal – parts exit completely dry
✅ Wide capacity range – 45L to 960L per tank – from small batches to high-volume production
✅ Customizable frequencies – 20/25/28/40/68/80/168/180/200kHz selectable
Station-by-Station Breakdown – The Complete Five-Tank Workflow
Station One: Degreasing Tank (Ultrasonic + Filtration + Heating)
Parameter
Specification of five-stage industrial cleaning system
Ultrasonic frequency
40 kHz (other frequencies available)
Ultrasonic power
600W to 7200W (depending on model)
Heating power
1500W to 24000W (depending on model)
Filtration
Yes – built-in pump and filter
Temperature range
20-95°C (adjustable)
Timer range
1-99 minutes or continuous operation
What the degreasing station removes: Heavy hydrocarbon deposits (cutting oils, hydraulic fluids, drawing compounds), surface oxidation and light rust, wax films and buffing compounds, carbon deposits, production dust and metal fines.
Station Two: Bubbling Tank (Gentle Air Agitation)
Parameter
Specification of five-compartment industrial parts cleaning system
Agitation method
Air injection (bubbling)
Heating
Yes – adjustable from 20-95°C
Timer
1-99 minutes or continuous operation
Why bubbling matters: The bubbling station provides gentle mechanical agitation without ultrasonic cavitation – ideal for:
Delicate components that cannot tolerate high-intensity ultrasonic energy
Secondary cleaning after degreasing to dislodge loosened particles
Parts with complex internal passages where air bubbles help flush contaminants
Station Three: Spraying Tank (High-Pressure Forced Spray)
Parameter
Specification of comprehensive multi-stage processing line
Spray method
High-pressure forced spray nozzles
Heating
Yes – adjustable from 20-95°C
Timer
1-99 minutes or continuous operation
Why spraying matters: The spraying station uses forced spray to:
Remove loosely adhered contaminants from part surfaces
Reach blind holes and internal passages where immersion alone may not suffice
Provide mechanical rinsing action that complements ultrasonic cleaning
Station Four: Rinsing Tank (Heated Immersion Rinse)
Parameter
Specification of CS5F Series five-tank industrial ultrasonic cleaning system
Rinse method
Heated immersion rinse
Heating
Yes – adjustable from 20-95°C
Timer
1-99 minutes or continuous operation
Why a dedicated rinse station matters:
Removes all residual cleaning chemicals from part surfaces
Washes away loosened soils not fully displaced during earlier stages
Prevents chemical residues from drying onto parts
Station Five: Drying Chamber (Forced-Air Hot Air Drying)
Parameter
Specification of five-station component cleaning and drying system
Drying method
Forced-air hot air circulation
Drying power
4500W to 9000W (depending on model)
Drying temperature
Adjustable (typical range up to 120°C)
Timer
1-99 minutes or continuous operation
Benefits of integrated drying:
Rapid moisture removal – parts emerge completely dry
Oxidation prevention – immediate drying prevents flash rusting
No secondary handling – no need to transfer wet parts to separate drying equipment
The complete five-stage workflow on the CS5F Series:
DIRTY PARTS → Tank One (Degreasing: Ultrasonic + Filtration + Heat) → Tank Two (Bubbling: Gentle Air Agitation) → Tank Three (Spraying: High-Pressure Forced Spray) → Tank Four (Rinsing: Heated Immersion) → Tank Five (Drying: Forced-Air) → FULLY CLEAN & DRY PARTS

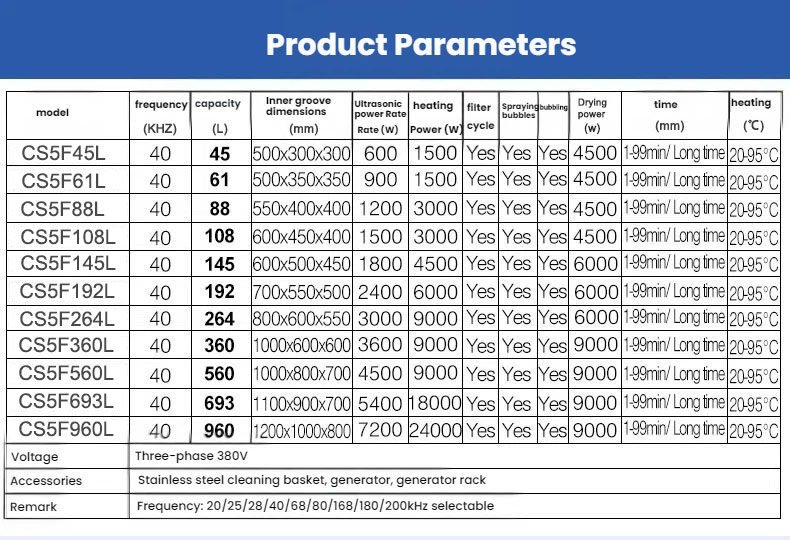

Complete Technical Specifications – CS5F Series Five-Tank System
General specifications across all CS5F five-tank models:
Parameter
Specification of degreasing tank with ultrasonic filtration and heating
Standard ultrasonic frequency
40 kHz
Selectable frequencies
20 / 25 / 28 / 40 / 68 / 80 / 168 / 180 / 200 kHz (specify at order)
Voltage
Three-phase 380V
Tank material
Thickened SUS304 stainless steel (SUS316 optional)
Construction
Seamless double welding – shockproof and crack-resistant
Timer range (each tank)
1-99 minutes or continuous operation
Temperature range (Tanks 1-4)
20-95°C (adjustable)
Drying temperature (Tank 5)
Adjustable
Filtration
Standard on Tank One (degreasing)
Spraying
Standard on Tank Three
Bubbling
Standard on Tank Two
Drain valves
Large-diameter stainless steel (5x – one per tank)
Generator type
Industrial drive version with independently developed circuit boards
Accessories included
Stainless steel cleaning basket, generator, generator rack
Key Features – What Makes the CS5F Series a Complete Cleaning Solution
Degreasing Tank with Filtration Circulation
The first tank of this five-stage industrial parts cleaning system includes a built-in filter circulation system that continuously removes floating oil and suspended solids, extending cleaning solution life by 3-5x.
Component
Function of five-stage industrial parts cleaning system
Circulation pump
Continuously draws cleaning solution from degreasing tank
Filter housing
Captures suspended solids and metal fines
Oil skimmer
Removes floating hydrocarbon films from solution surface
Bubbling Station for Gentle Cleaning
The second compartment of this five-tank industrial wash line uses air injection to create gentle agitation. This is ideal for:
Delicate components (electronics, optics, medical devices)
Secondary cleaning after degreasing
Parts that cannot tolerate aggressive ultrasonic action
Spraying Station for Forced Rinsing
The third tank in this five-chamber industrial degreaser uses high-pressure forced spray nozzles to:
Reach blind holes and internal passages
Remove loosely adhered particles from complex geometries
Provide mechanical rinsing action
Heated Rinse Station
The fourth compartment provides heated immersion rinsing to:
Eliminate all residual cleaning chemicals
Prevent spotting and staining on finished parts
Hot Air Drying Chamber
The fifth tank uses forced-air hot air circulation to:
Rapidly remove moisture from parts
Prevent flash rusting on ferrous components
Deliver fully dry parts ready for assembly or packaging
Filtration, Spray, and Bubbling – Standard on Selectable Tanks
The CS5F Series multi-station ultrasonic cleaning equipment includes three advanced cleaning actions as standard features:
Feature
Tank Location
Function of five-tank industrial wash line
Best For
Filtration
Tank One (Degreasing)
Removes floating oil and suspended solids – extends solution life
All applications – standard on degreasing tank
Spraying
Tank Three
High-pressure forced spray nozzles
Complex geometries, blind holes, internal passages
Bubbling
Tank Two
Gentle air agitation
Delicate components, secondary cleaning
Why these three features together create a superior cleaning system:
Feature Combination
Benefit of CS5F Series multi-station ultrasonic cleaning equipment
Filtration + Ultrasonic
Cleaning solution stays clean – consistent results, lower chemical costs
Bubbling + Ultrasonic
Gentle mechanical action for sensitive parts – no ultrasonic damage
Spraying + Rinsing
Forced removal of loosened contaminants – especially from blind holes
All five stages combined
Comprehensive cleaning – no contaminant survives all five stations
Cleaning Performance – Five-Stage Contaminant Removal
The CS5F Series five-stage cleaning and drying system delivers exceptional cleaning results across a wide range of industrial components and contaminants:
Contaminant Type
Degreasing Tank
Bubbling Tank
Spraying Tank
Rinsing Tank
Drying Chamber
Overall Effectiveness
Heavy oil / grease
✅ Excellent
✅ Good
✅ Good
✅ Excellent
N/A
Complete removal
Heavy rust / oxidation
✅ Very good
✅ Good
✅ Good
✅ Good
N/A
Complete removal
Wax / buffing compound
✅ Good
✅ Good
✅ Very good
✅ Excellent
N/A
Complete removal
Rosin / flux
✅ Good
✅ Good
✅ Good
✅Excellent
N/A
Complete
removal
Carbon deposits
✅ Very good
✅ Moderate
✅ Good
✅ Good
N/A
Complete removal
Particulate / dust
✅ Excellent
✅ Good
✅ Excellent
✅ Excellent
N/A
Complete removal
Moisture / water spots
N/A
N/A
N/A
N/A
✅ Excellent
Completely dry parts

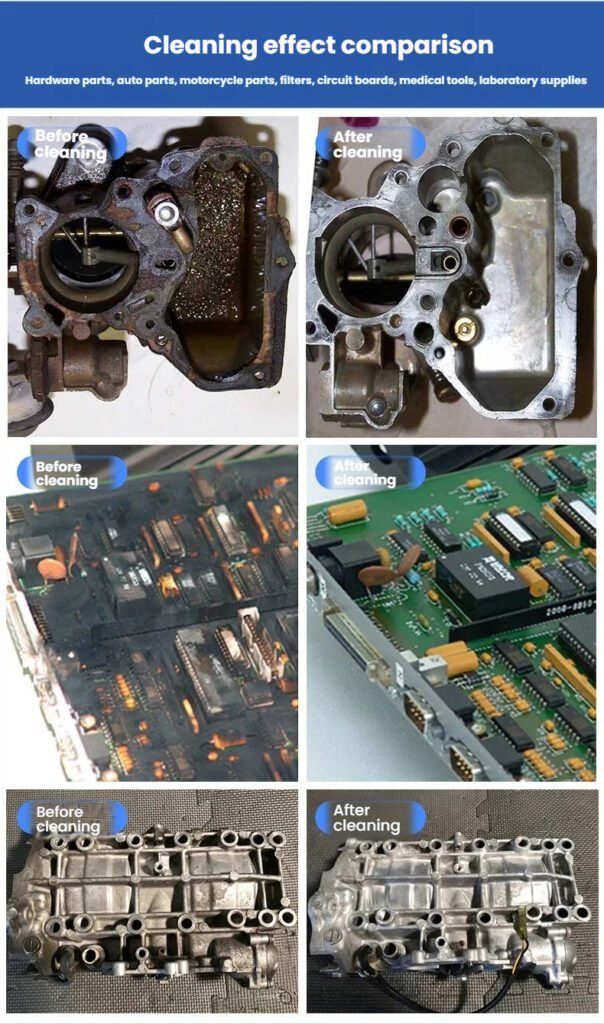

Customer-reported results using CS5F Series five-tank cleaning equipment:
Component Type
Contaminant
Result
Hardware parts
Heavy oil, rust, dust
Clean, dry, ready for packaging
Auto parts
Cutting oil, carbon, grease, oxidation
Complete soil removal, dry finish
Motorcycle components
Road grime, chain oil, dirt
Restored to like-new condition
Filters
Sludge, trapped particles, oil
Clean, reusable, dry
Circuit boards
Rosin flux, solder paste, dust
Clean, dry, ready for next assembly stage
Medical tools
Protein residues, blood, polishing compounds
Sterile-ready, completely dry
Laboratory supplies
Chemical residues, biological contamination
Clean, dry, reusable
Section 7: Applications – What Can You Clean with the Five-Tank System?
The CS5F Series five-compartment industrial ultrasonic line is suitable for a wide range of components requiring the highest level of cleanliness:
Industry
Typical Components
Contaminants Removed
Key Stations Used
Automotive manufacturing
Engine blocks, cylinder heads, transmission cases, fuel injectors
Heavy oil, carbon, rust, coolant residue
Degrease + Bubble + Spray + Rinse + Dry
Aerospace
Turbine blades, hydraulic fittings, landing gear
Oxidation, hydraulic fluid, cutting oils
Degrease + Spray + Rinse + Dry
Medical device
Surgical instruments, implants, trays
Protein residues, polishing compounds, dust
Degrease + Bubble + Rinse + Dry
Electronics manufacturing
PCB assemblies, electronic housings
Rosin flux, dust, fingerprint oils
Degrease + Bubble + Spray + Rinse + Dry
Metalworking and machining
Machined parts, tooling, dies, molds
Cutting fluid, chips, light rust
Degrease + Spray + Rinse + Dry
Fabrication
Welded assemblies, structural components
Weld scale, flux residue, fabrication oils
Degrease + Spray + Rinse + Dry
Maintenance and overhaul
Reconditioned parts, hydraulic cylinders, pumps
Hydraulic fluid, varnish, sludge, rust
Degrease + Bubble + Spray + Rinse + Dry
Hardware manufacturing
Brackets, fasteners, stamped parts
Cutting oil, dust, light rust
Degrease + Rinse + Dry

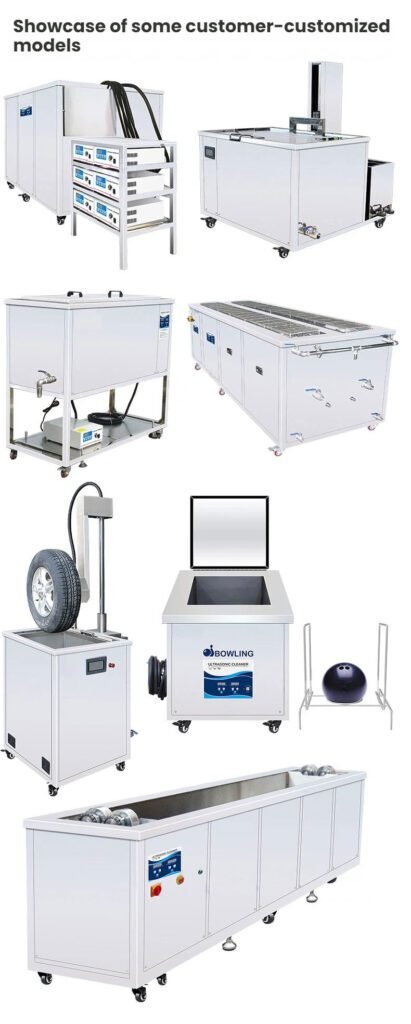

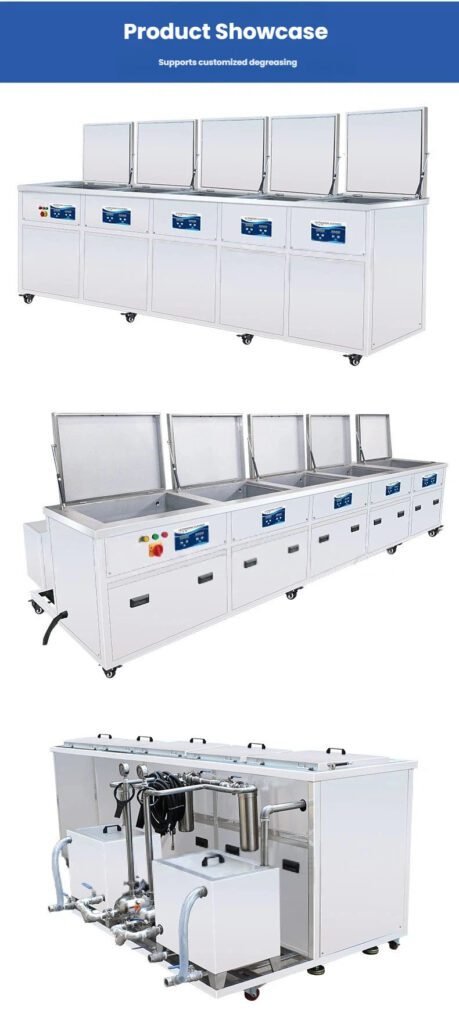

Section 8: Product Showcase – Degreasing Supported, Customization Available
The CS5F Series five-tank industrial parts washing line is fully customizable to your specific requirements:
Customization Area
Description
Tank dimensions
Longer, wider, or deeper based on your largest component
Capacity
45L to 960L per tank (11 standard models)
Ultrasonic frequency
20 / 25 / 28 / 40 / 68 / 80 / 168 / 180 / 200 kHz selectable
Ultrasonic power
Upgradable for heavier soil loads or faster cycle times
Heating power
Matched to tank volume and desired ramp rate
Voltage
Three-phase 380V (standard) – other voltages on request
Plug type
Chinese, American, Australian, European, British standards
Additional functions
PLC control with touchscreen HMI / Data logging / Automated transfer between tanks
Customized degreating supported – The CS5F Series can be tailored for specific degreasing applications, including:
Heavy oil removal from engine components
Wax elimination from castings
Carbon deposit cleaning from industrial parts

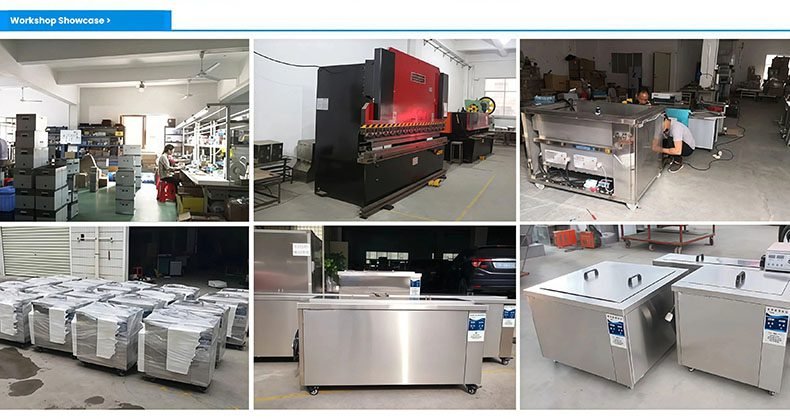

Workshop Showcase – Manufacturing the CS5F Series
The CS5F Series five-station industrial cleaning line is manufactured in CLEANINGSONIC’s Shenzhen facility, where every unit undergoes:
Quality Stage
Process
Raw material inspection
Verified SUS304 stainless steel
Precision fabrication
CNC cutting and forming – accurate tank dimensions
Tank construction
Seamless double welding – inside and out
Transducer bonding
High-temperature epoxy – tested for bond integrity
Filtration system assembly
Pump and filter – flow rate and capture efficiency tested
Spray system assembly
Nozzle alignment and pressure tested
Bubbling system assembly
Air flow and distribution tested
Generator assembly
Independently developed circuit boards – functional tested
Full functional test
Ultrasonic cavitation, heating, timer, filtration, spray, bubbling, drying – each unit individually tested
Final inspection
Visual and operational inspection before packaging
Why Choose CLEANINGSONIC for Your Five-Tank System?
Advantage
Value to You
15+ years R&D experience
Deep engineering expertise in multi-tank ultrasonic cleaning systems
Source manufacturer
No middlemen – factory direct pricing
1-year warranty
Full parts and technical support
Lifetime maintenance
Ongoing factory support
Independently developed circuit boards
Proprietary generator design for reliable ultrasonic output
Industrial-grade transducers
Powerful, uniform cavitation – cleaning is faster and more thorough
Precision manufacturing
Thickened SUS304/316 tanks, seamless double welding
Excellent word-of-mouth
Trusted by customers worldwide
2-7 day delivery
Fast turnaround for standard customizations
Send Inquiry
Request a Custom Quote – CS5F Series Five-Tank Industrial Ultrasonic Cleaning System (Degrease + Bubble + Spray + Rinse + Dry)
Share your complete cleaning requirements with our engineering team:
1.Which capacity model do you need? (45L to 960L)
2.What are the dimensions and material of your largest component?
3.What contaminants need to be removed? (heavy oil, heavy rust, wax, rosin, carbon, or combination)
4.Do you need custom frequency? (20/25/28/40/68/80/168/180/200kHz available)
5.Do you have three-phase 380V power available at your facility?
Our engineering team will respond with:
Recommended configuration for your CS5F Series five-stage cleaning system
Custom engineering drawing (if modifications are needed)
Price quotation
Delivery timeline (2-7 days for standard customizations)
Response time: Within 2 business hours
Hot Tags
#FiveTankUltrasonicCleaner #FiveStageCleaningSystem #DegreaseBubbleSprayRinseDry #IndustrialPartsWasher #MultiTankCleaningEquipment#BowlingEquipmentCleaner #CS5F Series five-tank industrial parts washing line #CS5F Series five-stage industrial cleaning equipment #before after cleaning comparison hardware auto parts medical tools #CS5F Series five-station industrial cleaning line #five-tank cleaning system source manufacturer #factorydirectmulti-stationultrasoniccleaner #CS5FSeriesfive-stage cleaninganddryingequipment #customfive-tankindustrialcleaningsystem #CS5FSeries five-tankindustrialultrasoniccleaner #five-stageindustrialpartscleaningsystem #built-infiltercirculationondegreasingtank #five-tankindustrialwashline
