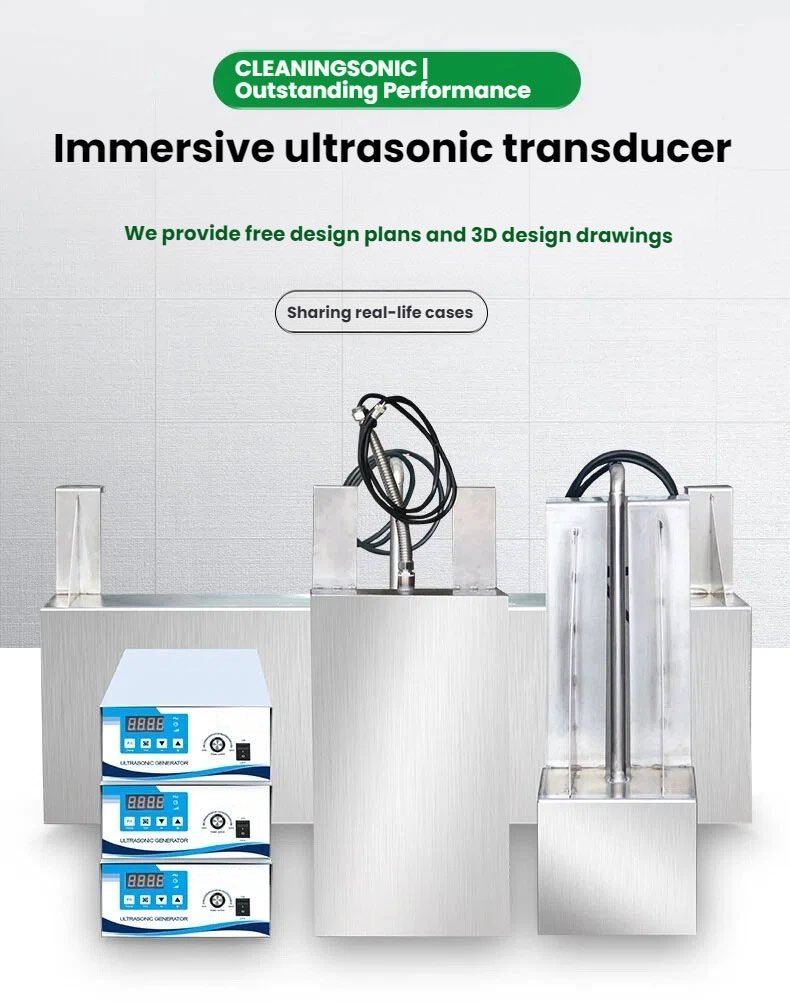

Product Overview – Turn Any Tank into an Ultrasonic Cleaner
The CSSQ Series immersion ultrasonic transducer plate (also known as a submersible ultrasonic vibrator, bolt-on transducer assembly, or drop-in cavitation unit) is a flexible retrofit solution that converts virtually any existing tank, vat, or container into a fully functional industrial ultrasonic cleaning system.
Unlike standalone ultrasonic cleaners that require purchasing a complete machine, this immersible ultrasonic transducer plate allows you to add high-power ultrasonic cavitation to tanks you already own – whether they are made of stainless steel, plastic, fiberglass, or other materials compatible with aqueous cleaning solutions.
Why choose the CSSQ Series immersion ultrasonic transducer plate:
✅ Converts existing tanks – Add ultrasonic cleaning capability to any compatible tank
✅ 300W to 2400W power range – 6 standard sizes for different tank volumes
✅ 40kHz ultrasonic frequency (28kHz available for heavy soils) – Optimized for industrial degreasing and contaminant removal
✅ Three flexible installation methods – Immersion, wall-mounted (side vibration), or top-mounted (top vibration)
✅ 2.0mm SUS304 stainless steel construction – Acid and alkali resistant, durable, easy to clean
✅ 3D cooling system – Fast heat dissipation and circuit protection – extends service life
✅ Free design plans and 3D drawings – Our engineering team provides custom layouts for your specific tank
✅ Sharing real-life cases – Proven installations across mechanical, electronics, automotive, aerospace, and medical industries

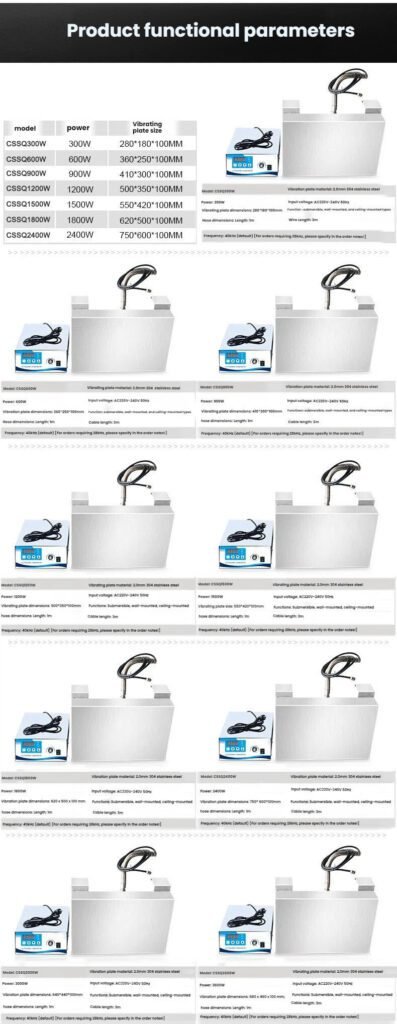

Complete Technical Specifications – CSSQ Series immersion bottom vibration tank bottom mounted
Model
Power (W)
Plate Size (L×W×H mm)
Material
Thickness
Frequency (kHz)
Voltage
Hose Length
Cable Length
CSSQ300W
300
280 × 180 × 100
SUS304
2.0mm
40 (28 avail)
AC220-240V
1m
3m
CSSQ600W
600
360 × 250 × 100
SUS304
2.0mm
40 (28 avail)
AC220-240V
1m
3m
CSSQ900W
900
410 × 300 × 100
SUS304
2.0mm
40 (28 avail)
AC220-240V
1m
3m
CSSQ1200W
1200
500 × 350 × 100
SUS304
2.0mm
40 (28 avail)
AC220-240V
1m
3m
CSSQ1500W
1500
550 × 420 × 100
SUS304
2.0mm
40 (28 avail)
AC220-240V
1m
3m
CSSQ1800W
1800
620 × 500 × 100
SUS304
2.0mm
40 (28 avail)
AC220-240V
1m
3m
CSSQ2400W
2400
750 × 600 × 100
SUS304
2.0mm
40 (28 avail)
AC220-240V
1m
3m
General specifications across all CSSQ immersible ultrasonic transducer plate:
Parameter of
bolt-on retrofit ultrasonic cleaning solution, drop-in cavitation unit
Specification of
CSSQ Series immersion ultrasonic transducer plate, submersible ultrasonic vibrator
Vibration plate material
2.0mm SUS304 stainless steel (acid and alkali resistant)
Standard ultrasonic frequency
40 kHz
Optional frequency
28 kHz (specify at order – for heavy rust, carbon, and thick soils)
Input voltage

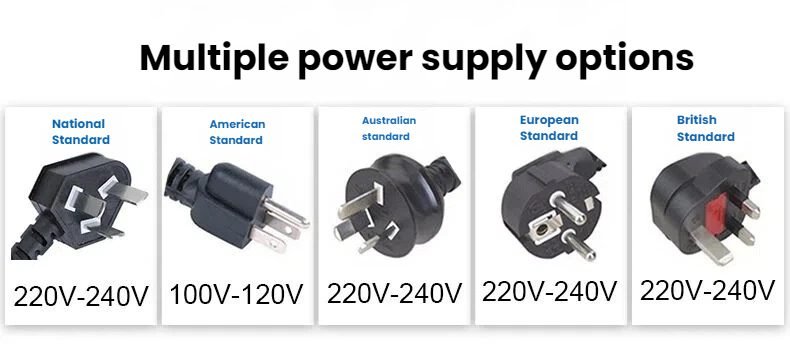

AC220V-240V 50Hz (AC100-120V available on request)
Installation methods
Immersion (bottom vibration) / Wall-mounted (side vibration) / Top-mounted (top vibration)
Hose dimensions
Length: 1 meter
Cable length
3 meters
Cooling system
3D cooling system – fast heat dissipation and protection circuit
Generator type
Industrial drive version with independently developed circuit boards
Control interface
Digital display with time and power adjustment, overvoltage protection, PLC-ready
Installation Methods – Immersion, Wall-Mounted, and Top-Mounted
The CSSQ Series immersion ultrasonic transducer plate supports three distinct installation methods to accommodate different tank configurations and cleaning requirements.
Installation Method 1: Immersion (Bottom Vibration / Tank Bottom Mounted)
Parameter
Specification
Placement
Submerged at the bottom of the tank
Typical tank depth
Any depth
Spacing requirement
Vibrating plate to tank bottom spacing: less than 300mm to 450mm
Best for
General industrial cleaning, degreasing, parts washing
Immersion installation setup:
[Water level] ↓[Vibrating plate] ← Submerged in liquid[Tank bottom spacing: 300-450mm] ↓[Tank bottom]
Installation Method 2: Wall-Mounted (Side Vibration / Side Wall Mounted)
Parameter
Specification
Placement
Attached to the side wall of the tank
Typical tank width
Any width
Spacing requirement
Less than 300mm to 450mm from the tank wall
Best for
Tanks where bottom mounting is not feasible, or for directional cleaning action
Wall-mounted installation setup:
[Vibrating plate] ← Mounted on side wall ↓[Tank wall spacing: less than 300-450mm] ↓[Water level] ↓[Tank bottom]
Installation Method 2: Wall-Mounted (Side Vibration / Side Wall Mounted)
Parameter
Specification
Placement
Suspended from above, immersed in the tank
Typical tank width
Any depth
Spacing requirement
Less than 900mm from top to bottom of tank
Best for
Deep tanks, retrofitting existing equipment without drilling or welding
Top-mounted installation setup:
[Support structure above tank] ↓[Vibrating plate suspended] ← Top-mounted ↓[Water level] ↓[Tank bottom spacing: less than 900mm] ↓[Tank bottom]
Why multiple installation options matter:
Installation Type
Tank Type
Best Application
Immersion (Bottom)
Rectangular tanks, cleaning basins
General parts cleaning, degreasing
Wall-mounted (Side)
Deep tanks, plating baths
Directional cleaning, large tank volumes
Top-mounted (Overhead)
Existing equipment with no bottom/wall access
Retrofit without tank modification
Free Design Plans and 3D Drawings – Custom Solutions for Your Tank
CLEANINGSONIC provides free design plans and 3D design drawings for every CSSQ Series immersion ultrasonic vibrator installation.
What you receive before ordering:
Deliverable
Description
2D drawings
Detailed dimensional layouts showing transducer plate placement in your tank
3D drawings
3D model of the complete installation – visualize placement before fabrication
Renderings
Photorealistic preview of the finished installation
Installation diagram
Step-by-step placement and connection instructions
How to get your free design plan:
Send us your tank dimensions (length, width, depth)
Tell us your tank material (stainless steel, plastic, fiberglass, etc.)
Share your cleaning requirements (parts size, contaminant type, throughput)
Our engineering team creates custom 2D and 3D drawings for your specific tank
You approve the design before manufacturing begins
This free design service ensures:
Optimal transducer placement for uniform cavitation
Correct spacing for maximum cleaning efficiency
No guesswork – you see exactly how the system will fit in your tank

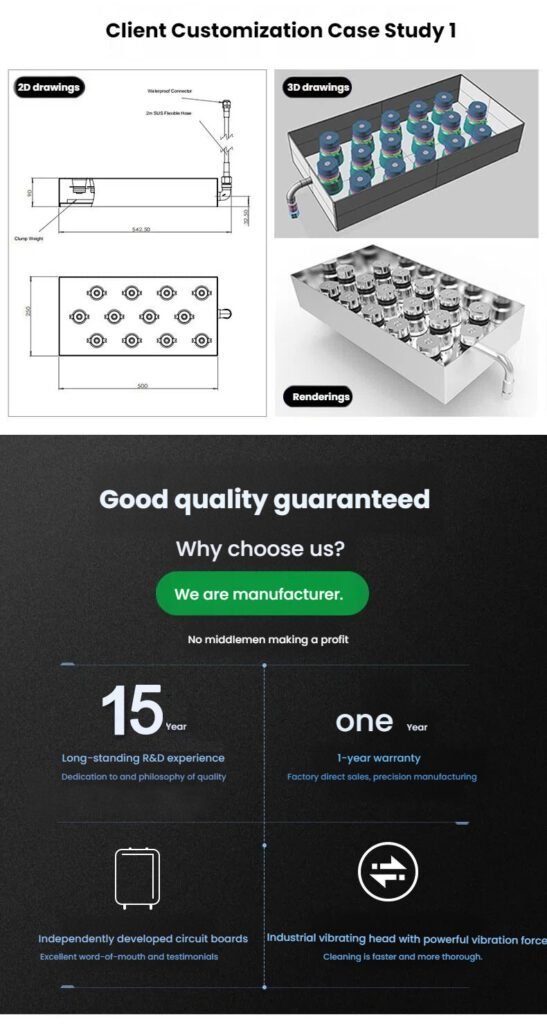

Client Customization Case Study 1 – Real-Life Application
CLEANINGSONIC has successfully delivered customized immersion ultrasonic transducer plate solutions across multiple industries. Below is a representative case study:
Case Study: Custom SUS316 Ultrasonic Transducer Plate for Vertical Connector Cleaning
Parameter
Specification
Industry
Mechanical component manufacturing
Application
Cleaning vertical connectors and fluted hole components
Tank type
Custom stainless steel tank
Tank dimensions
2m length
Transducer plate configuration
Multiple CSSQ units arranged for uniform coverage
Frequency
40kHz
Material
SUS316 (upgraded for corrosion resistance)
Result
Complete contaminant removal from complex geometries
What this case demonstrates:
We can design cascaded multiple transducer plates for extra-long tanks
Material upgrades (SUS316) available for corrosive environments
Complex tank geometries accommodated with custom layouts

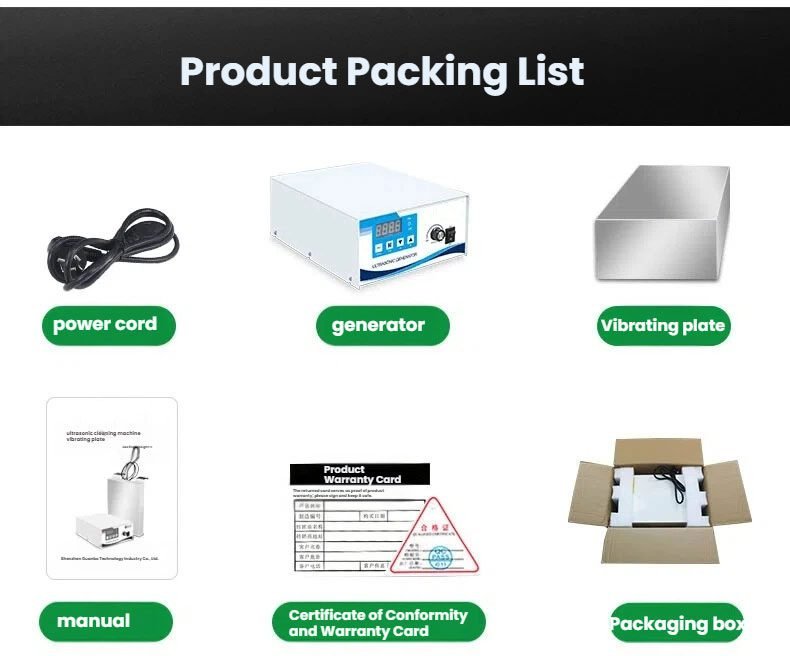

Control Panel Product Showcase – Intelligent Ultrasonic Generator
Each CSSQ Series submersible ultrasonic vibrator is paired with an industrial-grade ultrasonic generator featuring:
Control Feature
Specification
Function
Digital display window
LED readout
Shows current time, power level, and operating status
Time adjustment
0-99 minutes / continuous
Set exact cycle duration
Power control
0-100% adjustable via potentiometer
Fine-tune ultrasonic intensity for different parts
Overvoltage protection
Automatic shutdown
Protects generator and transducers from power surges
Overcurrent protection
Automatic shutdown
Prevents transducer damage
PLC-ready interface
Compatible
Integration into automated production lines
Menu navigation
Intuitive buttons
Easy parameter adjustment
Power supply switch
ON/OFF
Master power control

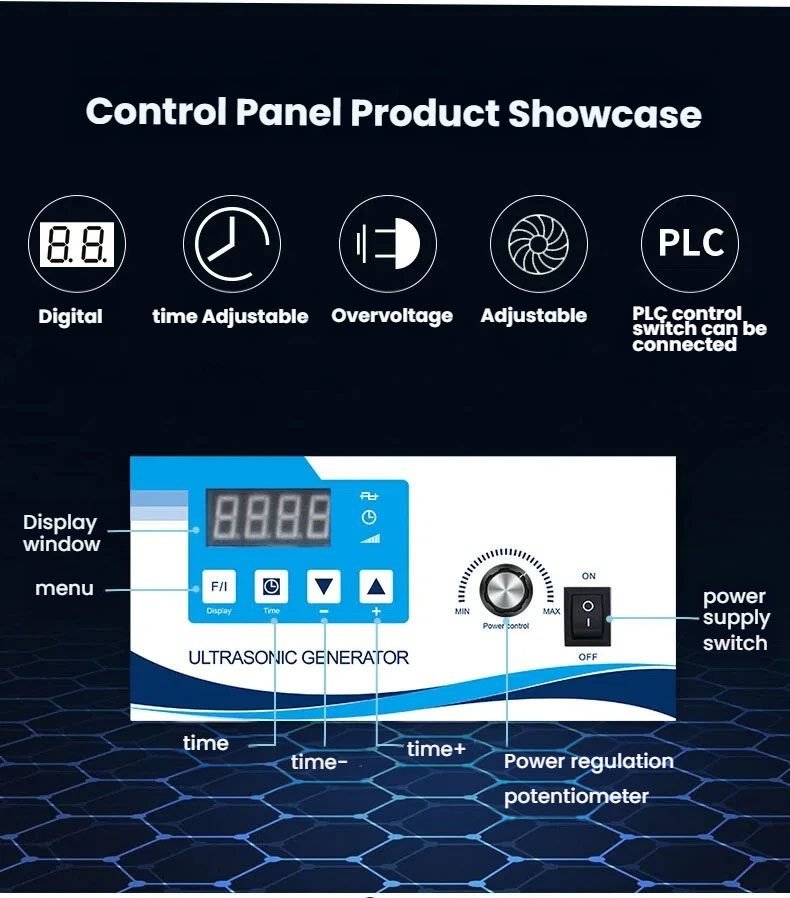

Generator front panel controls:
Display window – Shows time and settings
Menu button – Navigate through parameters
F/I button – Function / interval control
Time button – Access time setting mode
Time+ / Time- – Increase/decrease cycle duration
MIN / MAX – Time range indicators
Power regulation potentiometer – Analog control for ultrasonic power output
Power supply switch – Master ON/OFF

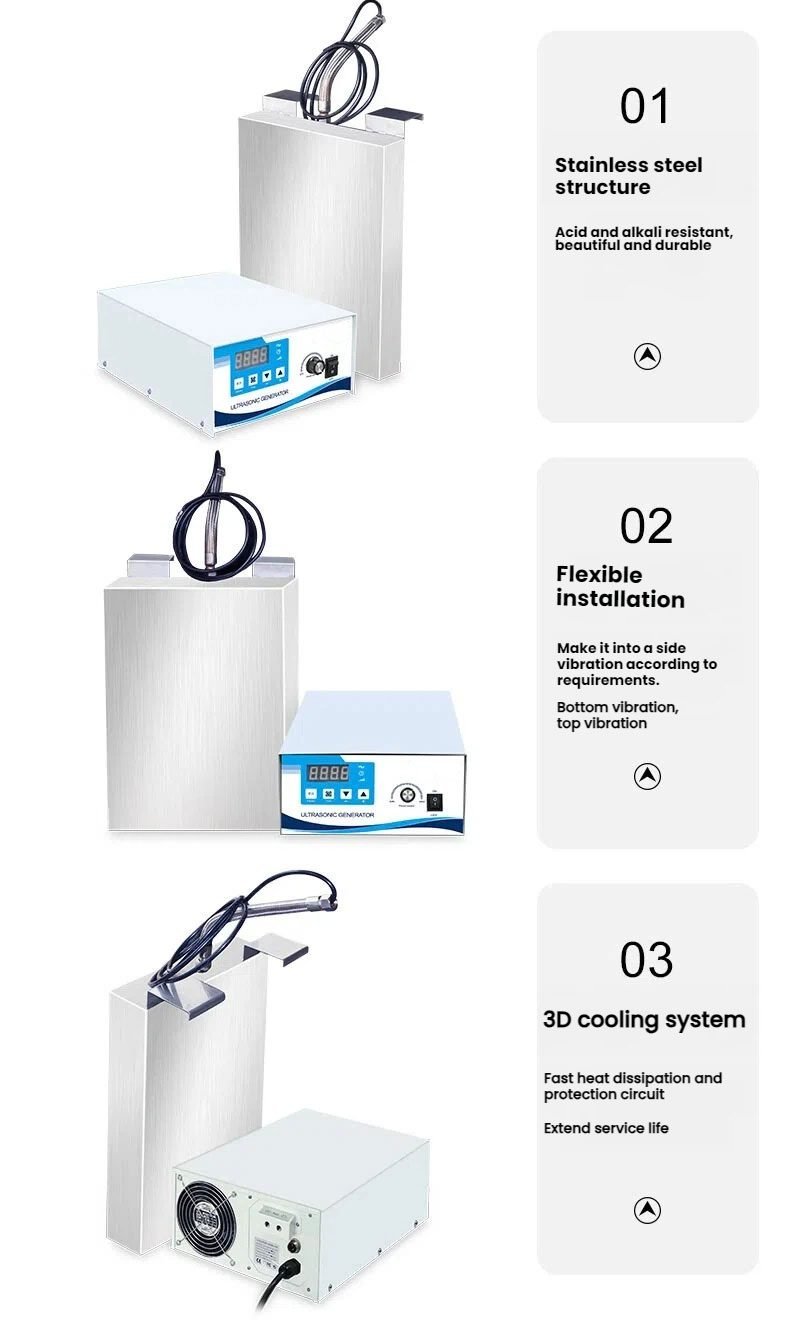

Key Features – Why the CSSQ Series Delivers Outstanding Performance
Feature 1: Stainless Steel Structure – Acid and Alkali Resistant
Parameter
Specification
Material
SUS304 stainless steel (2.0mm thickness)
Corrosion resistance
Acid resistant, alkali resistant, chemical resistant
Aesthetics
Beautiful and durable – professional appearance
Hygiene
Easy to clean, no crevices for contaminant accumulation
Feature 2: Flexible Installation – Three Mounting Configurations
Configuration
Description
Best Application
Bottom vibration (immersion)
Transducer plate sits on tank bottom
Standard cleaning, general parts washing
Side vibration (wall-mounted)
Transducer plate attached to side wall
Deep tanks, directional cleaning
Top vibration (top-mounted)
Transducer plate suspended from above
Retrofit without tank modification
Feature 3: 3D Cooling System – Extended Service Life
Parameter
Specification
Cooling method
3D heat dissipation system
Circuit protection
Fast heat dissipation and protection circuit
Benefit
Extends service life of both generator and transducers
Operation
Enables continuous-duty operation without overheating
Section 8: Application Range – Industries That Benefit from CSSQ Series
The CSSQ Series immersion ultrasonic transducer plate is used across a wide range of industries for retrofitting existing tanks with ultrasonic cleaning capability:
Industry
Typical Applications
Contaminants Removed
Tank Types
Mechanical / Industrial manufacturing
Machine parts, tools, dies, molds, bearings
Cutting oil, grease, chips, rust
Parts washers, dip tanks
Electronics industry
Circuit boards, electronic components, connectors
Rosin flux, dust, solder paste residue
Batch cleaning stations
Watches and jewelry
Watch cases, bands, movements, rings, necklaces
Polishing compound, skin oils, dust
Small benchtop tanks
Textile and printing
Printing rollers, screens, nozzles, dyeing equipment
Ink, dye residue, fabric fibers
Chemical baths
Petrochemical
Pipeline components, valves, fittings, pumps
Hydrocarbon deposits, sludge, rust
Large industrial tanks
New energy
Battery components, solar panel parts, fuel cell components
Machining oils, dust, flux
Specialized cleaning tanks
Biology / Medical
Laboratory instruments, surgical tools, implants
Protein residues, blood, biological contaminants
Immersion baths
Aerospace
Turbine blades, hydraulic fittings, airframe components
Oxidation, hydraulic fluid, cutting oils
Large parts washers
Automotive parts
Engine components, transmission parts, fuel injectors
Carbon, oil, grease, rust
Degreasing tanks
There’s still a lot we can clean – If your component and contaminant are not listed above, contact our engineering team for a free feasibility assessment.
Why Choose CLEANINGSONIC for Your Ultrasonic Transducer Plate?
Advantage
Value to You
15+ years R&D experience
Deep engineering expertise in ultrasonic transducer technology
Source manufacturer
No middlemen – factory direct pricing
Free design plans and 3D drawings
Custom layouts for your specific tank – no hidden engineering fees
Sharing real-life cases
Proven installations across mechanical, electronics, automotive, aerospace, medical
1-year warranty
Full parts and technical support
Lifetime maintenance support
Ongoing factory assistance
Independently developed circuit boards
Proprietary generator design for reliable ultrasonic output
Industrial vibrating head with powerful vibration force
Cleaning is faster and more thorough
2-7 day delivery
Fast turnaround for standard models
Good quality guaranteed
Every unit tested before shipment
Send Inquiry
Request a Free Design Plan and Quote – CSSQ Series Immersion Ultrasonic Transducer Plate
Share your tank and cleaning requirements with our engineering team:
What are your tank dimensions (length, width, depth)?
What is your tank material (stainless steel, plastic, fiberglass, etc.)?
What components do you need to clean?
What contaminants need to be removed? (oil, rust, wax, rosin, carbon, or combination)
What is your preferred installation method? (immersion / wall-mounted / top-mounted)
Do you have a voltage and plug preference?
Our engineering team will respond with:
Free 2D and 3D design drawings showing transducer plate placement in your tank
Renderings of the complete installation
Recommended CSSQ model (300W to 2400W based on tank volume)
Price quotation
Delivery timeline (2-7 days for standard models)
Response time: Within 2 business hours
Hot Tags
#ImmersionUltrasonicTransducerPlate #SubmersibleUltrasonicVibrator #CSSQSeriesimmersionultrasonictransducerplate #submersibleultrasonicvibrator #bolt-onretrofitultrasoniccleaningsolution #drop-incavitationunit #immersibleultrasonictransducerplat #immersionbottomvibrationtankbottommounted #wall-mountedsidevibrationsidewallmounted #customizedimmersionultrasonictransducerplatesolutions #cascadedmultipletransducerplatesforlongtanks #industrial-gradeultrasonicgeneratorforimmersiontransducerplate #immersionultrasonictransducerplateformechanicalelectronicsaerospace #submersiblevibratorforpetrochemicalmedicalautomotive #complete ultrasonictransducerplatesystempackage #globalvoltageoptionsforultrasonictransducerplates #sourcemanufacturerforultrasonictransducerplates
