CLEANINGSONIC COMPLETE ULTRASONIC CLEANING EQUIPMENT
Single Tank | Dual Tank | Three Tank | Five Tank | Long Strip | Drum Washer | Transducer Plates | Vibrators | Vibrating Rods
Large Series Ultrasonic Solutions
- Single-Tank Cleaning Machine

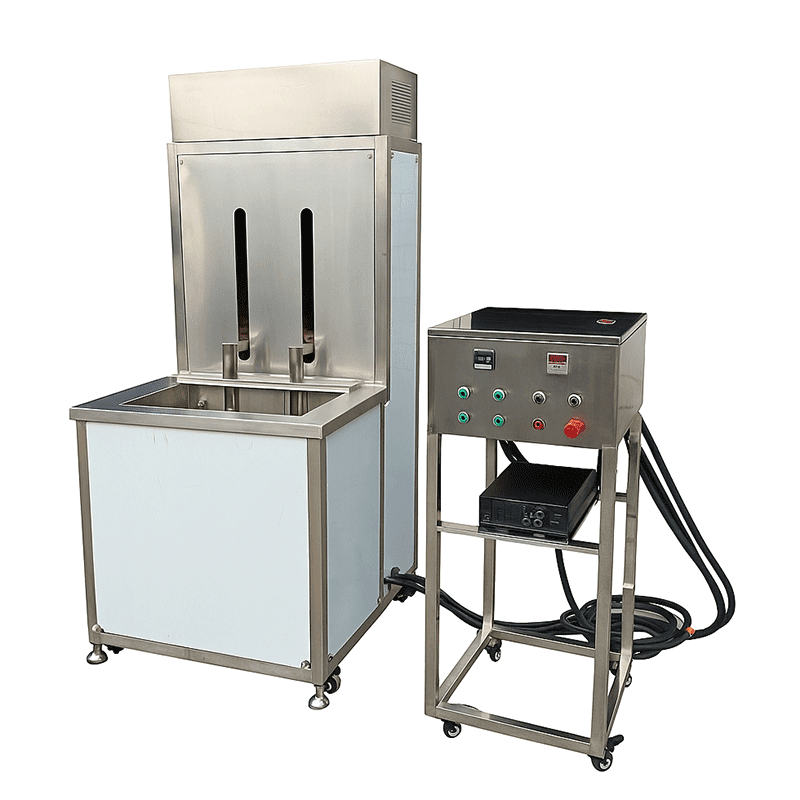

- Dual-Tank Ultrasonic Cleaning Machine with Lifting Mechanism

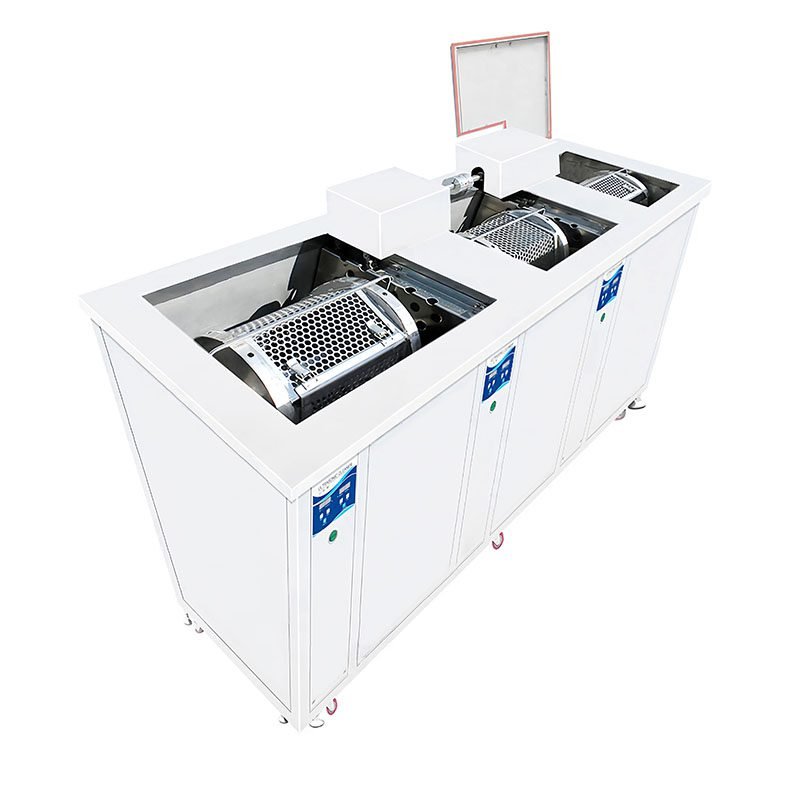

- Triple-Tank Ultrasonic Cleaning Machine with Rotary Drum
- Five-Tank Ultrasonic Cleaning Equipment System

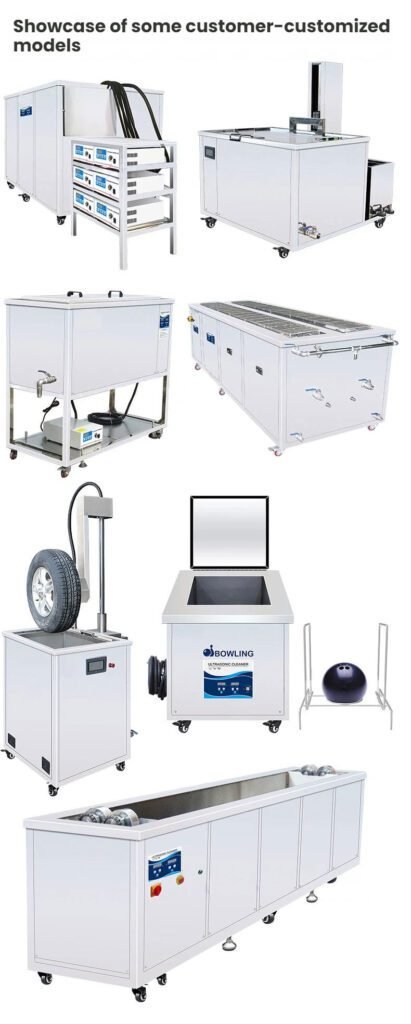

- Customized Industrial Ultrasonic Cleaner
Industrial | Commercial | Home | Immersion Components
Market Position & Brand Value
1.1 Market Positioning
CLEANINGSONIC is a source manufacturer with 15 years of experience in the research, development, design, and production of ultrasonic cleaning equipment. We serve four major product categories: industrial-grade large cleaning systems, commercial benchtop cleaners, home portable cleaners, and ultrasonic immersion components (plates/vibrators/rods). Our customers span automotive, aerospace, electronics, medical, machining, jewelry, eyewear, dental, and laboratory industries.
Target Customer Segments:
Customer Type
Typical Needs
Recommended Series
Automotive remanufacturers
Engine blocks, cylinder heads, fuel injectors – oil, carbon, rust removal
CSA / CSB / CSE / CS5F
Machine shops
Cutting oil, chips, light rust removal
CSA / CSC / CSD
Electronics manufacturers
PCB rosin flux removal
CSA / CSB / Home Series
Medical device manufacturers
Surgical instruments, implants cleaning
CSA / CSB / Home Series (with UV)
Aerospace MRO
Turbine blades, hydraulic fittings – oxidation removal
CSA / CSB / CSE
Jewelry & eyewear stores
Rings, glasses, watch bands daily cleaning
Home Series / CSCY
Dental clinics & labs
Dentures, aligners, retainers sterilization
Home Series (with UV)
Laboratories & research
Glassware, sample dispersion, degassing, emulsification
CSCY / CSRH
Equipment retrofitters
Convert existing tanks into ultrasonic cleaning lines
CSSQ / CSRH / CSCY
Global Market Coverage:
Domestic: Factory direct + distributor network
Export: North America, Europe, Southeast Asia, Middle East, South America
Cross-border platforms: Amazon, eBay, AliExpress, Wish – exclusive supply available
1.2 Core Brand Advantages
Advantage
What It Means for You
Source manufacturer
No middlemen – factory direct pricing, direct communication
15 years R&D experience
Deep ultrasonic engineering – self-developed circuit boards, not off-the-shelf
2-7 day fast delivery
Quick turnaround for standard custom models
OEM / ODM support
Branding, packaging, and functional customization available
1.3 Quality Assurance
Quality Feature
Specification
Tank material
SUS304 / SUS316 stainless steel, 2.0-2.5mm thickness
Welding
Seamless double welding (inside and out) – shockproof, crack-resistant
Transducers
Industrial-grade, 50W each, 24/7 continuous operation rated
Generator
Self-developed drive board – stable output with overvoltage, overcurrent, overheating protection
Cooling system
3D heat dissipation – extends service life
Complete Product Series – Features, Advantages & Applications

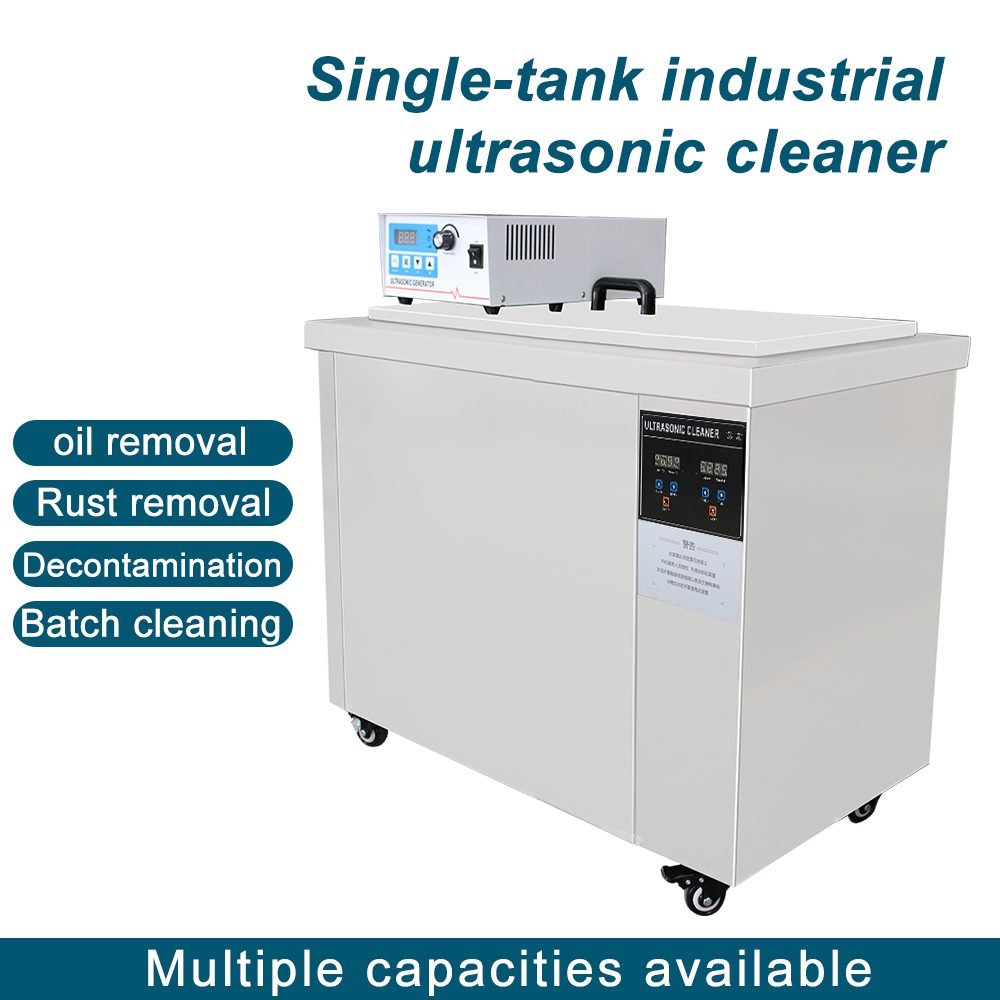

2.1 CSA Series – Industrial Single Tank Ultrasonic Cleaner (Basic Oil & Rust Removal)
Market Positioning: Entry-level industrial single tank – best value for general oil, rust, wax, and rosin removal.
Specifications:
Model
Transducers
Capacity (L)
Tank Size (mm)
Sonic Power (W)
Heat Power (W)
Temp (°C)
Time (min)
CSA45L
12
45
500×300×300
600
1500
20-80
1-99
CSA61L
18
61
500×350×350
900
1500
20-80
1-99
CSA88L
24
88
550×400×400
1200
3000
20-80
1-99
CSA108L
30
108
600×450×400
1500
3000
20-80
1-99
CSA135L
36
135
600×500×450
1800
4500
20-80
1-99
CSA192L
48
192
700×550×500
2400
6000
20-80
1-99
CSA264L
60
264
800×600×550
3000
7500
20-80
1-99
CSA360L
72
360
1000×600×600
3600
9000
20-80
1-99
CSA560L
90
560
1000×800×700
4500
9000
20-80
1-99
CSA540L
108
540
1000×900×600
5400
18000
20-80
1-99
CSA960L
144
960
1200×1000×800
7200
24000
20-80
1-99
Frequency Options: 40KHz standard – also selectable: 28KHz / 40KHz / 80KHz / 120KHz
Key Features:
Most economical industrial ultrasonic cleaning solution
Seamless double welding – shockproof, crack-resistant
Industrial transducers – 12 to 144 units (50W each)
Digital display, timer 1-99 min, temperature 20-80°C
Large-diameter stainless steel drain valve
Includes stainless steel basket, lid, drain hose
Applications:
Mechanical parts degreasing
Hardware rust removal
Mold and tool cleaning
Bearing and gear cleaning

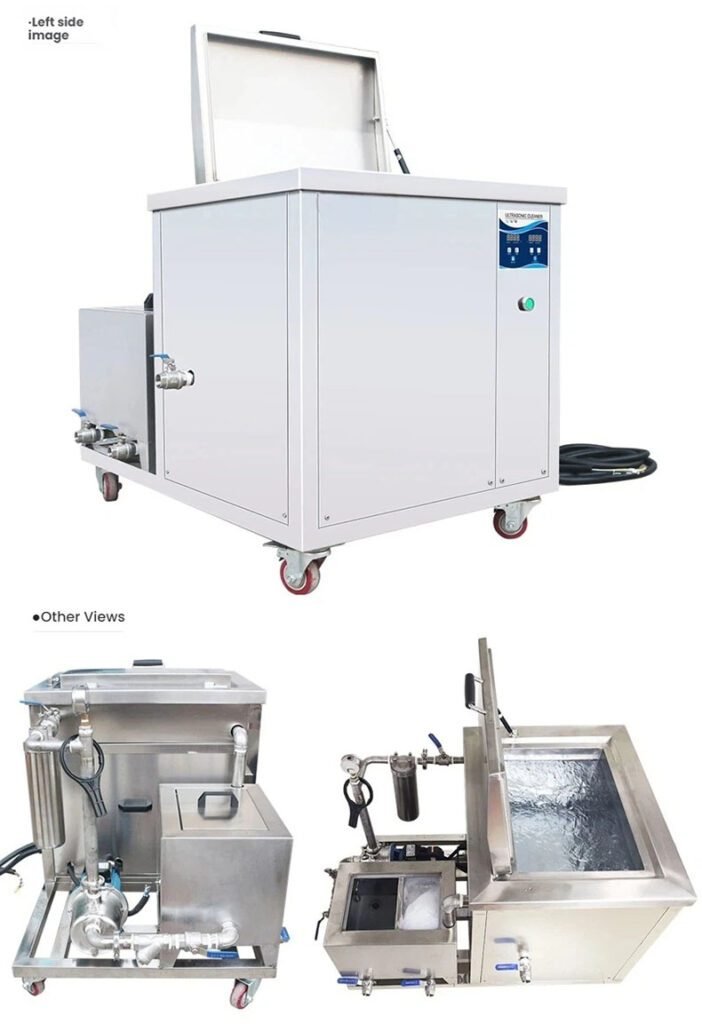

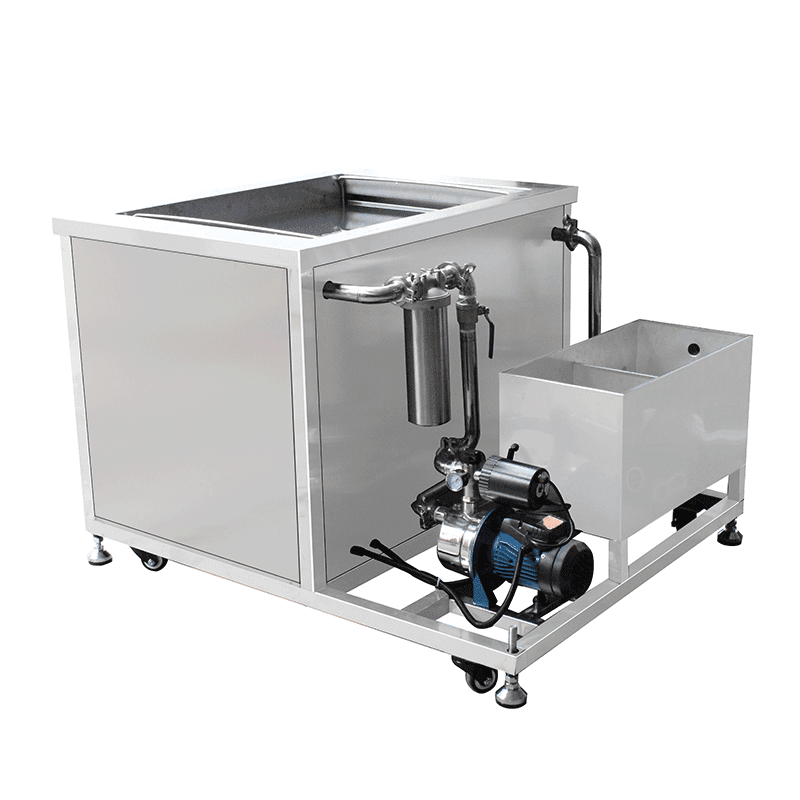

2.2 CSB Series – Single Tank with Filter Circulation (Extended Bath Life)
Market Positioning: Same as CSA but with built-in filtration circulation – ideal for applications requiring long solution life and continuous particle removal.
Specifications:
Model
Capacity (L)
Power (W)
Frequency (KHz)
Heating Power (W)
Inner Tank Size (mm)
CSB45L
45
600
40
1500
500×300×300
CSB61L
61
900
40
1500
500×350×350
CSB88L
88
1200
40
3000
550×400×400
CSB108L
108
1500
40
3000
600×450×400
CSB145L
145
1800
40
4500
600×500×450
CSB192L
192
2400
40
6000
700×550×500
CSB264L
264
3000
40
7500
800×600×550
CSB360L
360
3600
40
9000
1000×600×600
CSB560L
560
4500
40
9000
1000×800×700
CSB693L
693
5400
40
18000
1100×900×700
CSB960L
960
7200
40
24000
1200×1000×800
Key Features & Advantages:
Built-in filter pump + cartridge – continuous removal of suspended particles and floating oil
Extends cleaning solution life 3-5x – saves chemical costs
Reduces waste discharge – environmentally friendly
Less downtime for bath changes
Applications:
Precision component batch cleaning
Aerospace hydraulic parts
Medical surgical instruments
Electronic components
Market Advantage: Lower long-term operating cost than CSA series – ideal for continuous production.

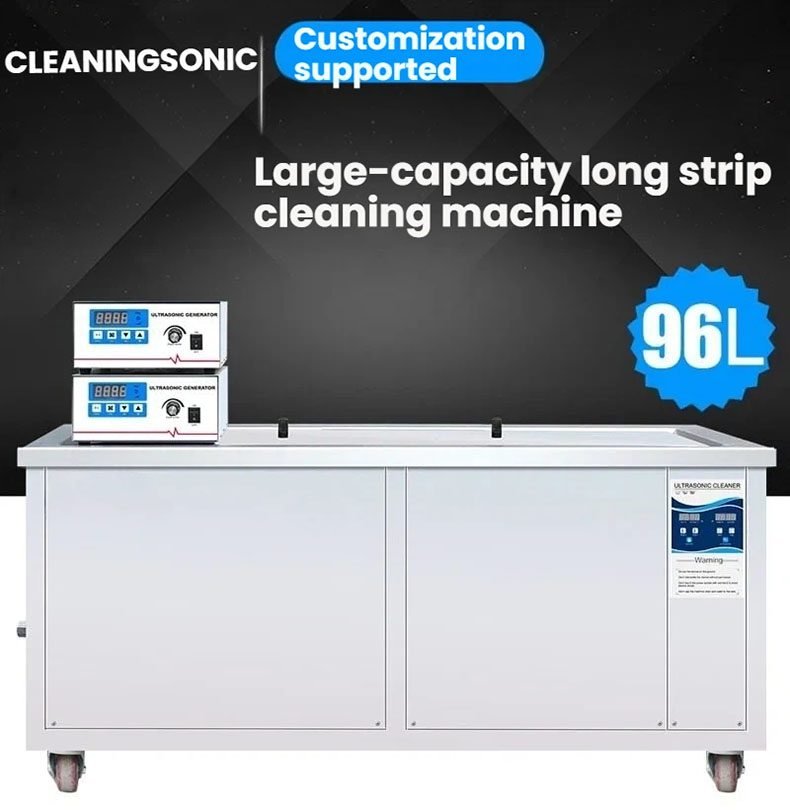

2.3 CSC Series – Large-Capacity Long Strip Cleaning Machine (800mm Tank Length)
Market Positioning: Specialized for long, narrow parts – guide rails, long shafts, extrusions, pipes, long bolts.
Specifications:
Model
Capacity (L)
Inner Tank (mm)
Sonic Power (W)
Heating Power (W)
Frequency (kHz)
Time (min)
CSC1500W
96
800×300×400
1500
3000
40
0-99
Key Features:
800mm tank length – fits long parts without repositioning
300mm width – multiple parts side by side
400mm depth – full submersion
Custom longer lengths available (1000mm / 1200mm / 1500mm)
Applications:
Extruded aluminum profiles – oil removal
Linear guide rails – rust removal
Hydraulic piston rods – cleaning
Long pipes and tubes – internal + external cleaning
Market Differentiation: Most standard tanks are square or near-square. CSC series fills the gap for long workpiece cleaning.

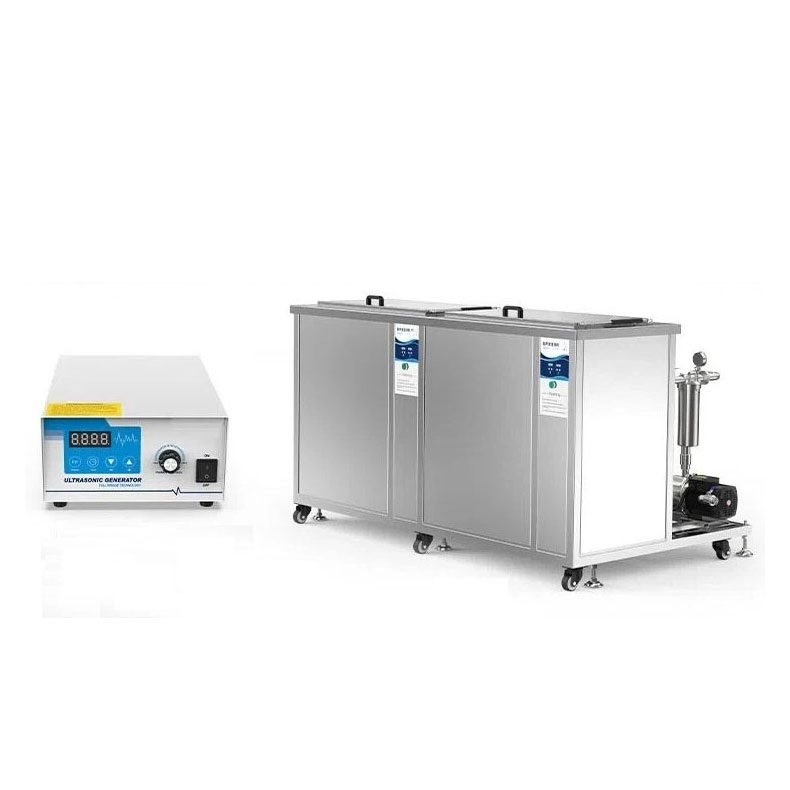

2.4 CSD Series – Dual Tank with Filtration + Drying (Wash + Dry)
Market Positioning: Integrates ultrasonic cleaning (with filtration) and hot air drying in one machine – wash then direct transfer to drying chamber.
Specifications:
Model
Wash Tank Capacity (L)
Dry Tank Capacity (L)
Drying Power (W)
Frequency (kHz)
Sonic Power (W)
CSD45L
45
45
4500
28/40
600
CSD61L
61
61
4500
28/40
900
CSD88L
88
88
4500
28/40
1200
CSD108L
108
108
4500
28/40
1500
CSD135L
135
135
4500
28/40
1800
CSD192L
192
192
6000
28/40
Model
2400
CSD264L
264
264
6000
28/40
3000
CSD560L
560
560
6000
28/40
3600
CSD540L
540
540
6000
28/40
5400
CSD960L
960
960
9000
28/40
7200
Key Features:
Tank 1: Ultrasonic + heating + filtration circulation
Tank 2: Hot air circulation drying – temperature adjustable (ambient to 120°C), time adjustable (0-99 hours)
Completion alarm on drying cycle
One machine – wash then dry. No manual drying or compressed air.
Applications:
Parts that need immediate packaging or assembly after cleaning
Ferrous parts – prevents flash rusting
Medical instruments – high dryness requirement
Market Advantage: Reduces process steps, saves labor, improves consistency and yield.

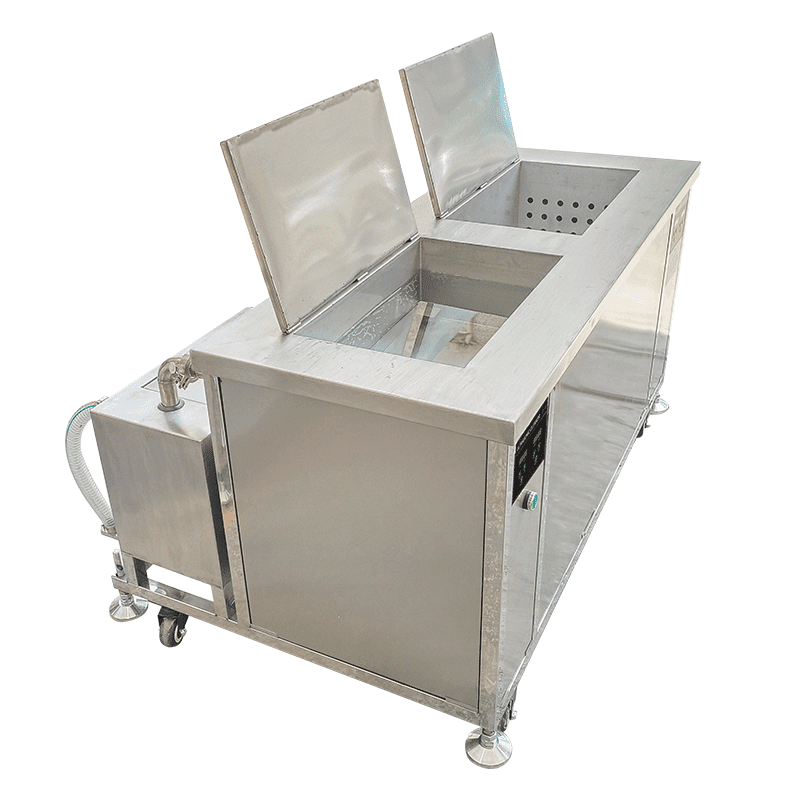

2.5 CSG Series – Dual Tank Industrial Ultrasonic Cleaner (Wash + Rinse)
Market Positioning: Two independent ultrasonic tanks – one for washing, one for rinsing or secondary cleaning. Prevents cross-contamination.
Specifications (partial):
Model
Capacity per Tank (L)
Sonic Power per Tank (W)
Total Sonic Power (W)
Heating per Tank (kW)
CSG192L
192
2×2400
4800
6.0
CSG264L
264
2×3000
6000
7.5
CSG360L
360
2×3600
7200
9.0
CSG560L
560
2×4500
9000
9.0
CSG693L
693
2×5400
10800
18.0
CSG960L
960
2×7200
14400
24.0
Key Features:
Independent controls for each tank (time, temperature, power)
Different cleaning solutions can be used in each tank
One tank washes while the other rinses or drains – higher throughput
Applications:
Multi-variety, small-batch cleaning
Processes requiring two different chemistries
High cleanliness requirements (e.g., pre-plating treatment)

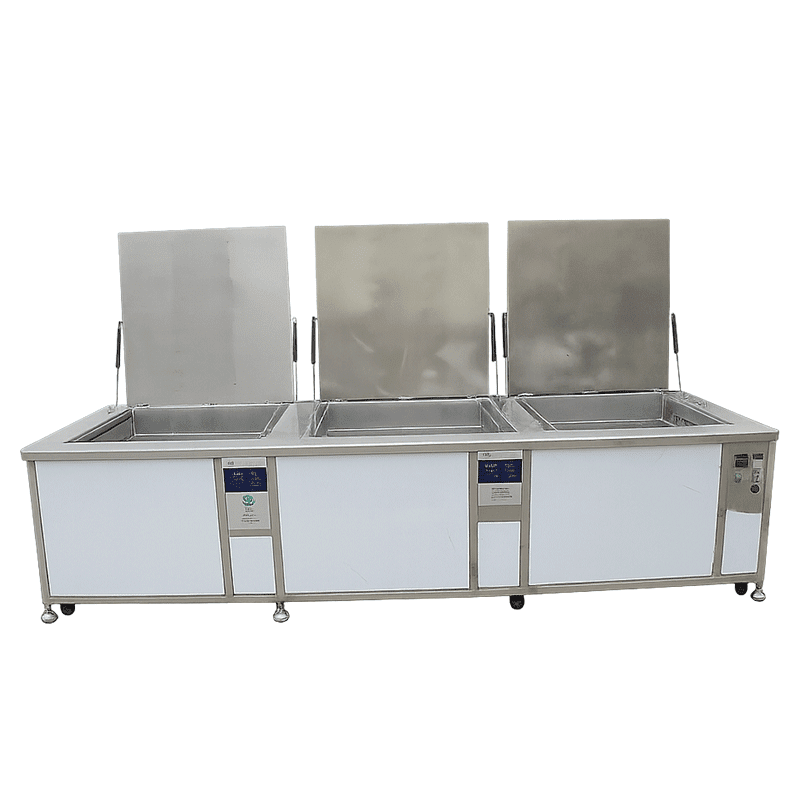

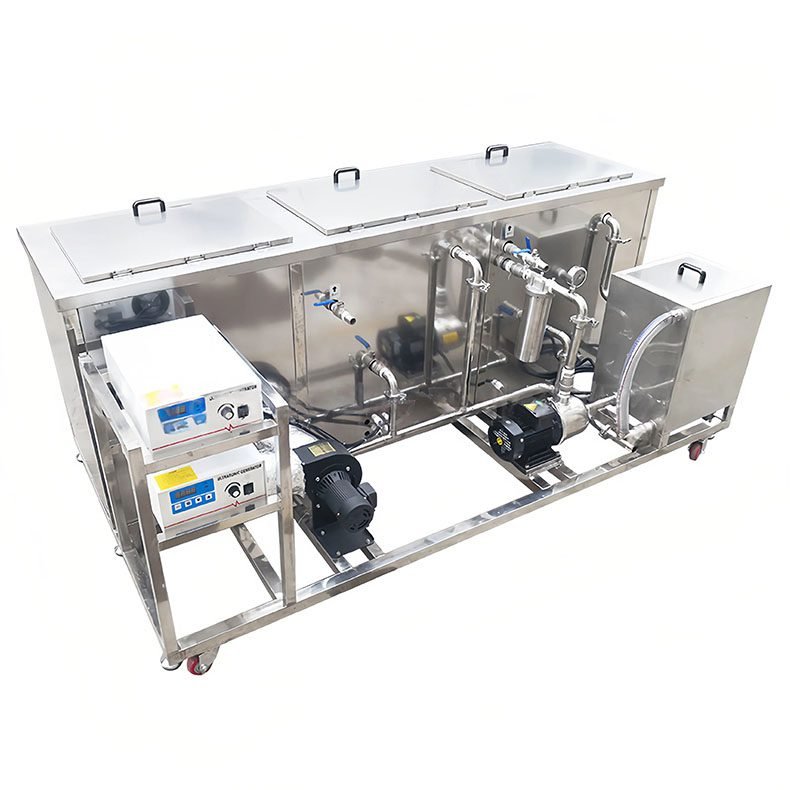

2.6 CSE Series & CSH Series – Three Tank Industrial Ultrasonic Cleaner (Wash + Rinse + Dry)
Market Positioning: Complete three-station cleaning line – ultrasonic washing (with filtration) → rinsing → hot air drying.
CSE693L Example Specifications:
Parameter
Wash Tank
Rinse Tank
Rinse Tank
Capacity (L)
693
693
693
Inner tank size (mm)
1100×900×700
1100×900×700
1100×900×700
Ultrasonic power (W)
5400
5400
—
Heating power (kW)
18
18
9 (drying)
Filtration circulation
Yes
—
—
Temperature
20-95°C
20-95°C
25-150°C
Time
1-99min / continuous
1-99min / continuous
1-99min
Full CSE Series Models:
Model
Capacity (L)
Sonic Power (W)
Heating Config (kW)
Drying Power (W)
CSE192L
192
2×2400
6+6+6
6000
CSE264L
264
2×3000
9+6+6
6000
CSE360L
360
2×3600
9+9+9
9000
CSE560L
560
2×4500
9+9+9
9000
CSE693L
693
2×5400
18+18+9
9000
CSE960L
960
2×7200
24+24+9
9000
Included Accessories: 5 stainless steel baskets, 2 generators, 1 generator rack.
Applications:
High-volume continuous cleaning lines
Automotive engine components
Aerospace precision parts
High-value components requiring strict process control
Market Advantage: One machine replaces three separate units – saves floor space, energy, and labor.

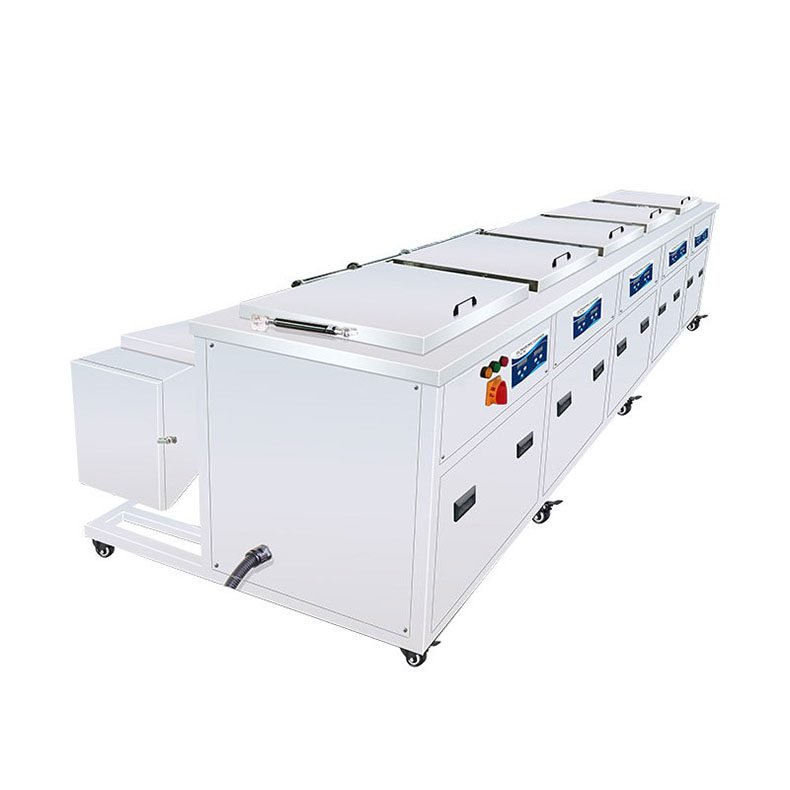

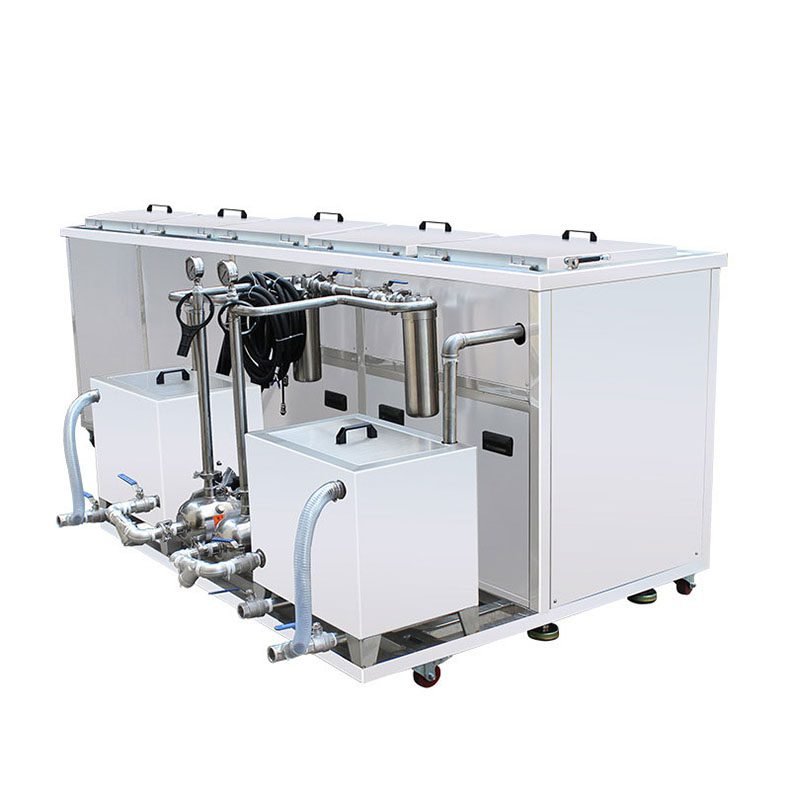

2.7 CS5F Series – Five Tank Ultrasonic Cleaning System (Degrease + Bubble + Spray + Rinse + Dry)
Market Positioning: CLEANINGSONIC’s most comprehensive multi-station cleaning system – for applications demanding the highest cleanliness standards.
Five-Station Configuration:
Station
Function
Description
1
Degreasing
Ultrasonic + filtration + heating – removes heavy oil, heavy rust, wax, carbon
2
Bubbling
Gentle air agitation – ideal for delicate parts or secondary cleaning
3
Spraying
High-pressure spray – reaches blind holes and internal passages
4
Rinsing
Heated immersion rinse – removes detergent residues
5
Drying
Hot air circulation – parts emerge completely dry
Specifications (partial):
Model
Capacity (L)
Sonic Power (W)
Heating (W)
Filter
Spray
Bubble
Drying (W)
Timer
Temp
CS5F45L
Model
45
600
1500
Yes
Yes
Yes
4500
1-99min
20-95°C
CS5F192L
192
2400
6000
Yes
Yes
Yes
6000
1-99min
20-95°C
CS5F360L
360
3600
9000
Yes
Yes
Yes
9000
1-99min
20-95°C
CS5F960L
960
7200
24000
Yes
Yes
Yes
9000
1-99min
20-95°C
Voltage: Three-phase 380V
Applications:
Engine remanufacturing (cylinder heads, blocks)
Aerospace high-precision components
Optical mold cleaning
Medical device pre-sterilization treatment
Market Advantage: Five integrated processes achieve micron-level cleanliness – meets the most stringent quality standards.
Why Choose CLEANINGSONIC
Lower cost per part
Direct factory pricing – no middlemen; filtration circulation saves chemicals; multi-tank saves multiple machine investments
Higher throughput
Dual, triple, and five-tank configurations run simultaneously; drum washer continuous operation; large batch capacity
Better consistency / higher yield
Industrial-grade generators provide stable output; filtration keeps bath clean; standardized time/temp/power controls
Eliminate rework
Multi-stage cleaning completely removes oil, rust, wax, rosin, carbon; drying prevents secondary contamination
Extend tool/mold life
Gentle physical cleaning – no substrate damage; removes corrosive residues
One-stop supplier
Single tank to five tank; plates to rods; industrial to home – complete product range
Fast delivery / fast customization
2-7 days for standard custom; free 3D drawings for custom sizes
- Reply within 24 hrs
Get A Quote
Partner with Cleaningsonic to access high-quality ultrasonic cleaning machines that meet the needs of industries like automotive, electronics, and medical equipment. Our OEM/ODM capabilities, flexible small-order support, and global export experience help you expand your market with confidence. Contact us today to explore how we can elevate your distribution business!
Main Product
Compact Ultrasonic Cleaners for Jewelry
008 Series (0.8L/0.9L)
Heated Ultrasonic Cleaner
009 Series (1.3L)
Ultrasonic Cleaner for Tool Cleaning
010 Series (2L)
Laboratory Medical Cleaning Equipment
020 Series (3.2L)
Professional Grade Cleaning Solutions
030 Series (4.5L)
Industrial Grade Deep Cleaning Equipment
031 Series (6.5L)
Super Power Ultrasonic Cleaner
040 Series (10L)
Industrial Batch Cleaning System
060 Series(15L)
Industrial Ultrasonic Cleaner
080 Series (22L)
Industrial Ultrasonic Cleaning Machine
100 Series (30L)
Blue Light Ultrasonic Cleaner
CS010 Series(480ML)
Ultrasonic Cleaner for Eyeglass Jewelry
CS020 Series (680ML)
2-in-1 Ultrasonic UV Cleaner
200 \201 (230ML)
Immersion Ultrasonic Transducer Plate
CSSQ Series
Neoclassical Sofa
CSRH Series
Immersion Ultrasonic Vibrating Rod
CSCY Series
Filter Circulation Ultrasonic Cleaner
CSD Series
Hot Tags & Keywords
Core Function Keywords:
Adjustable Power Ultrasonic Cleaner Stepless Adjustment Cleaner ST Series Ultrasonic Cleaner Intelligent Power Control Adjustable Impact Force Cleaning
Technical Parameter Keywords:
800Pa Impact Force 60W Transducer 40KHz Industrial Frequency 0-100% Power Adjustment Digital Touch Panel
Application Scenario Keywords:
Precision Electronics Cleaner Jewelry Watch Cleaning Equipment Mold Maintenance Cleaner Multifunctional Repair Cleaning Laboratory Intelligent Cleaning
Capacity Specification Keywords:
Small Adjustable Power Cleaner Medium Industrial Cleaning Equipment Large Capacity Adjustable Power Cleaning Benchtop Intelligent Cleaner Multiple Capacity Options
Value Proposition Keywords:
One Machine Multiple Use Solution Intelligent Cleaning Equipment Energy Efficient Cleaner Process Optimization Tool Technologically Leading Product
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
