CSH Series Three-Tank Industrial Ultrasonic Cleaner | Wash + Rinse + Dry | 192L–960L | 40kHz
CSH Series Three-Tank Industrial Ultrasonic Cleaner – Integrated Wash Tank, Rinse Station, and Filtration Circulation Drying Chamber for Complete Three-Stage Component Processing
Three-Tank Parts Washing and Drying System · 40kHz Ultrasonic Frequency · Dual Generator Configuration · 192L to 960L Capacities · Filter Circulation in Wash Tank · Forced-Air Drying Chamber · Fully Customizable External Dimensions

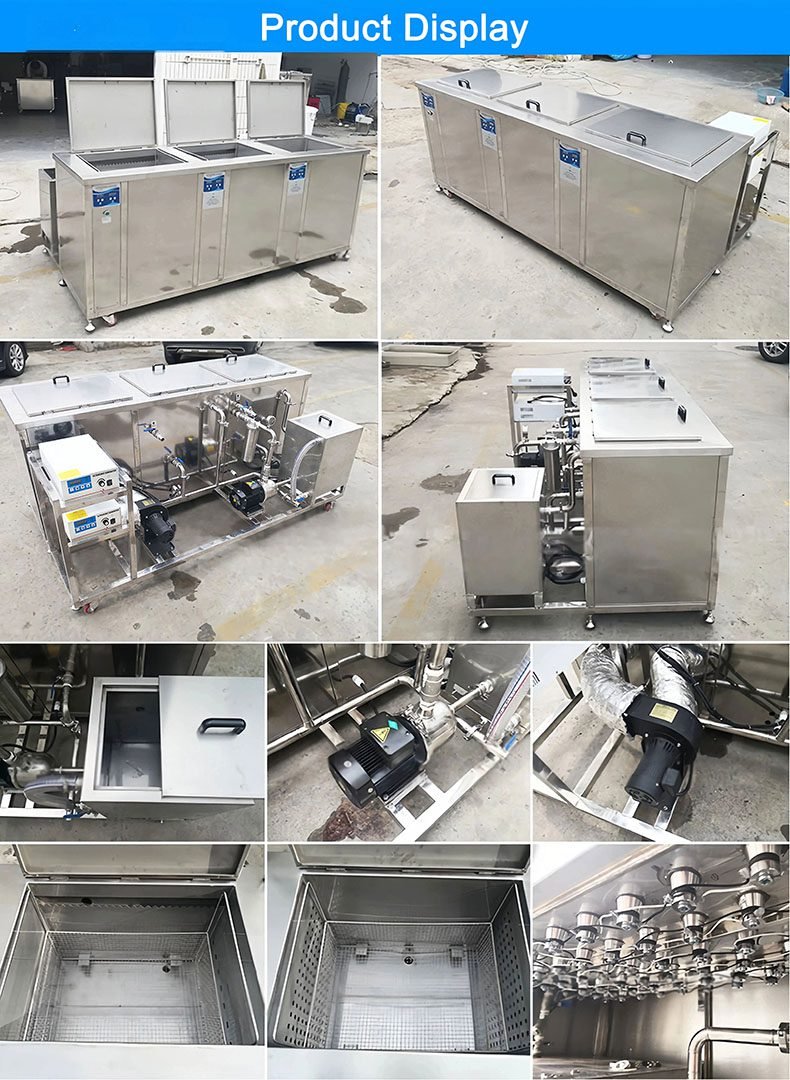

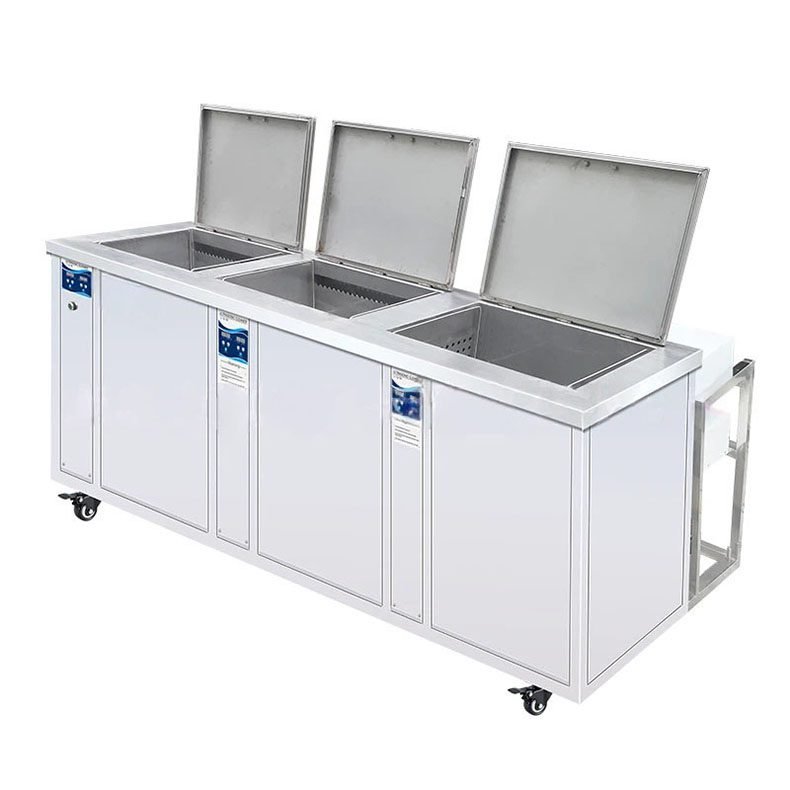

Product Overview – Complete Three-Station Wash-Rinse-Dry System
The CSH Series three-tank industrial ultrasonic cleaner from CLEANINGSONIC is a complete three-stage processing system that combines ultrasonic washing, heated rinsing, and filtration circulation drying in a single integrated footprint. This three-compartment parts cleaning and drying line is designed for manufacturing environments requiring the highest level of cleanliness with minimal operator intervention.
Why choose the CSH Series three-stage industrial cleaning system:
✅ Three complete processing stations – Wash, rinse, and dry in one integrated system
✅ 40kHz ultrasonic frequency – Optimized for industrial degreasing, rust removal, and particulate elimination
✅ Dual ultrasonic power configuration – 2×2400W up to 2×7200W per wash tank
✅ Filter circulation in wash tank – Removes floating oil and suspended solids – extends cleaning solution life
✅ Dedicated rinse station – Heated rinse for thorough detergent elimination
✅ Integrated drying chamber – Forced-air drying with filtration circulation – parts emerge completely dry
✅ High-capacity range – 192L to 960L per tank – accommodates large components
✅ Custom external dimensions – Determined based on actual production requirements

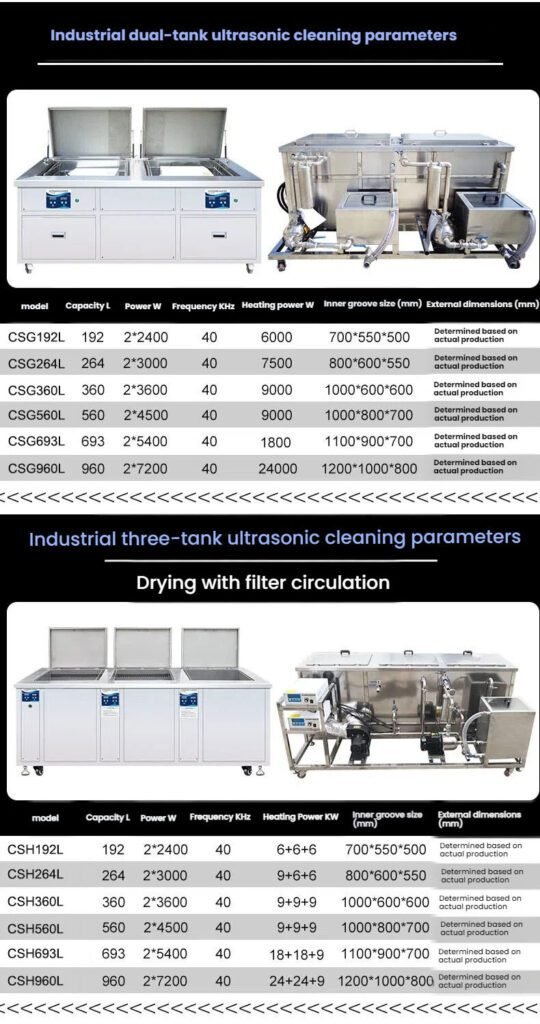

Available CSH Series three-tank ultrasonic cleaning models:
Model
Capacity per Tank (L)
Ultrasonic Power (W)
Total Ultrasonic Power (W)
Frequency (kHz)
Heating Power Configuration (kW)
Inner Tank Size (mm)
CSH192L
192
2×2400
4800
40
6+6+6 (18 total)
700×550×500
CSH264L
264
2×3000
6000
40
9+6+6 (21 total)
800×600×550
CSH360L
360
2×3600
7200
40
9+9+9 (27 total)
1000×600×600
CSH560L
560
2×4500
9000
40
9+9+9 (27 total)
1000×800×700
CSH693L
693
2×5400
10800
40
18+18+9 (45 total)
1100×900×700
CSH960L
960
2×7200
14400
40
24+24+9 (57 total)
1200×1000×800
Note: External dimensions are determined based on actual production. Please consult our sales engineers for exact dimensional drawings.
Station-by-Station Breakdown – Three-Tank Workflow

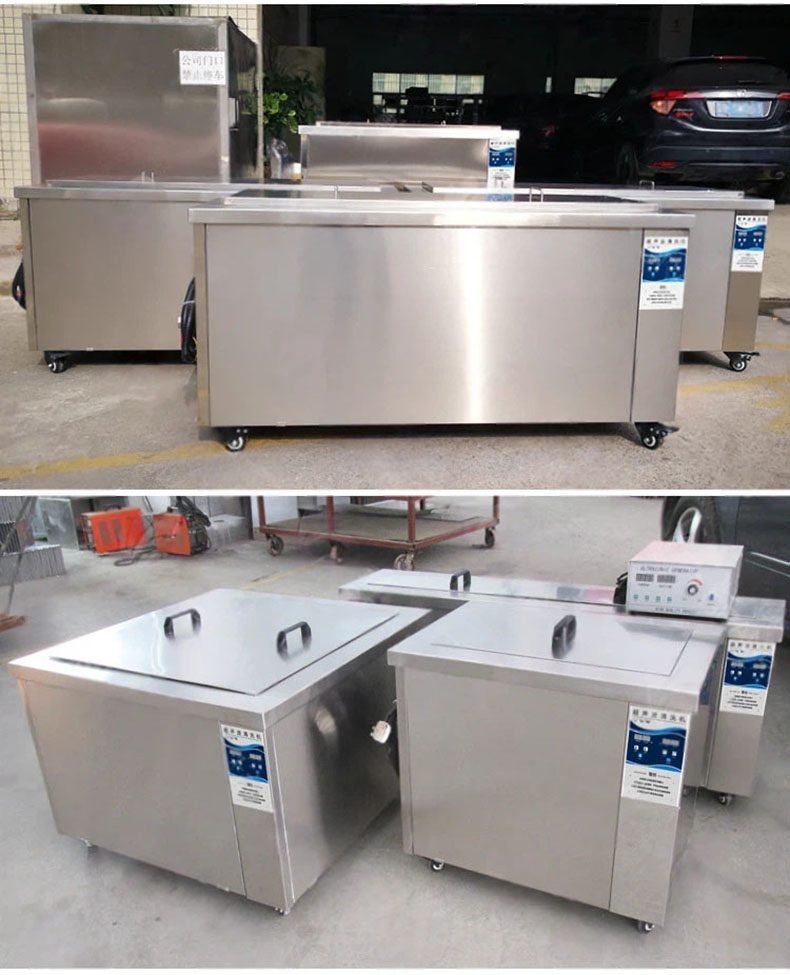

Station One: Ultrasonic Wash Tank with Filter Circulation
Parameter
Specification
Ultrasonic power
2×2400W to 2×7200W (dual generator configuration)
Ultrasonic frequency
40 kHz (other frequencies available on request)
Heating power
6kW to 24kW (depending on model)
Filtration circulation
Built-in pump and filter – removes floating oil and suspended solids
Temperature range
Ambient to 80-95°C (adjustable)
Timer range
0-99 minutes or continuous operation
What the wash station removes: Heavy hydrocarbon deposits, surface oxidation and light rust, wax films and buffing compounds, production dust and metal fines, flux residues, carbon deposits.
Station Two: Heated Rinse Station
Parameter
Specification
Heating power
6kW to 24kW (depending on model)
Temperature range
Ambient to 80-95°C (adjustable)
Timer range
0-99 minutes or continuous operation
Action type
Immersion rinse (can be customized to bubbling or high-pressure spray)
Why a dedicated rinse station matters:
Removes all residual cleaning chemicals from part surfaces
Washes away loosened soils not fully displaced during ultrasonic stage
Prevents chemical residues from drying onto parts
Station Three: Filtration Circulation Drying Chamber
Parameter
Specification
Drying power
6kW to 9kW depending on model
Drying method
Forced-air circulation with filtration
Drying temperature
adjustable
Timer
adjustable
Completion alarm
Automatic audible alarm when drying cycle finishes
Benefits of integrated drying in the CSH three-tank system:
Rapid moisture removal – parts emerge completely dry
Oxidation prevention – immediate drying prevents flash rusting
No secondary handling – no need to transfer wet parts to separate drying equipment
The complete three-stage workflow on the CSH Series:
DIRTY PARTS → Wash Tank (Ultrasonic + Filtration + Heat) → Rinse Tank (Heated) → Drying Chamber (Forced-Air with Filtration) → CLEAN & DRY PARTS
Complete Technical Specifications – CSH Series Three-Tank Cleaner
Parameter
CSH192L
CSH264L
CSH360L
CSH560L
CSH693L
CSH960L
Capacity per tank (L)
192
264
360
560
693
960
Ultrasonic power (W)
2×2400
2×3000
2×3600
2×4500
2×5400
2×7200
Total ultrasonic power (W)
4800
6000
7200
9000
10800
14400
Operating frequency (kHz)
40
40
40
40
40
40
Heating – Tank 1 (kW)
6
9
9
9
18
24
Heating – Tank 2 (kW)
6
6
9
9
18
24
Heating – Tank 3 (kW)
6
6
9
9
9
9
Total heating/drying power (kW)
18
21
27
27
45
57
Inner tank dimensions (mm)
700×550×500
800×600×550
1000×600×600
1000×800×700
1100×900×700
1200×1000×800
External dimension
Custom
Custom
Custom
Custom
Custom
Custom
General specifications across all CSH three-tank models:
Parameter
Parameter
Standard ultrasonic frequency
40 kHz (20/28/68/80/120kHz available on request)
Tank material
Thickened SUS304 stainless steel (SUS316 optional)
Construction method
Seamless double welding (inside and out) – shockproof and crack-resistant
Timer range (each tank)
0-99 minutes or continuous operation
Temperature range (Tank 1 & 2)
Ambient to 80-95°C (adjustable)
Drying temperature (Tank 3)
Ambient to 120°C (adjustable)
Filtration system
Built-in pump and filter on Tank 1 – extends cleaning agent life
Drying method
Forced-air circulation with filtration
Drain valves
Large-diameter stainless steel (3x – one per tank)
Generator type
Industrial drive version with independently developed circuit boards
Filter Circulation in Wash Tank – Extending Cleaning Solution Life
The CSH Series three-compartment industrial cleaning system includes a built-in filter circulation system on Tank One (Ultrasonic Wash).
How the filtration system works:
Component
Function
Circulation pump
Continuously draws cleaning solution from the wash tank
Filter housing
Captures suspended solids, metal fines, and particulate matter
Oil skimmer / separator
Removes floating oil and hydrocarbon films from solution surface
Return line
Filtered, clean solution returned to wash tank
Benefits of filter circulation on the CSH three-tank system:
Benefit
Impact on Your Operation
Extended solution life
Cleaning chemistry remains effective 3-5x longer than unfiltered systems
Reduced chemical costs
Fewer bath changes = less detergent consumption
Lower waste disposal
Less contaminated solution to dispose of
Consistent cleaning quality
Parts are not recontaminated by dirty solution
Less downtime
Fewer interruptions for draining and refilling tanks

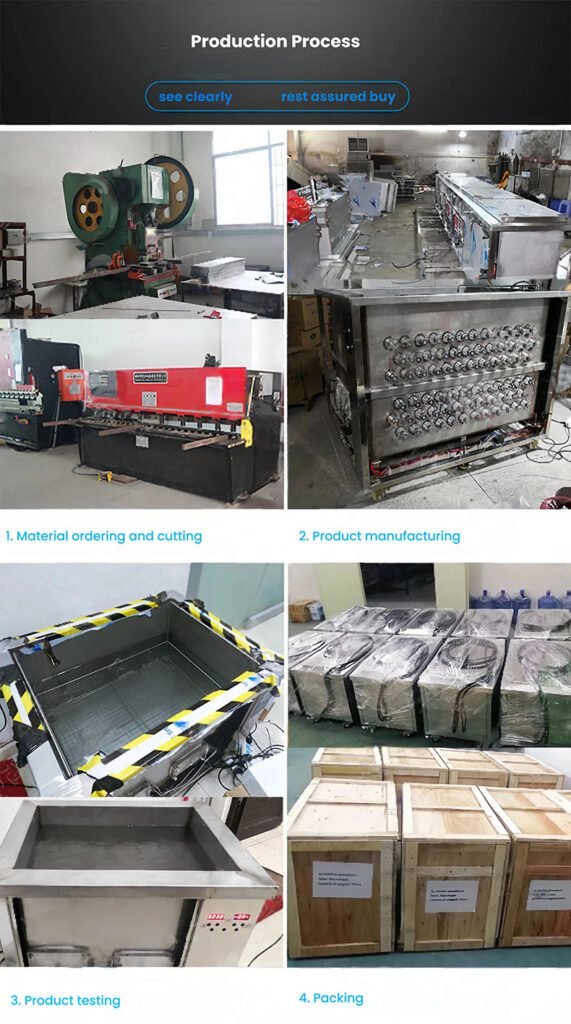

Construction and Build Quality – CSH Series
The CSH Series three-station parts cleaning and drying system is built for heavy-duty industrial use.
Component Type
Specification
Before Condition
Benefit
Tank material
Thickened SUS304 stainless steel
Corrosion-resistant, warp-resistant
Construction method
Seamless double welding (inside and out)
Shockproof, crack-resistant
Exterior cladding
Stainless steel (1.0mm thick)
Professional appearance, easy to clean
Support frame
Square tube steel
Rigid, vibration-dampening
Drain valves
Large-diameter stainless steel (3x)
Fast draining per tank
Casters
High-quality locking casters
Easy positioning, stable operation
Cleaning Performance – CSH Series Three-Tank System
The CSH Series three-tank industrial parts washer delivers exceptional cleaning results across a wide range of industrial components and contaminants.
Contaminant Type
Removal Effectiveness
Typical Wash Time
Rinse Time
Dry Time
Heavy oil / grease
✅ Excellent
8-12 min
2-3 min
8-10 min
Light rust / oxidation
✅ Very good
10-15 min
2-3 min
8-10 min
Wax / buffing compound
✅ Good
8-12 min
2-3 min
8-10 min
Rosin / flux
✅ Good
5-10 min
2-3 min
8-10 min
Carbon deposits
✅ Very good
10-15 min
3-5 min
10-12 min

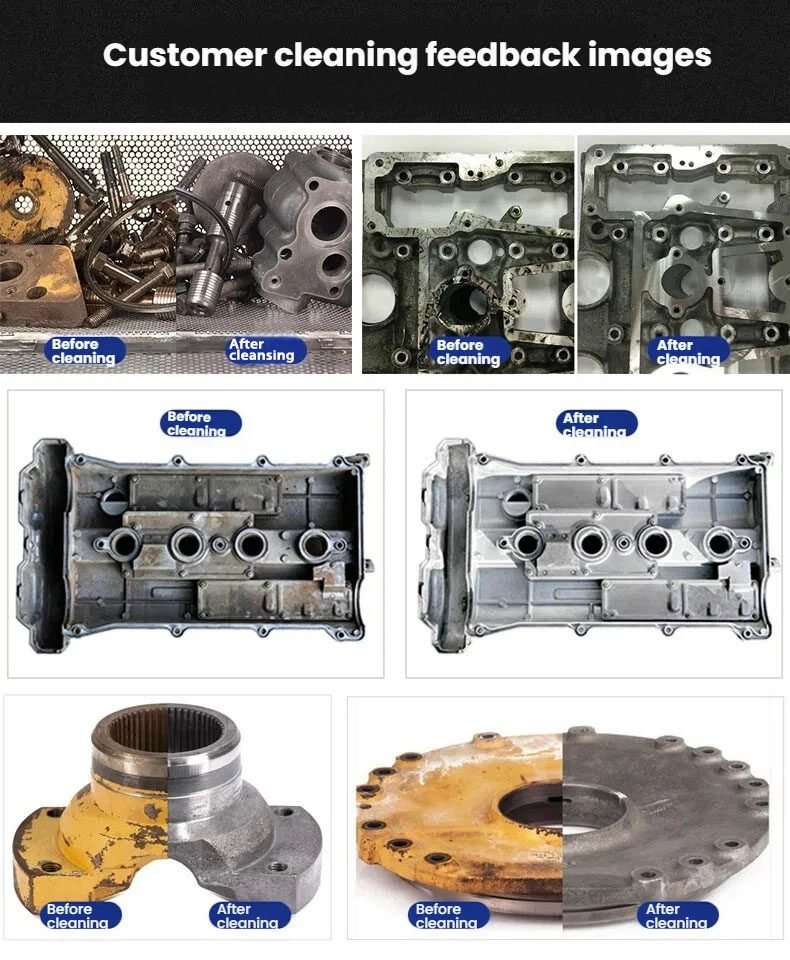

Customer-reported results using CSH Series three-tank cleaning equipment:
Contaminant Type
Contaminant
Result
Hardware parts
Heavy oil, rust
Clean, dry, ready for packaging
Auto parts
Cutting oil, carbon, grease
Complete soil removal, dry finish
Motorcycle components
Road grime, oxidation
Restored to like-new, dry condition
Circuit boards
Rosin flux residue
Clean, dry, ready for next assembly stage
Medical tools
Protein residues, polishing compounds
Sterile-ready, completely dry

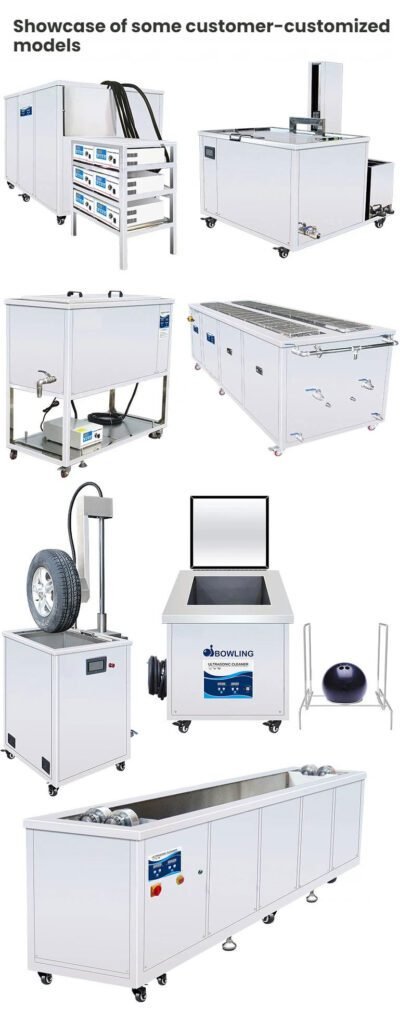

Customization Options – Your CSH Series Three-Tank System
The CSH Series three-stage ultrasonic cleaning line can be customized to match your exact requirements:
Customization Area
Available Options
Tank dimensions
Longer, wider, or deeper based on your largest component
Ultrasonic frequency per tank
20/28/40/68/80/120kHz – can be different across tanks
Ultrasonic power
Upgradable for heavier soil loads
Tank Two configuration
Heated rinse / Bubbling rinse / High-pressure spray rinse
Tank Three configuration
Forced-air dry / HEPA-filtered drying / Extended temperature range
Filtration system
Add to Tank Two or Tank Three as needed
Voltage
Single-phase 110V/220V or three-phase 380V
Plug type
Chinese, American, Australian, European, British standards
Power Supply and Plug Options – CSH Series
The CSH Series three-tank ultrasonic cleaning equipment can be configured with multiple power supply options:
Plug Type
Voltage Rating
Target Region
Chinese national standard
220V-240V
Mainland China
North American standard
100V-120V
USA, Canada, Japan, Taiwan
Australian/New Zealand standard
220V-240V
Australia, New Zealand
European standard
220V-240V
European Union
British standard
220V-240V
UK, Ireland, Singapore, Hong Kong
Three-phase 380V configuration is standard for larger CSH models (CSH360L and above) due to the high total heating power (up to 57kW).
Why Choose CLEANINGSONIC for CSG and CSH Series?
Advantage
Value to You
15+ years R&D experience
Deep engineering expertise in multi-tank ultrasonic cleaning systems
Source manufacturer
No middlemen – factory direct pricing
1-year warranty
Full parts and technical support
Lifetime maintenance
Ongoing factory support
Independently developed circuit boards
Proprietary generator design for reliable ultrasonic output
Industrial vibrating heads
Powerful, uniform cavitation – cleaning is faster and more thorough
Precision manufacturing
Thickened SUS304/316 tanks, seamless double welding
Excellent word-of-mouth
Trusted by customers worldwide
2-7 day delivery
Fast turnaround for standard customizations
Seeking domestic and international distributors. For 15 years, CLEANINGSONIC has focused on just one thing: making industrial cleaning easier.
Send Inquiry
Request a Custom Quote – CSG Series Dual-Tank or CSH Series Three-Tank Ultrasonic Cleaning System
Share your multi-stage cleaning requirements with our engineering team:
Which series do you need? CSG (Dual-Tank) or CSH (Three-Tank with Drying)
What are the dimensions and material of your largest component?
What contaminants need to be removed? (heavy oil, rust, wax, rosin, carbon, or combination)
What is your required throughput (components per hour or per shift)?
Do you have any voltage or plug preference? (110V, 220V, 380V; any global plug standard)
Response time: Within 2 business hours
