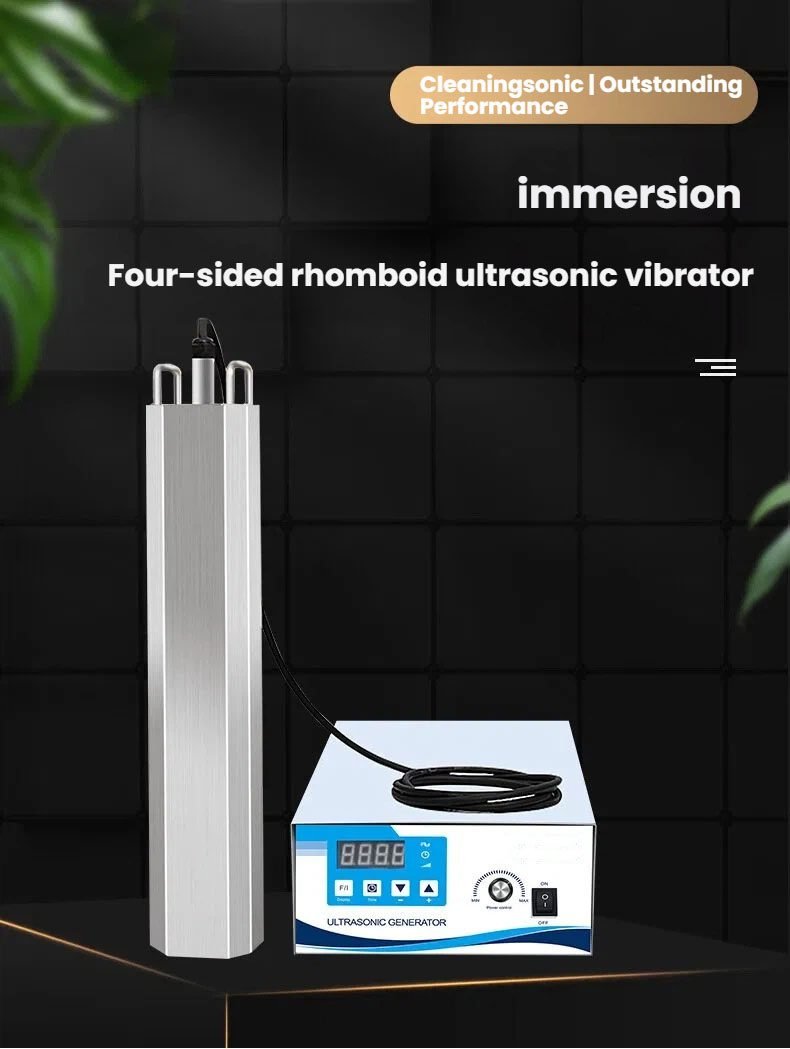

CSRH Series Four-Sided Rhomboid Ultrasonic Vibrator | Immersion Probe | 600W–3000W | 300mm–1500mm Length
CSRH Series four-sided rhomboid ultrasonic vibrator (immersion probe / vibrating rod) for cleaning, dispersion, mixing, defoaming, and emulsification. 600W–3000W power, 300mm–1500mm length, 304 stainless steel, 40kHz. Adjustable power 0-100%, timer 1-99 min.
CSRH Series Four-Sided Rhomboid Ultrasonic Vibrator – Immersion Probe for Cleaning, Dispersion, Mixing, Defoaming, and Emulsification
Ultrasonic Vibrating Rod with 360° Cavitation · 600W to 3000W Adjustable Power · 300mm to 1500mm Length Options · 2.5mm 304 Stainless Steel · 40kHz Frequency · 0-100% Power Control · 1-99 Minute Timer · 3D Cooling System
Product Overview – Four-Sided Rhomboid Ultrasonic Vibrator for Versatile Applications
The CSRH Series four-sided rhomboid ultrasonic vibrator (also known as an immersion ultrasonic probe, submersible ultrasonic rod, or ultrasonic vibrating rod) is a versatile probe-style sonicator designed for both liquid processing and immersion cleaning applications. Unlike traditional single-sided transducer plates, this rhomboid-shaped ultrasonic vibrator emits cavitation energy from four sides, providing 360° ultrasonic coverage for superior performance.
What makes the CSRH Series different from standard ultrasonic transducers:
Feature
CSRH Rhomboid Vibrator
Standard Transducer Plate
Emission pattern
Four-sided (360° coverage)
Single-sided directional
Application range
Cleaning + dispersion + mixing + defoaming + emulsification
Primarily cleaning only
Installation
Immersion (drop into any container)
Requires tank mounting
Portability
Easy to move between tanks
Fixed installation
Cavitation uniformity
Radial distribution
Planar distribution
Why choose the CSRH Series four-sided rhomboid ultrasonic vibrator:
✅ Four-sided rhomboid design – 360° ultrasonic cavitation emission for uniform processing
✅ 600W to 3000W adjustable power – 9 power levels for different tank sizes and applications
✅ 300mm to 1500mm length options – Standard lengths for various container depths
✅ 2.5mm 304 stainless steel construction – Acid and alkali resistant, durable, easy to clean
✅ 40kHz frequency – Optimized for cleaning, dispersion, mixing, defoaming, and emulsification
✅ 0-100% adjustable power – Fine-tune ultrasonic intensity for different materials and processes
✅ 1-99 minute adjustable timer – Precise cycle control
✅ Factory self-developed generator – Three-phase plug, industrial-grade electronics
✅ 3D cooling system – Fast heat dissipation and protection circuit – extends service life

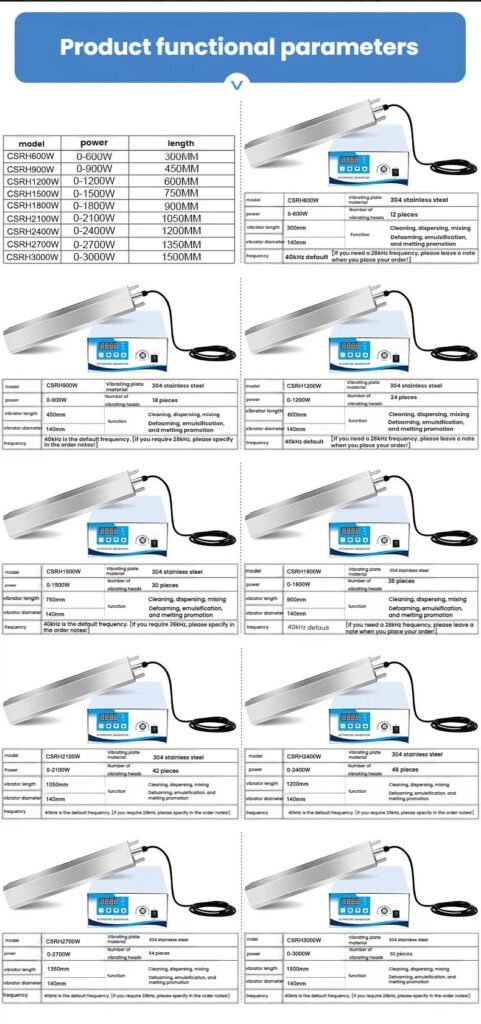

Complete Technical Specifications – CSRH Series
Model
Power Range (W)
Length (mm)
Material
Thickness (mm)
Frequency (kHz)
Voltage
Timer
Power Control
CSRH600W
0-600
300
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
CSRH900W
0-900
450
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
CSRH1200W
0-1200
600
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
CSRH1500W
0-1500
750
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
CSRH1800W
0-1800
900
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
CSRH2100W
0-2100
1050
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
CSRH2400W
0-2400
1200
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
CSRH2700W
3m
0-2700
1350
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
CSRH3000W
0-3000
1500
304 SS
2.5
40
AC220-240V
1-99 min
0-100%
General specifications across all CSRH models:
Parameter
Specification
Vibrator shape
Four-sided rhomboid – 360° ultrasonic emission
Material
304 stainless steel (acid and alkali resistant)
Thickness
2.5mm – thicker than standard for durability
Standard frequency
40 kHz
Power adjustment
0-100% continuously adjustable
Timer range
1-99 minutes (adjustable)
Generator type
Factory self-developed – industrial-grade electronics
Display
Digital display window with menu navigation
Controls
Time adjustment buttons (time+, time-), power potentiometer, power switch, F/I button
Cooling system
3D cooling system – fast heat dissipation and protection circuit

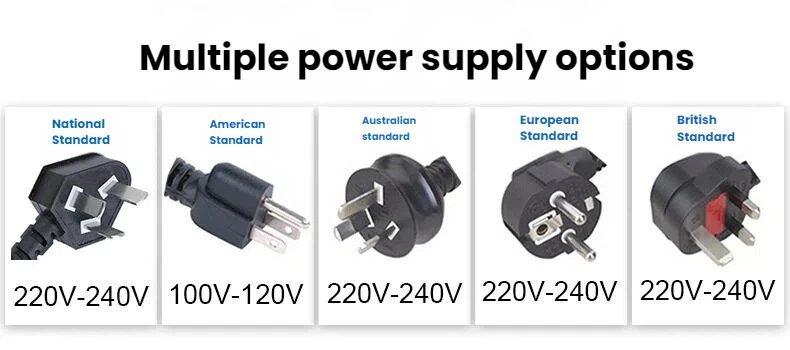

Plug options
Chinese, American, Australian, European, British standards

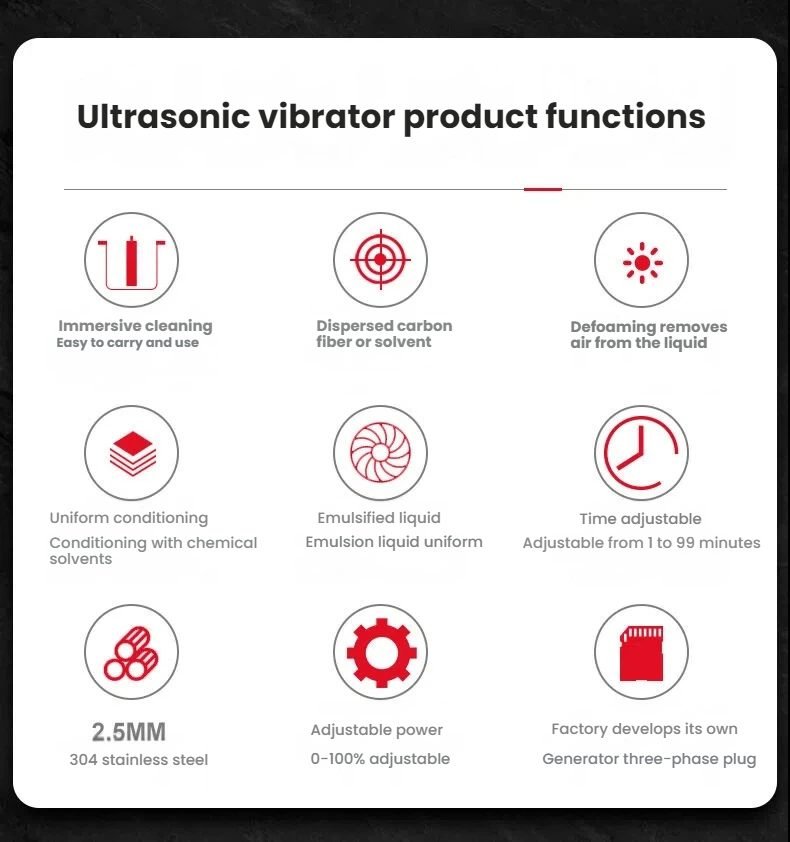

Product Functions – Five Core Applications
The CSRH Series four-sided rhomboid ultrasonic vibrator is designed for five primary functions:
Function 1: Immersive Cleaning
Parameter
Specification
Application
Industrial parts cleaning, contaminant removal
Mechanism
Ultrasonic cavitation dislodges oil, rust, wax, and particulates
Advantage
Easy to carry and use – simply immerse in any compatible tank
Function 2: Dispersion (Carbon Fiber, Suspension, Graphene)
Parameter
Specification
Application
Dispersing carbon fiber, suspended particles, graphene powder
Mechanism
Ultrasonic energy breaks agglomerates and evenly distributes particles
Advantage
Uniform dispersion – no clumping or sedimentation
Function 3: Liquid Defoaming and Degassing
Parameter
Description
Application
Removing air bubbles and dissolved gases from liquids
Mechanism
Ultrasonic cavitation causes bubbles to coalesce and rise to surface
Advantage
Defoaming removes air from the liquid – improves product quality
Function 4: Mixing and Uniform Conditioning
Parameter
Description
Application
Mixing chemical solvents, blending liquids
Mechanism
Ultrasonic agitation creates micro-turbulence for thorough mixing
Advantage
Uniform conditioning – consistent results batch after batch
Function 5: Emulsification
Parameter
Description
Application
Creating stable emulsions from immiscible liquids
Mechanism
Ultrasonic energy breaks droplets into microscopic sizes
Advantage
Emulsified liquid is uniform and stable
Why the Four-Sided Rhomboid Design Matters
The CSRH Series immersion ultrasonic probe features a unique four-sided rhomboid shape that delivers superior performance compared to traditional single-sided transducer plates or round probes.
Aspect
Four-Sided Rhomboid Design
Traditional Single-Sided Plate
Traditional Round Probe
Cavitation emission
360° radial pattern
Single-directional
Limited circumferential
Coverage uniformity
Excellent – all sides emit
Poor – only one active side
Moderate
Dead zones
Minimal
Significant behind the plate
Moderate
Installation flexibility
Immersion – no mounting required
Requires mounting on tank surface
Immersion
Processing efficiency
High – 4 active surfaces
Low – 1 active surface
Medium – limited surface area
Why rhomboid shape delivers 360° ultrasonic coverage:
The rhomboid geometry ensures that ultrasonic energy radiates evenly in all directions from the vibrator. When immersed in liquid, cavitation bubbles form uniformly around the entire circumference of the probe, eliminating dead zones and ensuring consistent processing throughout the container.

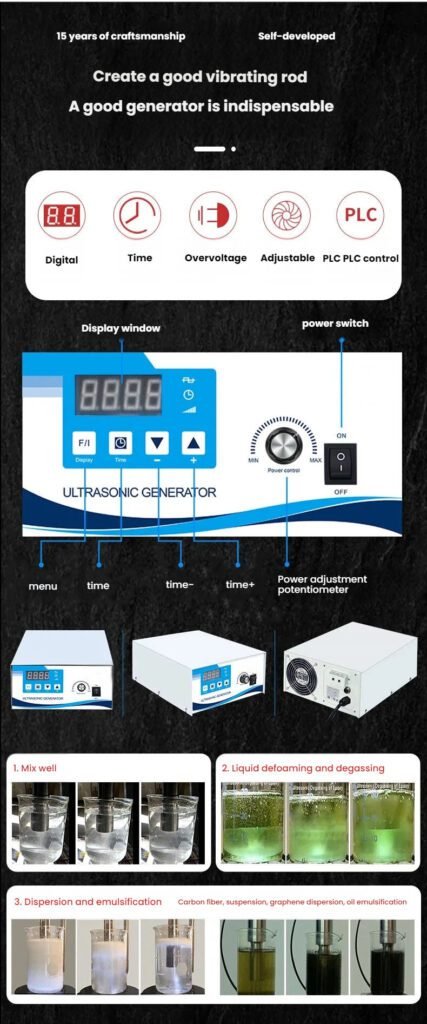

Section 5: Generator Control Panel – Self-Developed Industrial Electronics
Each CSRH Series ultrasonic vibrating rod is paired with a factory self-developed industrial-grade generator featuring:
Control Feature
Specification of ultrasonic vibrator
Function of global voltage options for ultrasonic vibrator
Display window
Digital LED readout
Shows current time and operating status
Menu button
Navigation control
Access and adjust system parameters
F/I button
Function / Interval control
Toggle between functions or set interval operation
Time button
Mode selection
Enter time setting mode
Time+ / Time-
Increment / decrement
Increase or decrease cycle duration (1-99 minutes)
Power switch
ON/OFF
Master power control
Key generator features:
Factory self-developed circuit boards – Full control over design and quality
0-100% adjustable power – Fine-tune ultrasonic intensity for different materials
1-99 minute timer – Precise process control
Three-phase plug – Compatible with industrial power supplies
3D cooling system – Fast heat dissipation and protection circuit – extends service life
Key Features – Engineering Excellence
Feature 1: 2.5mm 304 Stainless Steel Structure
Parameter
Specification of 2.5mm 304 stainless steel rhomboid vibrator, portable immersion probe for multiple tanks
Material
304 stainless steel
Thickness
2.5mm – thicker than standard (industry average is 1.5-2.0mm)
Corrosion resistance
Acid and alkali resistant – suitable for harsh chemicals
Durability
Resists deformation and damage during immersion
Aesthetics
Beautiful and durable – professional appearance
Feature 2: Flexible Installation – Custom Sizes, Power, and Shapes
Capability
Description of mechanical electronics automotive medical cleaning applications
Custom lengths
Beyond standard 300-1500mm range
Custom power
Beyond standard 600-3000W range
Custom shapes
Rhomboid can be modified for specific tank geometries
Installation method
Simple immersion – no tank modification required
Feature 3: 3D Cooling System – Extended Service Life
Parameter
Specification of 2.5mm 304 stainless steel ultrasonic vibrator
Cooling method
3D heat dissipation system
Circuit protection
Fast heat dissipation and protection circuit
Benefit
Extends service life of both generator and transducers
Operation
Enables continuous-duty operation without overheating
Feature 4: 15 Years of Craftsmanship – Self-Developed
Advantage
Description of factory self-developed ultrasonic generator
Experience
15 years of ultrasonic technology development
Integration
Vibrator and generator designed as a matched system
Quality
A good vibrating rod needs a good generator – we make both
Support
Direct factory technical support
Applications – Wide Range of Industries and Processes
The CSRH Series four-sided rhomboid ultrasonic vibrator serves multiple industries and applications:
Cleaning Applications
Industry
Components
Contaminants
Mechanical manufacturing
Machine parts, tools, dies
Oil, grease, chips, rust
Electronics
Circuit boards, connectors
Rosin flux, dust
Watches and jewelry
Watch cases, bands, rings
Polishing compound, skin oils
Automotive
Engine parts, fuel injectors
Carbon, oil, grease
Aerospace
Turbine blades, fittings
Oxidation, hydraulic fluid
Medical
Surgical instruments, implants
Protein residues, blood
Dispersion Applications
Material
Process
Result of industrial-grade electronics for vibrating rod
Carbon fiber
Dispersion in suspension
Evenly distributed fibers, no agglomeration
Graphene powder
Exfoliation and dispersion
High-quality dispersed graphene
Nanoparticles
De-agglomeration
Uniform particle distribution
Pigments and dyes
Dispersion in liquid base
Consistent color, no settling
Mixing and Conditioning Applications
Process
Description of immersive cleaning for industrial parts
Chemical solvent conditioning
Uniform mixing of solvent components
Suspension preparation
Even particle distribution throughout liquid
Oil-water mixing
Temporary or permanent mixtures
Defoaming and Degassing Applications
Process
Benefit of CSRH Series four-sided rhomboid ultrasonic vibrator
Liquid defoaming
Removes air bubbles from production liquids
Degassing
Removes dissolved gases before critical processes
Coating preparation
Bubble-free coatings and films
Emulsification Applications
Process
Description of immersion ultrasonic probe
Oil emulsification
Creating stable oil-water emulsions
Liquid emulsification
Uniform emulsion liquid for further processing
Cosmetic and pharmaceutical emulsions
Fine, stable droplet size

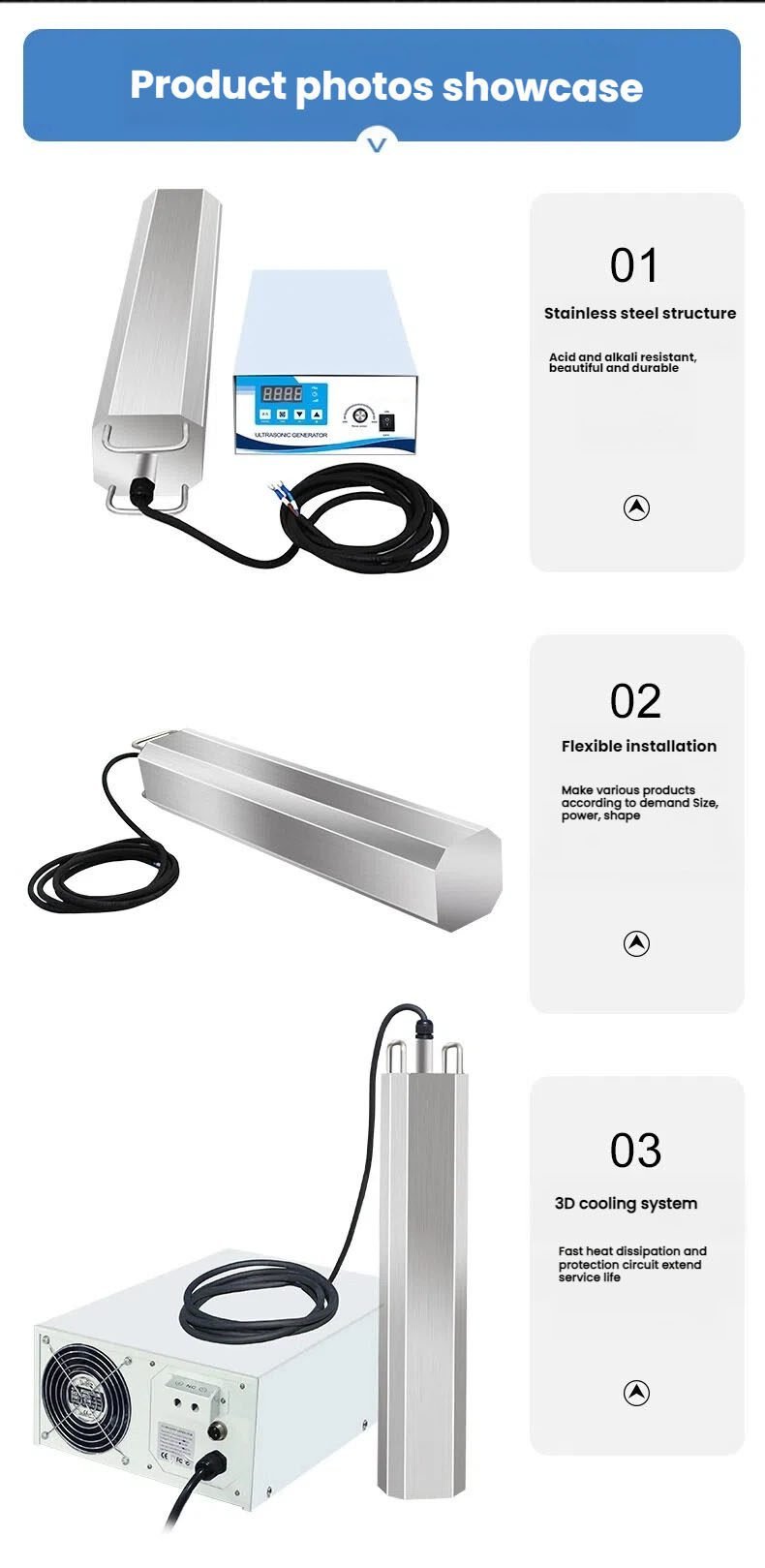

Product Photos Showcase – CSRH Series Quality
Showcase 1: Stainless Steel Structure
Parameter
Detail of submersible ultrasonic rod
Material
2.5mm 304 stainless steel
Finish
Acid and alkali resistant, beautiful and durable
Construction
Four-sided rhomboid shape with sealed ends
Showcase 2: Flexible Installation
Parameter
Detail of ultrasonic vibrating rod
Customization
Various products according to demand – size, power, shape
Portability
Easy to move between different tanks and containers
Retrofit capability
Add ultrasonic capability to any compatible tank
Showcase 3: 3D Cooling System
Parameter
Detail
Cooling design
Fast heat dissipation and protection circuit
Benefit
Extends service life of the entire system
Operation
Continuous-duty operation without overheating
Why Choose CLEANINGSONIC for Your Ultrasonic Vibrator?
Advantage
Value to You
15 years of craftsmanship
Deep engineering expertise in ultrasonic vibrator technology
Self-developed generator
Vibrator and generator designed as a matched system – optimal performance
Create a good vibrating rod – a good generator is indispensable
We manufacture both components in-house
Source manufacturer
No middlemen – factory direct pricing
1-year warranty
Full parts and technical support
Lifetime maintenance support
Ongoing factory assistance
Independently developed circuit boards
Proprietary generator design
4.8 rating / excellent word-of-mouth
Trusted by customers worldwide
2-7 day delivery
Fast turnaround for standard models
Good quality guaranteed
Every unit tested before shipment
Send Inquiry
Request a Quote – CSRH Series Four-Sided Rhomboid Ultrasonic Vibrator / Immersion Probe
Share your application requirements with our engineering team:
What is your primary application? (cleaning / dispersion / mixing / defoaming / emulsification)
What is your tank or container size (depth and diameter)?
What materials do you need to process? (parts, carbon fiber, graphene, chemicals, etc.)
What power level do you need? (600W to 3000W)
What length do you need? (300mm to 1500mm, or custom)
Do you have a voltage and plug preference?
Our engineering team will respond with:
Recommended CSRH model (based on container size and application)
Price quotation
3D drawing (for custom lengths or configurations)
Delivery timeline (2-7 days for standard models)
Response time: Within 2 business hours
Hot Tags
#FourSidedRhomboidUltrasonicVibrator #ImmersionUltrasonicProbe #SubmersibleUltrasonicRod #UltrasonicVibratingRod #ProbeStyleSonicator #PowerCordGeneratorVibratingRod #globalvoltageoptionsforultrasonicvibrator #ultrasonicvibrator #2.5mm304stainlesssteelrhomboidvibrator #portableimmersionprobeformultipletanks #mechanicalelectronicsautomotivemedicalcleaningapplications #2.5mm304stainlesssteelultrasonicvibrator #factoryself-developedultrasonicgenerator #industrial-gradeelectronicsforvibratingrod #immersivecleaningforindustrialparts #immersionultrasonicprobe #submersibleultrasonicrod #ultrasonicvibratingrod #probe-stylesonicator #rhomboid-shapedultrasonicvibrator #360°ultrasoniccavitationemission
