Large Dual-Tank Industrial Cleaning Machine | Degreasing, Rust Removal, Wax & Rosin Removal | Customizable
Large dual-tank industrial cleaning machine for degreasing, heavy oil removal, rust removal, wax removal, and rosin removal. Customizable tank materials (304/316 stainless steel), frequencies (20-200kHz), power (300-10000W), voltage, and add-on functions. Factory direct with 2-7 day delivery.

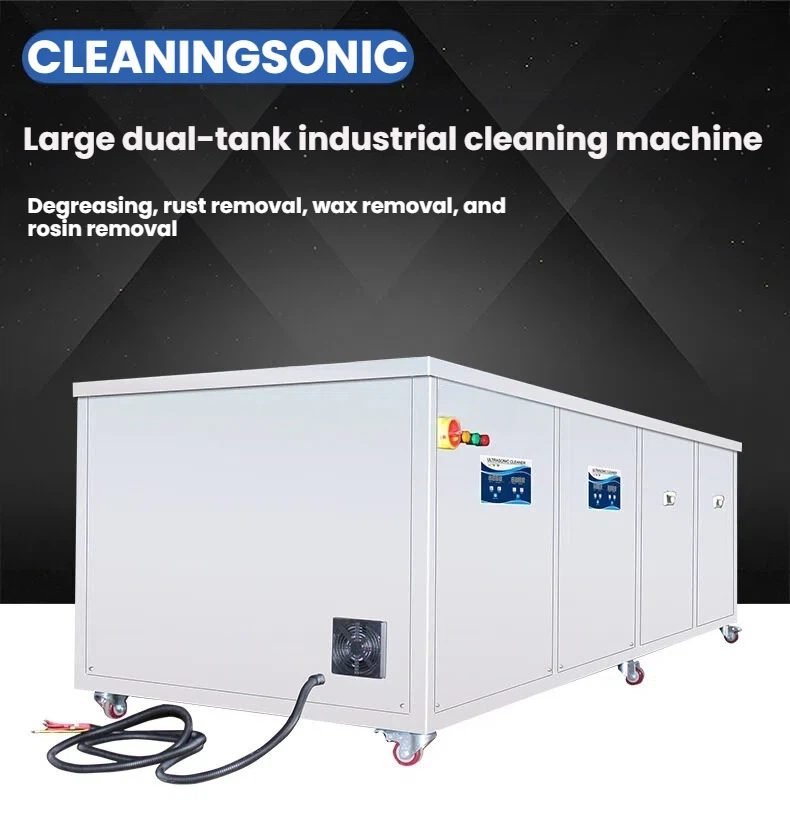

Large Dual-Tank Industrial Cleaning Machine – Degreasing, Rust Removal, Wax Removal, Rosin Removal
Heavy Oil Removal · Heavy Rust Removal · Wax Removal · Rosin Removal · Dust Removal
Product Overview of cleaning solutions for ultrasonic cleaners
The Large Dual-Tank Industrial Cleaning Machine from CLEANINGSONIC is designed for demanding industrial cleaning applications requiring separation of cleaning processes. With two independent tanks, this machine allows operators to perform sequential cleaning steps – such as degreasing followed by rinsing, or rust removal followed by anti-corrosion treatment – without cross-contamination.
This dual-tank cleaning system is ideal for:
Heavy oil removal from machined parts, engine components, and tooling
Heavy rust removal from ferrous parts, castings, and reclaimed components
Wax removal from molded parts, castings, and precision components
Rosin removal from electronics assemblies and soldered boards
Dust removal from sensitive parts before assembly or coating
Available as a customizable industrial cleaning solution, the machine can be tailored to your exact production requirements – from tank material and ultrasonic frequency to voltage, plug type, and additional functions such as filtration circulation, high-pressure spraying, drying, and PLC control.
Key Features of ultrasonic cleaner machine
The dual-tank industrial cleaning machine can be fully customized across every major component:
Tank Material Customization
Material
Corrosion Resistance
Best For
SUS304 stainless steel
Standard
General industrial cleaning
SUS304 chrome-plated
Enhanced
Applications requiring extra surface hardness
SUS316 stainless steel
High
Harsh chemicals, saltwater, acidic solutions
SUS316 chrome-plated
Very high
Maximum corrosion resistance, pharmaceutical, food
Shell Material Customization
Material
Durability
Application
304 stainless steel
Excellent
Standard industrial environments
201 stainless steel
Good
Cost-effective option for light duty
PP (polypropylene)
Chemical resistant
Acid or alkaline baths that corrode steel
Ultrasonic Frequency Customization
Frequency
Force Level
Best Application
20-25 kHz
Very high (aggressive)
Heavy oil, heavy rust, thick carbon, large castings
28-40 kHz
High
General industrial degreasing and rust removal
68-80 kHz
Moderate
Precision parts, delicate surfaces
120-200 kHz
Low (gentle)
Electronics, wafers, optical components, rosin removal
Note: Lower frequency = greater cavitation force. For heavy oil and heavy rust removal, select 20-40 kHz.
Power Customization
Parameter
Range
Ultrasonic power
300 – 10,000 W (customizable per tank)
Heating power
Matched to tank volume and application
Voltage & Plug Customization
Voltage Type
Available Options
Use Case
Single-phase
110V / 220V
Household, small shop, lab
Three-phase
380V
Industrial, factory, heavy production
Plug standards available:
Chinese standard
Australian standard
European standard (EU)
British standard (UK)
American standard (110V)
Add-On Functions (Customizable)
Function
Description
Filtration circulation
Continuous particle removal, extended bath life
High-pressure spraying
Pre-rinse or post-rinse with spray bars
Bubbling
Agitation without ultrasonic for delicate parts
Drying
Hot air drying integrated into second tank
Lifting
Motorized basket lift for heavy parts
Agitation
Mechanical oscillation for enhanced cleaning
Condensation
Vapor recovery for solvent-based cleaning
Slow pull
Controlled basket withdrawal for precision drying
PLC control system
Hot air drying integrated into second t
Programmable logic controller for automated cycles
ank
Technical Specifications (Base Model) of solution for ultrasonic cleaning
Parameter
Specification
Machine type
Integrated dual-tank design
Number of tanks
2
Application field
Hardware industry, industrial manufacturing
Intended use
Industrial cleaning
Tank material
Customizable (304, 304 chrome, 316, 316 chrome)
Shell material
Customizable (304, 201, PP)
Ultrasonic frequency
Customizable: 20 / 25 / 28 / 40 / 68 / 80 / 120 / 168 / 180 / 200 kHz
Ultrasonic power
300 – 10,000 W per tank
Heating power
Matched to tank volume (custom)
Voltage
Single-phase 110V/220V or three-phase 380V
Control system
Standard digital or optional PLC
Delivery time
2-7 days for standard customizations
Note: Tank dimensions are customized based on your part size and production volume. Contact sales for a dimensional drawing.
Why Choose CLEANINGSONIC?
15+ Years of R&D Experience
With 15 years of experience in the research, development, design, and production of ultrasonic cleaning equipment, CLEANINGSONIC brings deep engineering expertise to every custom machine.
Manufacturer Direct
We are a factory, not a trading company. This means:
Lower prices (no middleman markup)
Faster communication with engineers
Direct quality control
Shorter lead times (2-7 days for many custom orders)
1-Year Warranty
Every machine includes:1-year warranty on all components
Independently Developed Circuit Boards
Unlike many competitors who use off-the-shelf generators, CLEANINGSONIC designs and manufactures its own ultrasonic generator circuit boards. This enables:
Better integration with custom tanks
Faster troubleshooting and repairs
Continuous improvement based on customer feedback
Trusted by Customers Worldwide
Strong word-of-mouth and testimonials from satisfied customers across automotive, aerospace, electronics, medical device, and metalworking industries.
Applications & Industries of ultrasonic cleaning machine
The large dual-tank industrial cleaning machine is suitable for:
Industry
Typical Parts
Common Soils
Recommended Frequency
Automotive remanufacturing
Engine blocks, cylinder heads, transmission cases
Heavy oil, carbon, rust
28-40 kHz
Hardware manufacturing
Brackets, fasteners, stamped parts
Cutting oil, dust, light rust
40 kHz
Electronics assembly
PCBs, soldered assemblies, connectors
Rosin flux, dust
80-120 kHz
Metalworking & machining
Machined parts, tooling, dies, molds
Coolant, chips, cutting oil
40 kHz
Aerospace
Turbine blades, hydraulic fittings, landing gear
Heavy oil, oxidation, carbon
28-40 kHz
Medical device
Surgical instruments, implants, trays
Protein residues, dust
80 kHz or higher
Jewelry & watchmaking
Rings, bracelets, watch cases, movements
Polishing compound, wax, dust
80 kHz
Additive manufacturing
3D printed metal or resin parts
Support material, uncured resin, wax
40-80 kHz

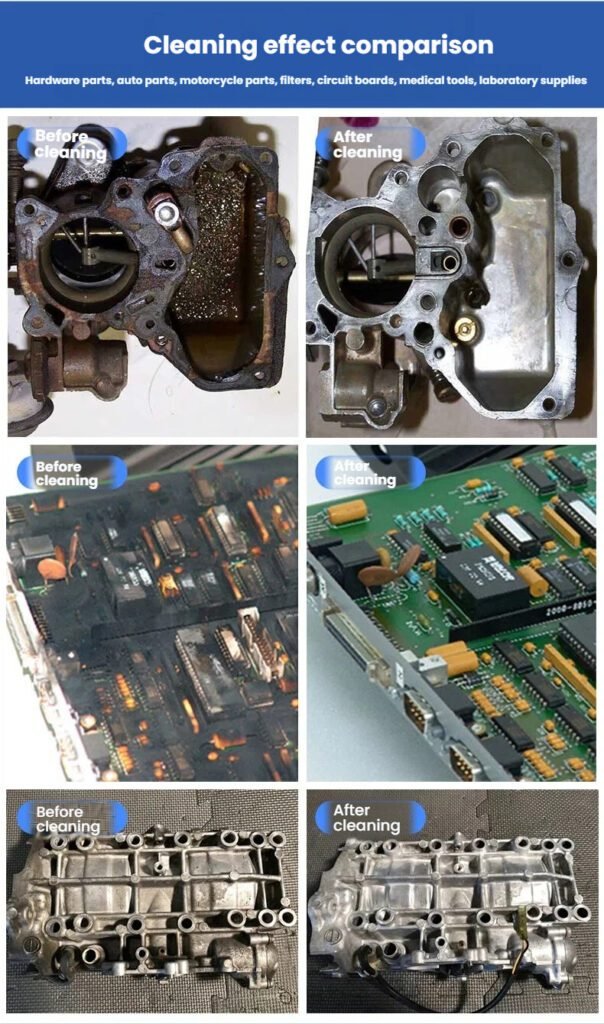

Specific soil removal capabilities:
✅ Heavy oil removal – 20-40 kHz with alkaline degreaser
✅ Heavy rust removal – 20-40 kHz with acid-based rust remover
✅ Wax removal – 40-80 kHz with heated solution or emulsion
✅ Rosin removal – 80-120 kHz with saponifier or solvent emulsion
✅ Dust removal – Any frequency with mild detergent

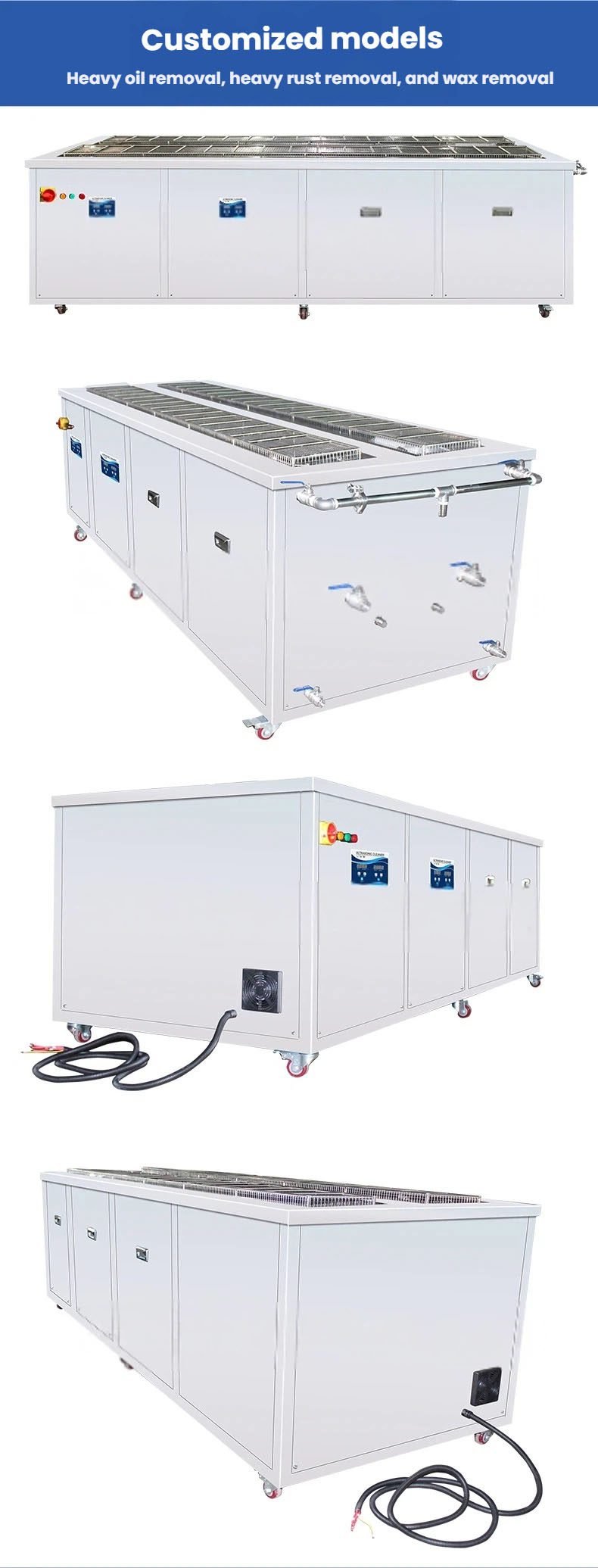

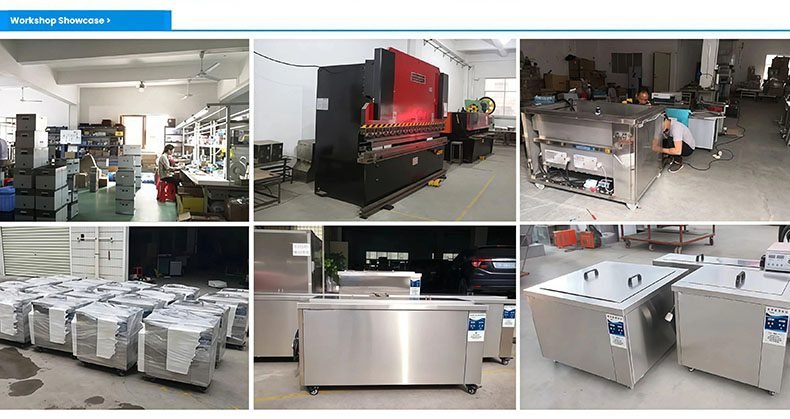

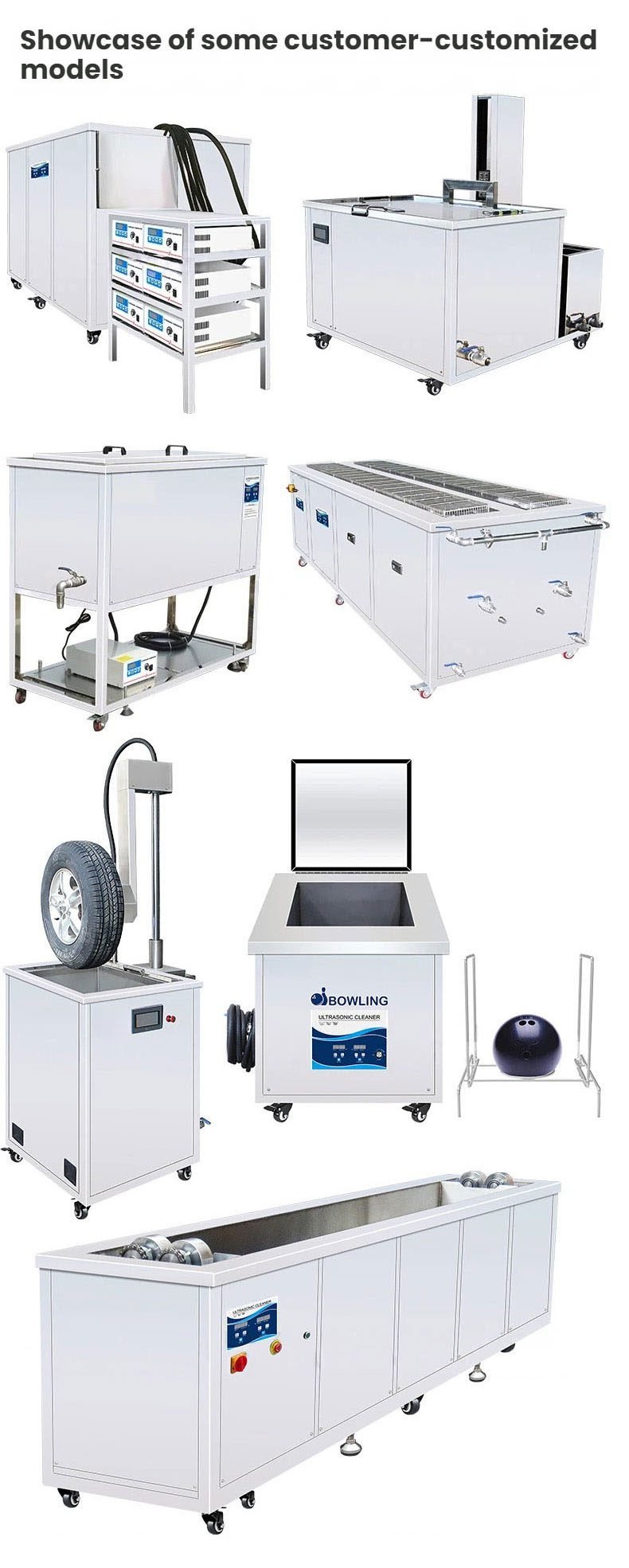

Workshop Showcase & Customized Models
CLEANINGSONIC has delivered customized dual-tank machines to customers across multiple industries, including specialized units for:
Bowling equipment maintenance – Cleaning bowling balls and pins
Automotive parts remanufacturing – Multi-step degreasing and rust removal
Electronics recycling – Rosin and flux removal from circuit boards
Precision machining – Oil removal followed by anti-corrosion rinse
Customization examples delivered:
Customer Type
Customization Request
Solution Provided
Electronics manufacturer
Rosin removal from delicate PCBs
Dual-tank with 120kHz frequency, filtration circulation, slow-pull drying
Automotive
Heavy rust removal from engine
28kHz in tank 1 (rust removal), 40kHz in tank 2
remanufacturer
blocks
(rinse + inhibitor)
Aerospace supplier
Clean hydraulic fittings without water spotting
40kHz with heated solution + high-pressure spray + hot air drying
Jewelry workshop
Polish wax removal from rings
80kHz dual-tank with heated wax-emulsifying solution
Optional Function Explanations of ultrasonic cleaner
Function
Description
Best For
Filtration circulation
Pump and filter continuously remove particles from solution
Precision parts, extended bath life
High-pressure spraying
Spray nozzles inside tank for pre-rinse or post-rinse
Removing loose debris before ultrasonic, final rinse
Bubbling
Air injection for solution agitation without cavitation
Delicate parts that cannot tolerate ultrasonic
Drying
Heated air blower and exhaust
Parts that must be dry immediately after cleaning
Lifting
Motorized hoist to raise and lower basket
Heavy parts (over 25 kg)
Agitation
Mechanical oscillation of basket
Enhancing mechanical action alongside ultrasonic
Condensation
Vapor recovery system
Solvent-based cleaning, VOC compliance
Slow pull
Controlled linear withdrawal from solution
Preventing water spots, controlled drying
PLC control system
Fully programmable cycles with touchscreen HMI
Automated production lines, repeatable recipes
Send Inquiry
Request a Custom Quote for Your Dual-Tank Industrial Cleaning Machine
Tell us your requirements:
Part size and weight – to determine tank dimensions and lift needs
Contaminant type – heavy oil, rust, wax, rosin, dust, or combination
Desired throughput – parts per hour or batches per shift
Preferred voltage and plug type – 110V/220V single-phase or 380V three-phase
Any add-on functions – filtration, drying, lifting, PLC, etc.
