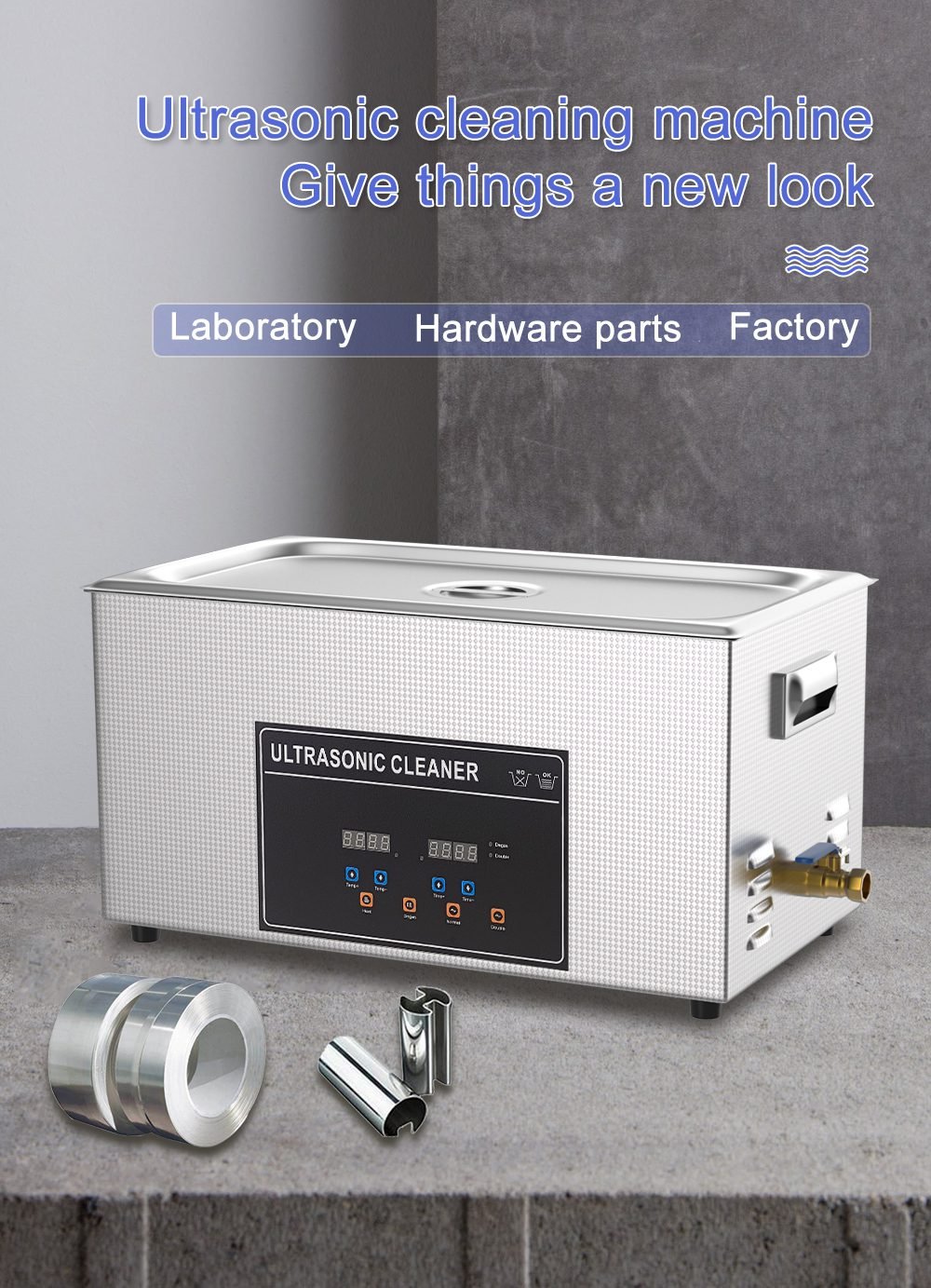

080 Series Industrial Ultrasonic Cleaning Machine - 40KHz Frequency | 22L Smart Digital Control | Global Power Options
Product Overview of Automotive Parts Ultrasonic Cleaning Solution
The Cleaningsonic 080 Series represents excellence in industrial ultrasonic cleaning technology, specifically designed to meet the stringent requirements of the German and European markets for precision cleaning, efficient production, and cost control. This series integrates 40KHz high-frequency transducer technology, intelligent temperature control systems, and modular power configurations, providing industrial distributors with a complete cleaning equipment solution.
As a professional Chinese ultrasonic cleaner manufacturer, we understand the core needs of B2B distribution business: stable product quality, flexible customization options, timely technical support, and competitive pricing. The 080 Series perfectly embodies these value propositions and has successfully entered major European markets including Germany, France, and the UK, becoming a core profit product for numerous industrial distributors.
Technical Specifications of Electronic Components Precision Cleaning Equipment
Basic Configuration
Item
Specifications
Product Series
080 / 080S / 080ST / 080SD
Ultrasonic Frequency
40 KHz (±3%)
Tank Material
304 Stainless Steel (SUS304), 1.2-1.5mm thickness
Heating Power
Standard 1000W, optional configurations
Temperature Range
20 – 80°C adjustable

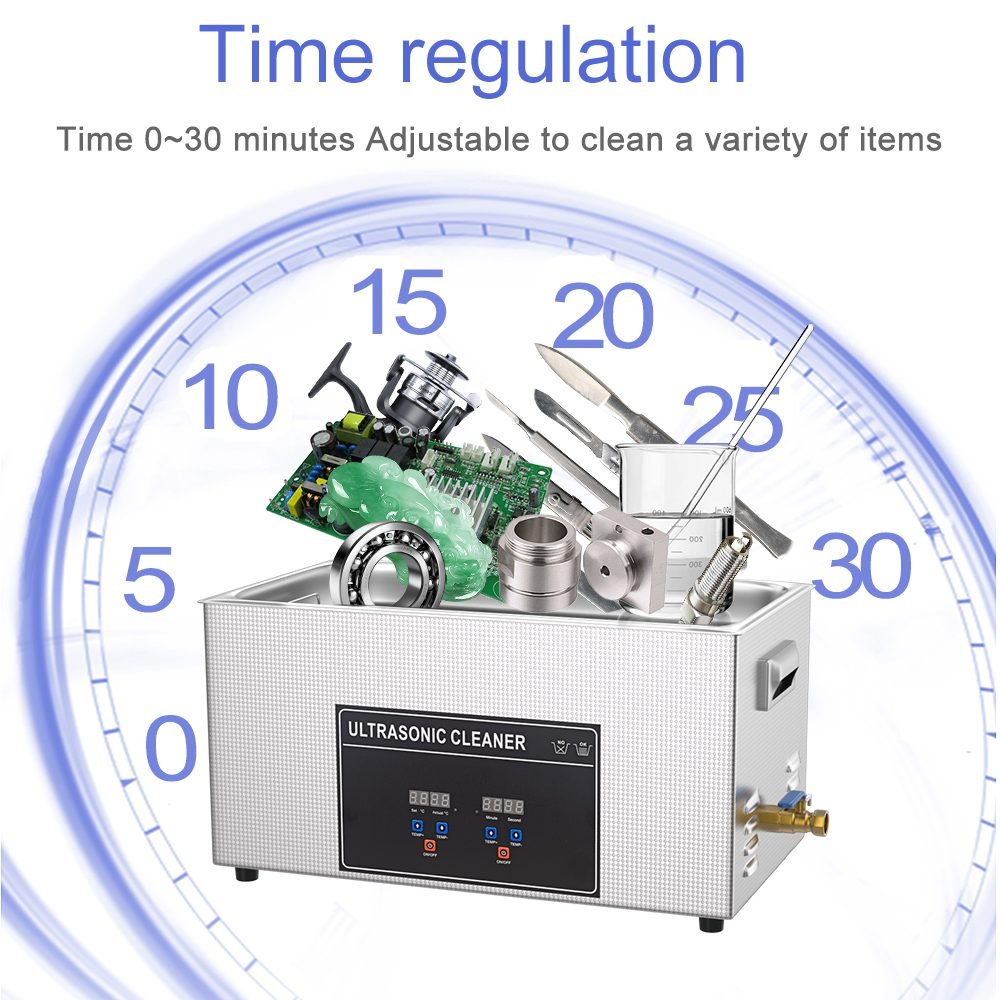

Timer Range
0-30 minutes
Drainage System
Brass drain valve, quick-drain design

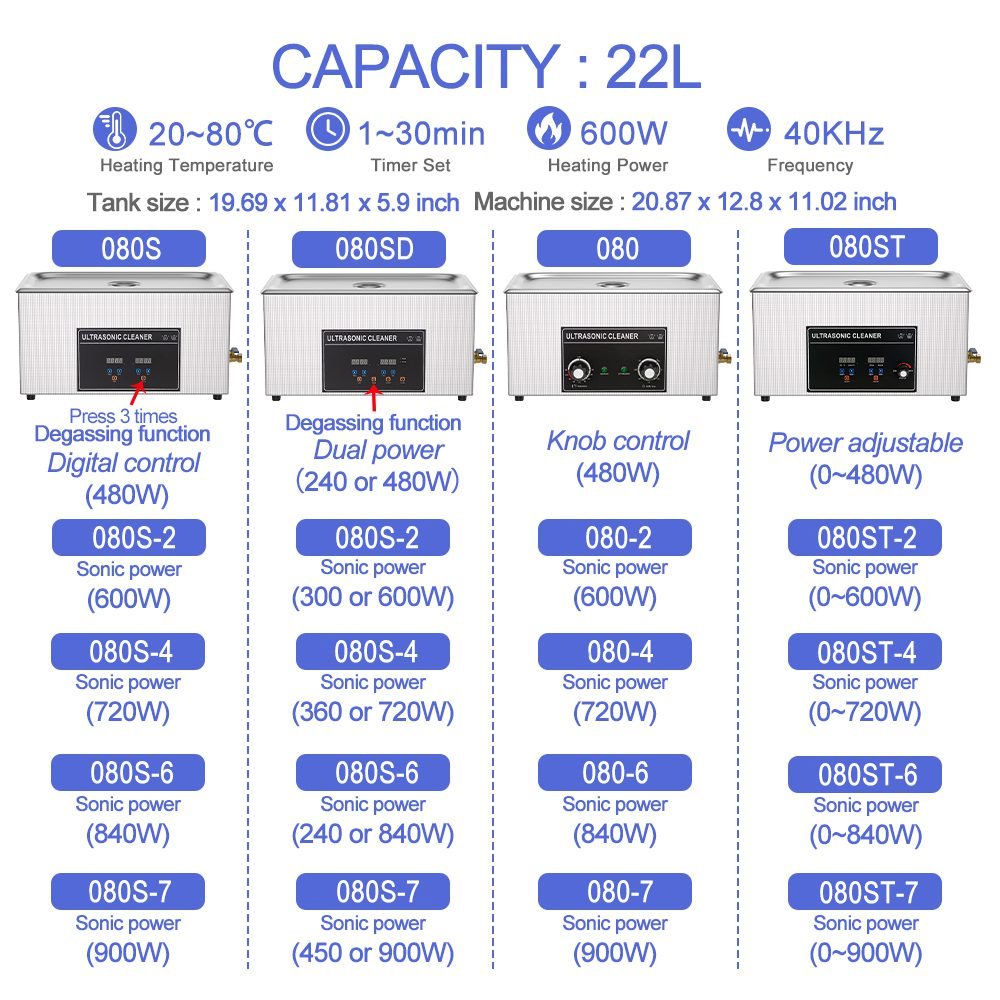

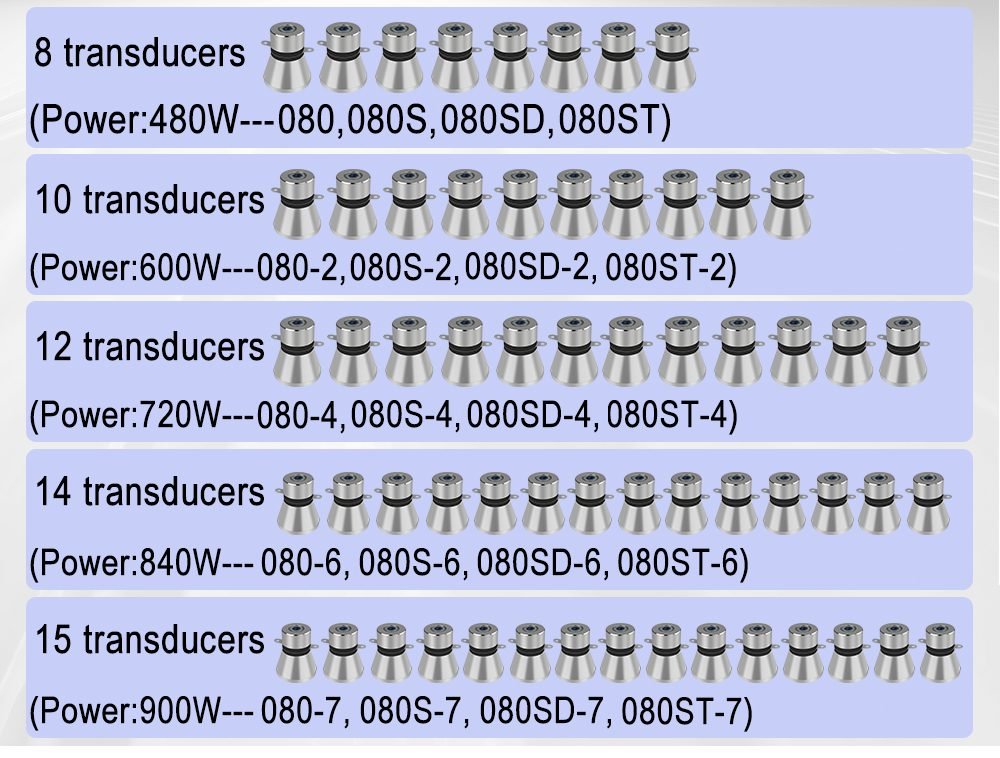

Power Configuration Options
Model Suffix
Number of Transducers
Ultrasonic Power
Standard models
8 units
480W
-2 Series
10 units
600W
-4 Series
12 units
720W
-6 Series
14 units
840W
-7 Series
15 units
900W
Technical Advantages of Small Batch Ultrasonic Cleaner
Advanced Ultrasonic Technology

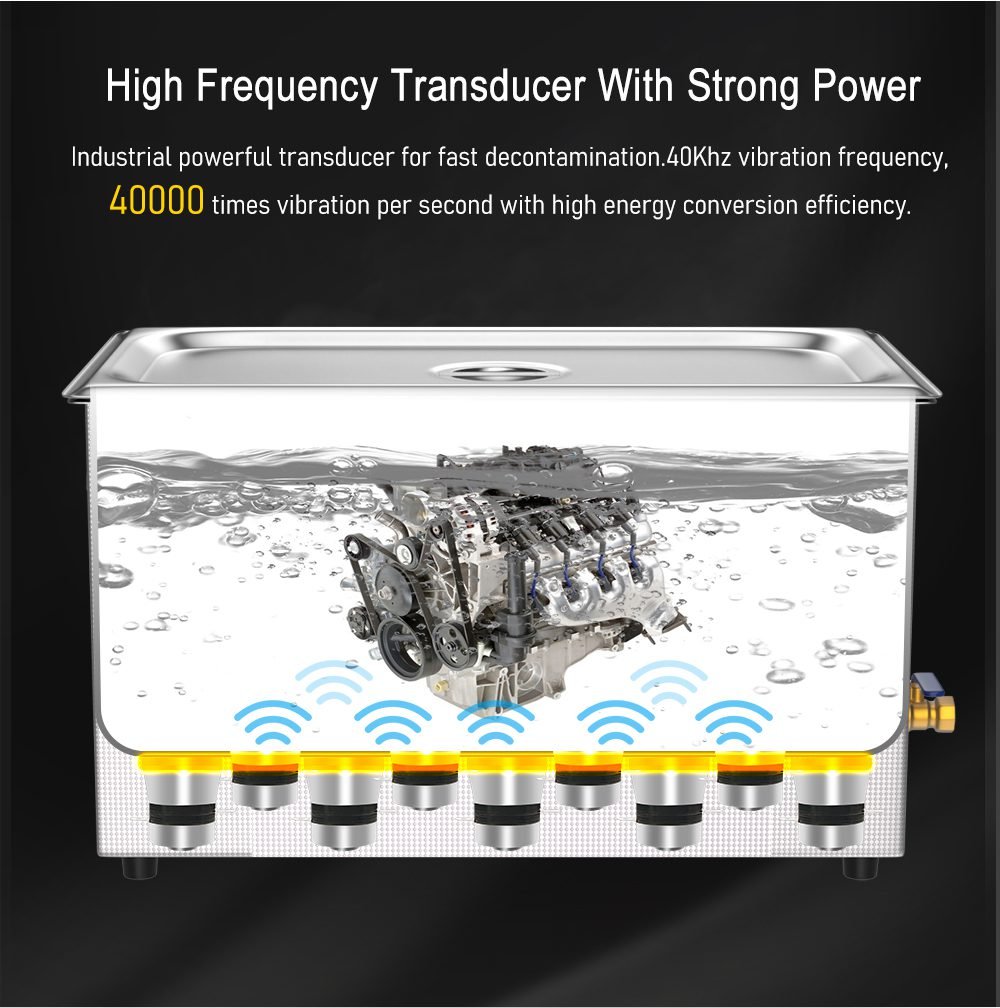

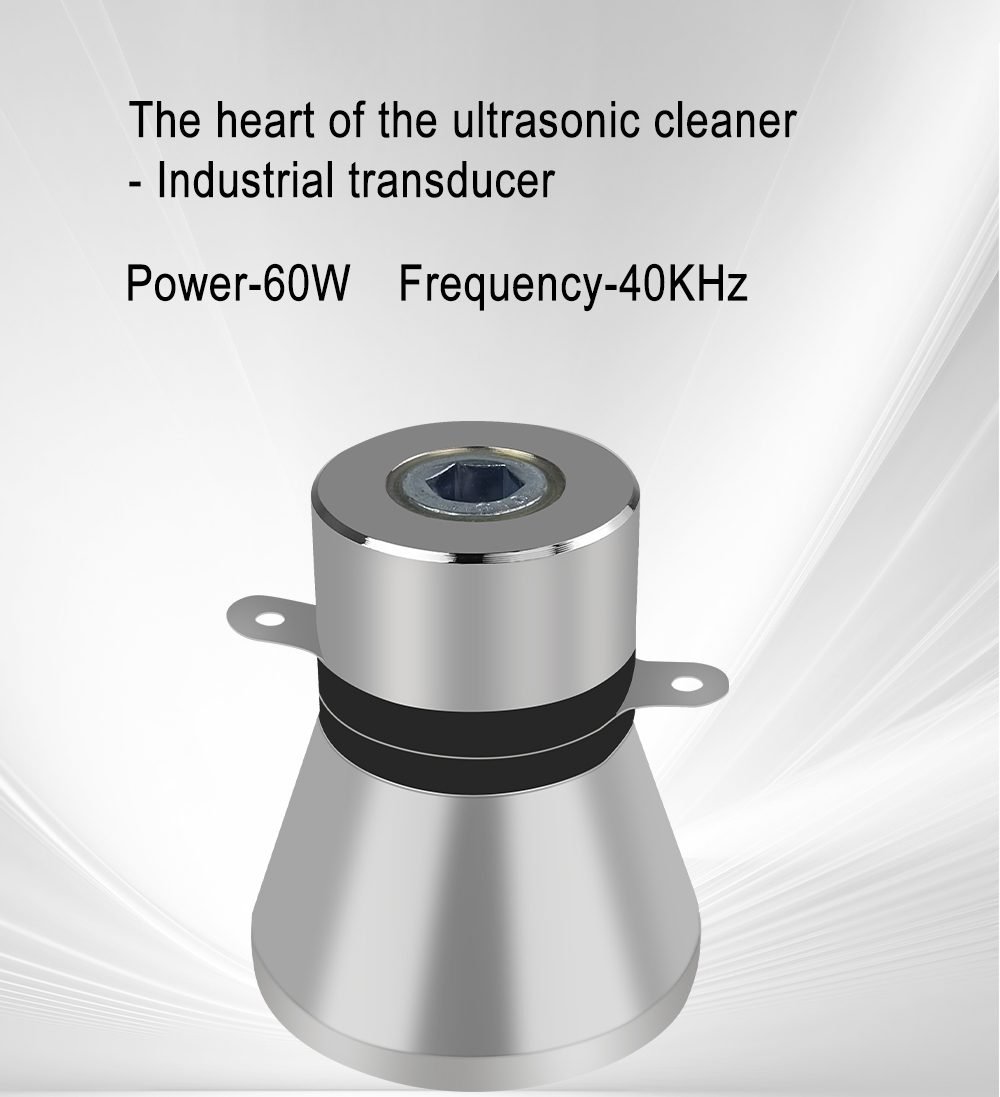

40KHz Industrial Transducers: Optimized for industrial applications, perfect balance between cleaning power and material safety
Uniform Sound Field Distribution: Precisely arranged transducers ensure consistent cleaning throughout the tank
High Energy Conversion Efficiency: Fourth-generation digital generator technology with over 85% energy conversion rate

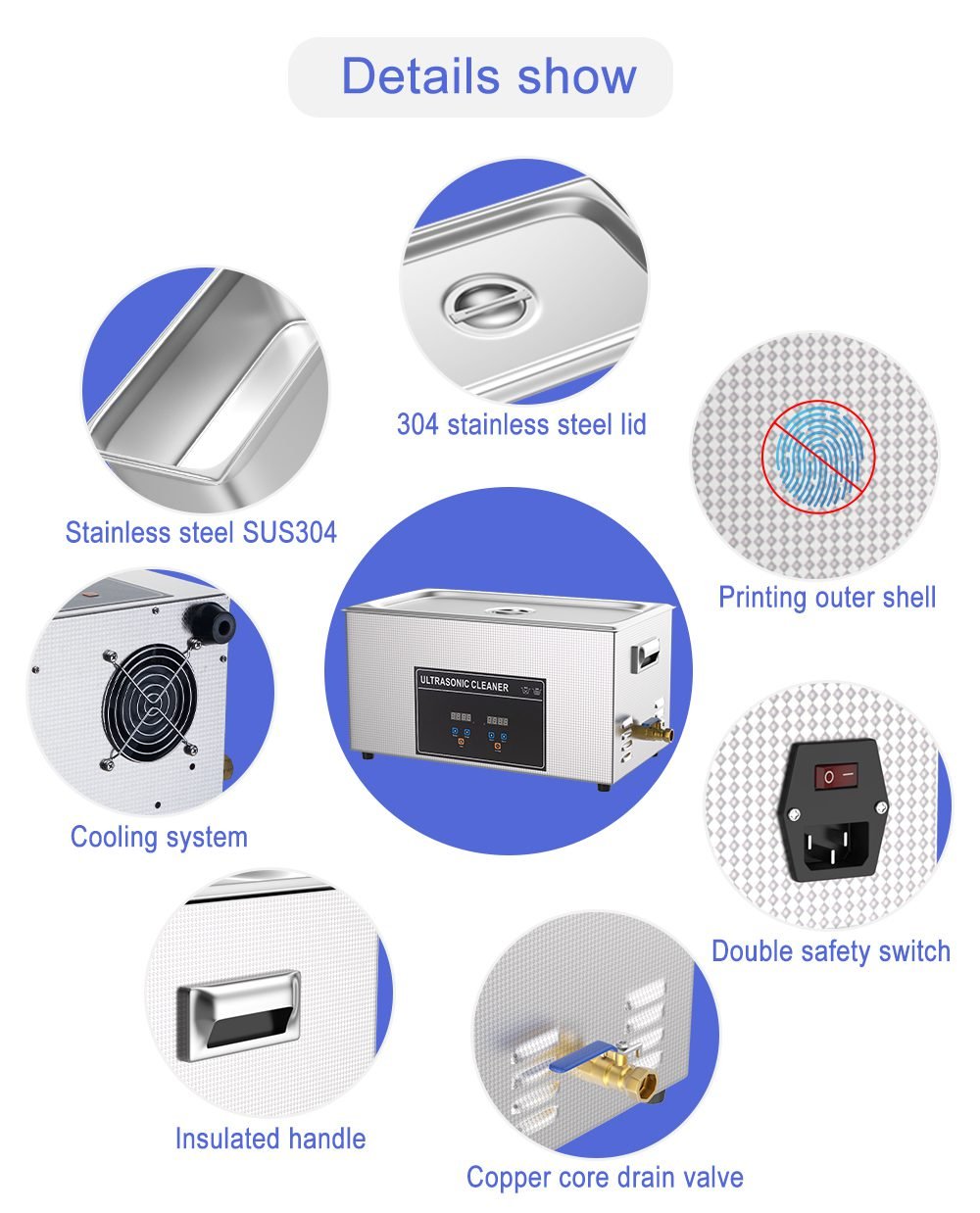

Industrial Durability Design
Full Stainless Steel Construction: 304 stainless steel tank and housing, corrosion-resistant and impact-resistant
Professional Cooling System: Built-in cooling fan supports 24-hour continuous operation
Safety Protection Design: Multiple safety features including double safety switches, overheating protection, leakage protection
Global Market Adaptability
Multi-country Power Options: Support Australian, British, American, European (German standard) plugs
Multi-language Interface: Customizable operation interface in English, German, French, etc.
International Certifications: Complies with CE, RoHS and other international safety standards
Industry Application Solutions of Ultrasonic Cleaner Supplier
Automotive Manufacturing
Applications: Engine components, transmission parts, fuel injection system cleaning
Recommended Models: 080ST-4 or 080SD-6 (720W-840W)
Cleaning Parameters: 60-75°C, 15-25 minutes, using degreasing solutions
Benefits: 5-8 times faster than manual cleaning, micron-level cleaning precision
Electronics Industry
Applications: PCB boards, semiconductor components, connector cleaning
Recommended Models: 080ST or 080SD (480W-600W)
Cleaning Parameters: 40-55°C, 5-10 minutes, using neutral cleaning solutions
Benefits: Effective removal of flux residues, improves product yield by 3-5%
Medical Equipment
Applications: Surgical instruments, dental tools, laboratory equipment
Recommended Models: 080SD Series (with sweep frequency and degas functions)
Cleaning Parameters: 70-80°C, 10-15 minutes, using medical-grade cleaning solutions
Benefits: Meets pre-disinfection standards, reduces cross-contamination risks
Precision Manufacturing
Applications: Watch components, jewelry, optical lenses
Recommended Models: 080S or 080ST (adjustable power)
Cleaning Parameters: 30-45°C, 3-8 minutes, using specialized cleaning solutions
Benefits: Non-damaging cleaning, maintains surface finish quality
Operation & Maintenance Guide of Industrial Cleaning Equipment Chinese Ultrasonic Cleaner
Simple Operation Process
Preparation: Check power supply, install appropriate plug
Fill Liquid: Add appropriate amount of water and cleaning solution to recommended level

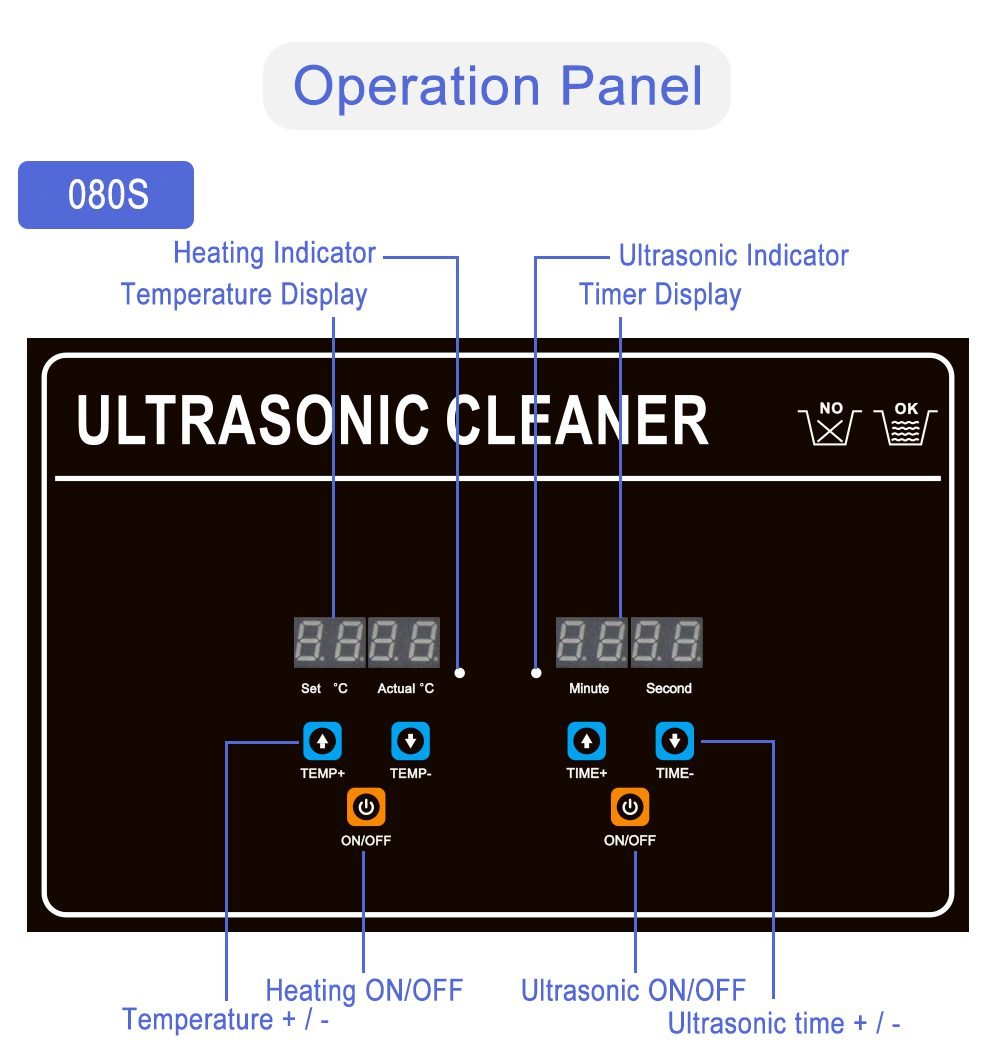

Parameter Setting: Set temperature and cleaning time via control panel
Start Operation: Turn on heating function, start ultrasonic after preheating
Completion: Remove workpieces after timer ends, drain and clean
Maintenance Essentials
Daily Maintenance: Clean tank after each use, regularly check drain valve
Monthly Inspection: Check transducer performance, clean filters
Annual Maintenance: Comprehensive inspection by technical personnel
Troubleshooting
Detailed fault code explanations and solutions
24-hour online technical support
Rapid supply of critical spare parts
Customer Value Analysis of Ultrasonic Cleaners
Value for Distributors
✓ Complete Product Line: Covers full power range from 480W to 900W
✓ Strong Profit Margins: Factory-direct pricing with competitive margins
✓ Flexible Inventory: Supports small batch orders, reduces inventory risk
✓ Strong Technical Support: Comprehensive sales and technical training
✓ Fast Market Adaptation: Quick response to market demand changes
Value for End Users
✓ Improved Cleaning Efficiency: 3-10 times faster than traditional methods
✓ Reduced Operating Costs: Over 70% reduction in labor costs
✓ Consistent Cleaning Quality: Digital control ensures repeatability
✓ Long Equipment Life: Industrial design, 5-8 years service life
✓ Eco-friendly & Energy Saving: 30-40% more efficient than traditional cleaning
Customization Services of Ultrasonic Automotive Injector Cleaner
OEM/ODM Services
Appearance Customization: Housing color, brand logo, control panel design
Function Customization: Special frequency, power, control logic development
Accessory Customization: Special baskets, filtration systems, drying devices
Small Order Policy
Minimum Order Quantity: From 1 unit, sample orders supported
Sample Policy: Discounted sample prices and fast sample delivery
Mixed Orders: Support mixed container shipments of different models
Logistics & Delivery
Standard Delivery: 15-20 working days
Express Service: 10-15 working days (optional)
Logistics Support: FOB, CIF, DDP and various trade terms
